Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot

  • Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot
  • Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot
  • Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot
  • Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
PIP Display Supported Product Category Miniature Reconnaissance Robot
Photo And Video Recording Supported Stealth Capability Silent
Weight Lightweight IR Auxiliary Illumination Supported
Operation Temperature －40℃～+55℃ Voice Monitoring Supported
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Highlight

Reconnaissance Robot Miniature

,

IR Auxiliary Illumination Reconnaissance Robot

,

Voice Monitoring recon robot
Leave a Message
Product Description



 Voice Monitoring /IR Auxiliary Illumination Supported Remote Reconnaissance Robot



APPLICATIONS

Engineered for high-stakes reconnaissance, the R30S can enter operation zones by being thrown into place or by smashing through windows to gain access to interiors. It operates via remote control, positioning itself strategically to observe or confront targets. Its advanced crawler mechanism is built to handle difficult terrains including underground ducts, cave systems, thick vegetation, and grassy fields. With a dual vision system comprising a front thermal imager and a rear visible light sensor, it provides comprehensive visual coverage across all light conditions. The Auxiliary-Support-Arm is designed to right the robot swiftly, ensuring it remains functional in all scenarios.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

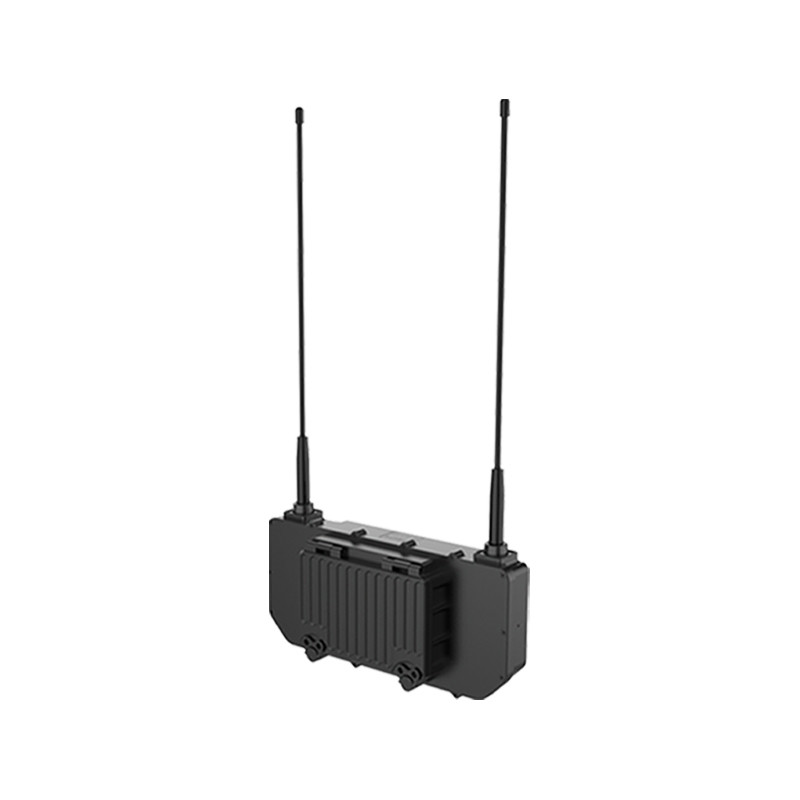

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Voice Monitoring IR Auxiliary Illumination Supported Remote Reconnaissance Robot 0
