All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging

  • All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging
  • All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging
  • All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging
  • All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voice Monitoring Supported Dual-mode Observation Visible Light And Thermal Imaging
Terrain Adaptability All-terrain Operation Temperature －40℃～+55℃
IP Grade ≥IP67 Mobility Remote-controlled
Durability Robust Size Small
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m
Highlight

Reconnaissance Robot Miniature

,

All Terrain Reconnaissance Robot

,

Thermal Imaging recon robot
Leave a Message
Product Description



All-Terrain Miniature Reconnaissance Robot with Visible Light and Thermal Imaging



APPLICATIONS

The R30S reconnaissance robot is designed to be small and agile, capable of being deployed by throwing it into the operational area or by breaking through windows to conduct interior reconnaissance. With remote control capabilities, it can discreetly approach targets, waiting for the opportune moment or taking proactive measures. Its versatile crawler design allows it to traverse complex terrains such as underground pipes, caves, jungles, and grasslands effortlessly. The robot’s "dual vision" system, consisting of a thermal imaging sensor at the front and a visible light sensor at the rear, enables it to capture both thermal imaging video and visible light images in low light conditions, ensuring effective reconnaissance in all lighting environments. Additionally, the Auxiliary-Support-Arm helps it quickly recover from capsizing, maintaining its operational readiness.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

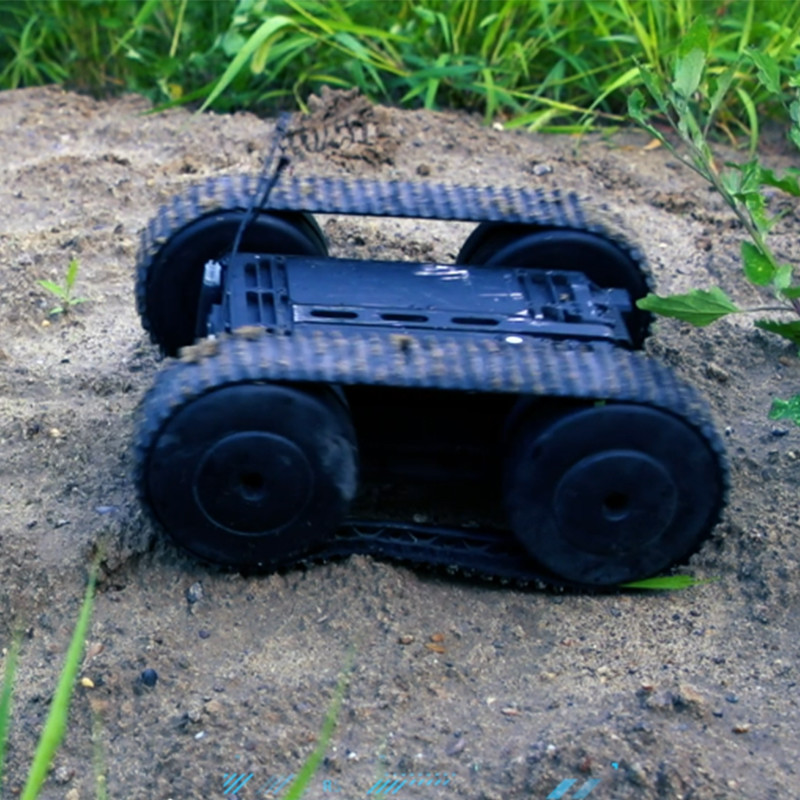

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

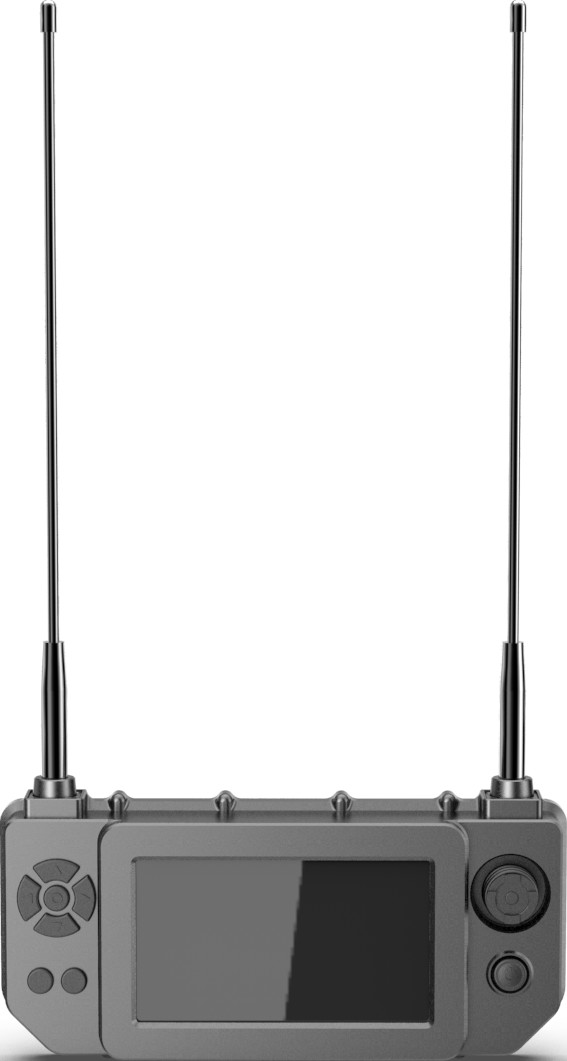

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

All Terrain Miniature Reconnaissance Robot With Visible Light And Thermal Imaging 0
