Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability

  • Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability
  • Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability
  • Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability
  • Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Terrain Adaptability All-terrain Stealth Capability Silent
Photo And Video Recording Supported PIP Display Supported
Weight Lightweight Size Small
Voice Monitoring Supported Durability Robust
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Miniature Surveillance Robot

,

Remote Controlled Surveillance Robot

,

All Terrain mobile surveillance robot
Leave a Message
Product Description



Remote-Controlled Miniature Surveillance Robot With All-Terrain Adaptability​



APPLICATIONS

The R30S is a compact reconnaissance robot with a wheel-track composite design, capable of entering scenes by being thrown or by breaking windows to perform indoor missions. Remote control allows it to approach targets quietly, either waiting for the right moment or initiating an attack. Its crawler design adapts to various complex terrains, ensuring smooth navigation through underground pipes, caves, jungles, and grasslands. Featuring a unique "dual vision" system with a thermal imaging sensor in the front and a visible light sensor in the rear, it can capture both thermal imaging video and visible light images in low light, making it effective for day and night reconnaissance. Additionally, an Auxiliary-Support-Arm helps it quickly right itself if it capsizes, ensuring continuous operation.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;

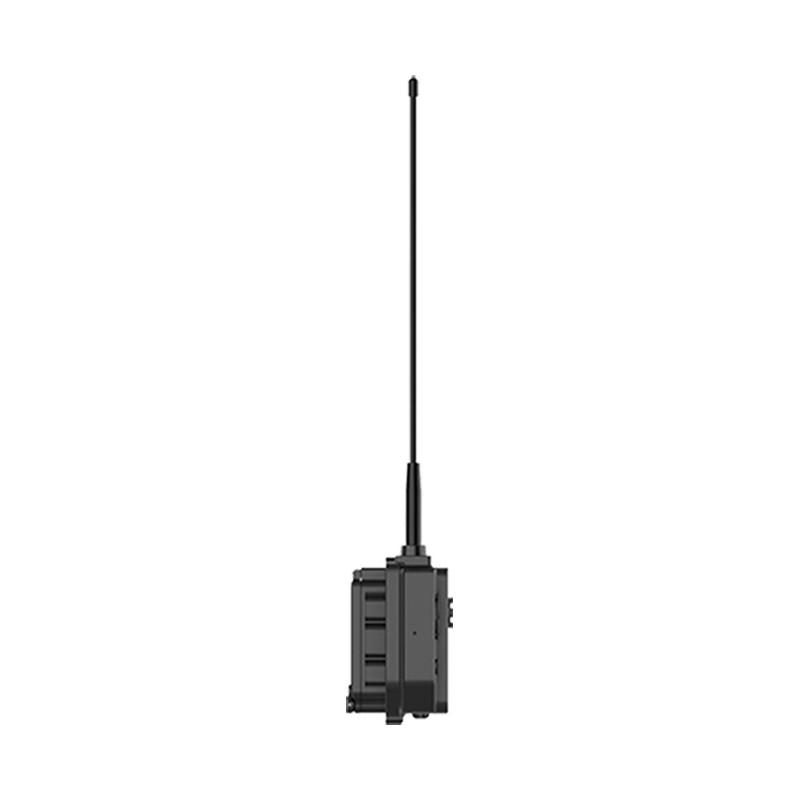

2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Remote Controlled Miniature Surveillance Robot With All Terrain Adaptability 0
