Compact Design Powerful Performance Ocelot Miniature Recon Robot

  • Compact Design Powerful Performance Ocelot Miniature Recon Robot
  • Compact Design Powerful Performance Ocelot Miniature Recon Robot
  • Compact Design Powerful Performance Ocelot Miniature Recon Robot
  • Compact Design Powerful Performance Ocelot Miniature Recon Robot
Place of Origin China
Brand Name Particle
Model Number R30S
Minimum Order Quantity 1
Price $27,160
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight Lightweight Size Small
Terrain Adaptability All-terrain Durability Robust
Stealth Capability Silent Mobility Remote-controlled
Robot Weight ≤3kg（Including Battery） Daytime Detection Distance 50m, Recognition Distance 20m;
Night Detection Distance 25m, Recognition Distance 10m Horizontal FOV ≥60°
Overcoming Obstacles ≥10cm Climbing ≥35°
Drop Height ≥4m Working Time ≥2h
CCD Resolution 1/3in，720×576 IR Resolution 384×288@17μm
Driving Capability Foliage, Sandy Slopes, Wading Controller Working Time ≥3.5h
Controller Weight ≤1.2kg（Including Battery） Memory Card 32G（Build In）
Control Method Joystick + Button Remote Control Outdoor ≥350m
Remote Control Indoor ≥50m IP Grade ≥IP67
Operation Temperature －40℃～+55℃
Highlight

Ocelot recon robot

,

Small recon robot

,

Lightweight surveillance robot
Leave a Message
Product Description



Compact Design Powerful Performance Ocelot Miniature Reconnaissance Robot



APPLICATIONS

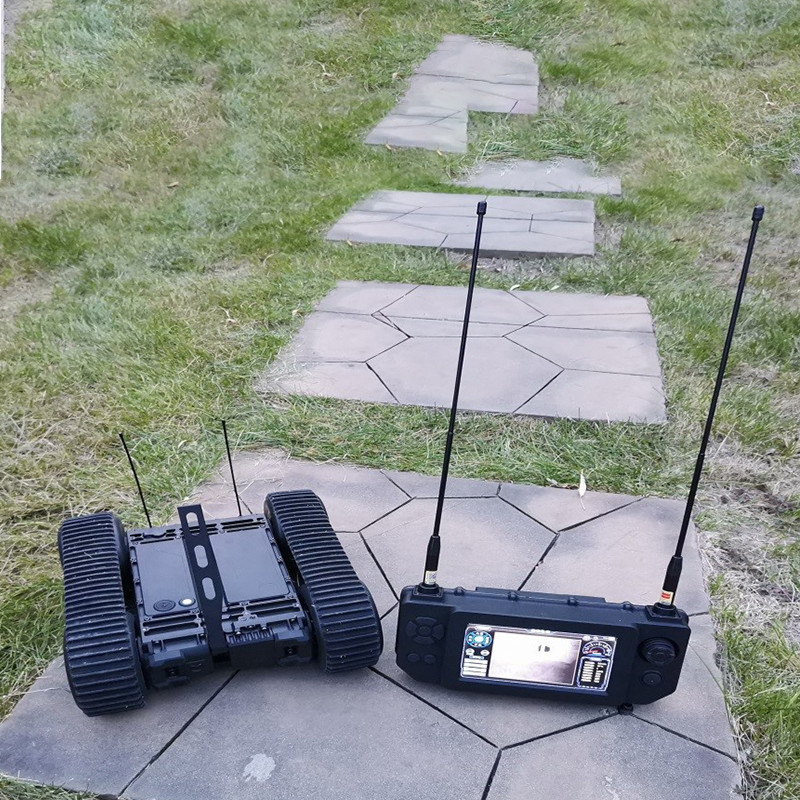

The R30S is an advanced small wheel-track reconnaissance robot, designed to be deployed by being thrown into the operational area or by breaking windows to access interior spaces for reconnaissance missions. Remote control allows it to approach targets stealthily, waiting for the right moment or taking proactive actions. Its crawler design enables it to navigate various challenging terrains, including underground pipes, caves, jungles, and grasslands. The robot features a "dual vision" system with a front thermal imaging sensor and a rear visible light sensor, allowing it to capture both thermal imaging video and visible light images in low light, ensuring effective reconnaissance in any lighting condition. Additionally, an Auxiliary-Support-Arm helps it quickly right itself if it capsizes, maintaining its operational capabilities.



FUNCTION

►The dual-mode observation with visible light and thermal imaging
►Support IR auxiliary illumination
►Four thermal imaging display modes: white heat,black heat, false color, and outline
►Display of PIP(picture-in-picture)
►Voice monitoring
►Support photo and video recording, local browsing and export
►Can adjust the display brightness
►Support 3-speed change



Features

► Adopt wheel-crawler composite design, showing excellent through performance
► "Double-view"design,free switching between visible light observation mode and thermal imaging observation mode
► Unique arm design,quickly adjust the posture of the body
► Strong impact-resistant design,can be thrown to the target area

► Ultra waterproof performance, excellent wading ability


Technical Parameters:



1. Robot
(1)Weight ≤3kg(Including battery);
(2)Daytime Detection distance 50m, recognition distance 20m;
(3)Night Detection distance 25m, recognition distance 10m;
(4)Horizontal FOV ≥60°;
(5)Overcoming Obstacles ≥10cm;
(6)Climbing ≥35°;
(7)Drop Height ≥4m;
(8)Working Time ≥2h;
(9)CCD Resolution 1/3in,720×576;
(10)IR Resolution 384×288@17μm;
(11)Capable of driving in foliage, sandy slopes and wading;
2.Controller
(1)Working Time ≥3.5h;
(2)Weight ≤1.2kg(Including battery);
(3)Memory Card 32G(Build in);
(4)Control Method: Joystick + button;
3. Remote Control
(1)Outdoor ≥350m;
(2)Indoor ≥50m;
4.IP grade ≥IP67;
5.Operation Temperature －40℃～+55℃.



R30S Details

Compact Design Powerful Performance Ocelot Miniature Recon Robot 0
