Product Details
Feature 4 Excellent Audio Monitoring Capabilities Technical Parameter 14 Working Temperature: -25℃～+55℃
Feature 5 Clear And Smooth Video Size Small
Function 1 Capable Of Enter Designated Areas Or Buildings By Throwing To Perform Monitoring Tasks Technical Parameter 2 Working Time: ≥2h
Technical Parameter 5 Speed: ≥0.65m/s Technical Parameter 11 Storage Capacity: 32G(built-in)
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Definition Miniature Reconnaissance Robot

,

100m Miniature Reconnaissance Robot

,

OLED Screen Miniature Reconnaissance Robot
Leave a Message
Product Description



Outdoor Communication Ability of ≥100m Definition OLED Screen Miniature Reconnaissance Robot



Applications

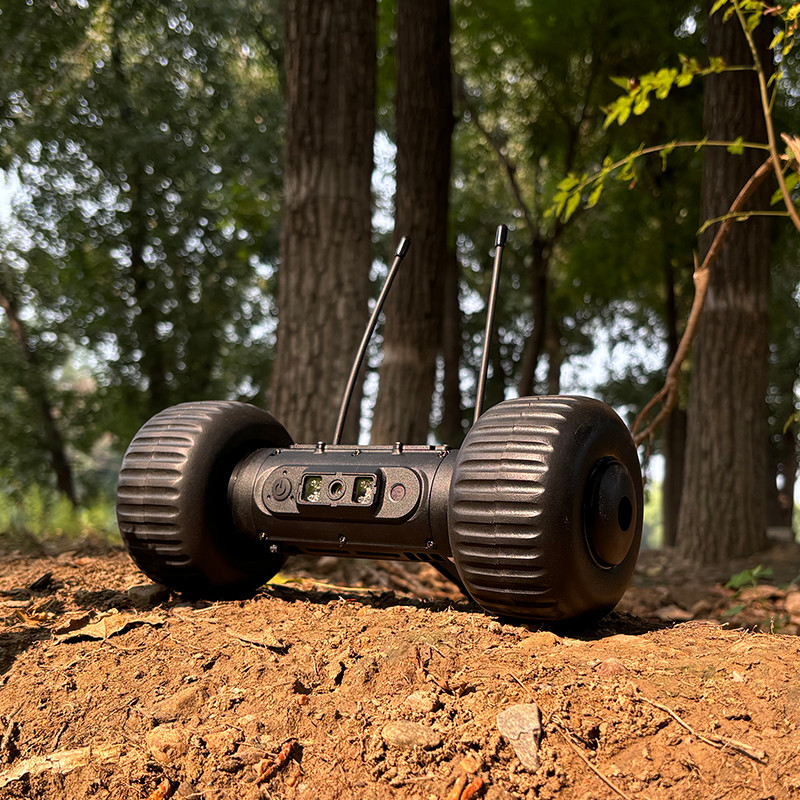

The JP-R10 is a small, throwable wheeled robot designed for reconnaissance in tight spaces where larger robots fail. Its robust design allows it to be thrown into predetermined areas or through glass windows to conduct interior searches under operator control. The robot features a high-definition camera and infrared lighting for clear vision in low-light environments. Its high-performance image transmission system ensures seamless video and audio delivery to the operator, enabling precise situational assessment and timely action.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；

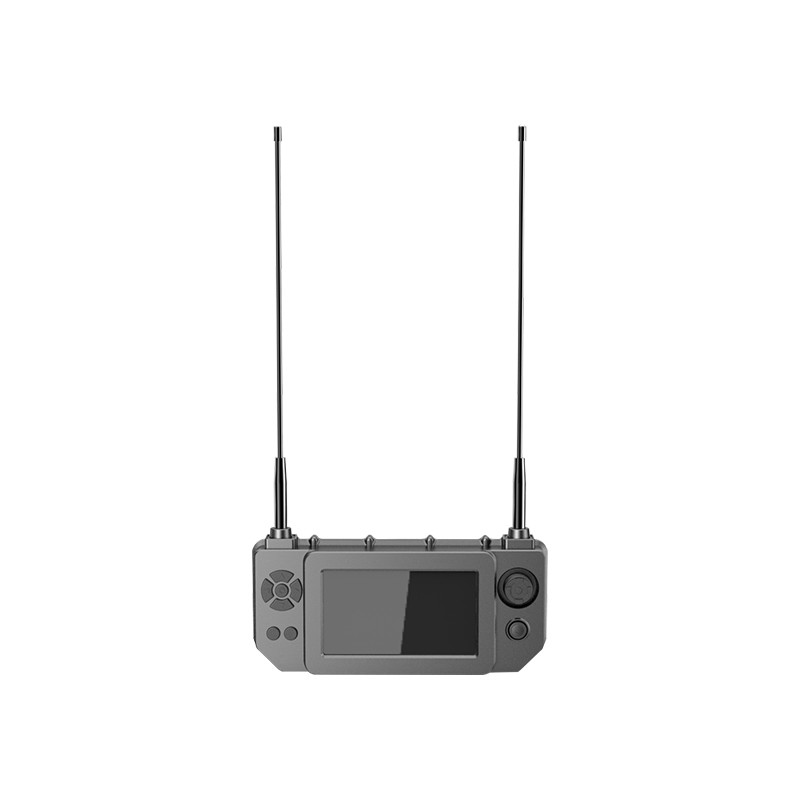

2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details
