Light Weight Miniature Reconnaissance Robot for Monitoring Tasks

  • Light Weight Miniature Reconnaissance Robot for Monitoring Tasks
  • Light Weight Miniature Reconnaissance Robot for Monitoring Tasks
  • Light Weight Miniature Reconnaissance Robot for Monitoring Tasks
  • Light Weight Miniature Reconnaissance Robot for Monitoring Tasks
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technical Parameter 12 Communication Ability Indoor: ≥50m Technical Parameter 9 Controller Working Time: ≥3.5h
Technical Parameter 3 Maximum Throwing Distance: 9m(vertical),20m (horizontal) Product Category Miniature Reconnaissance Robot
Camera Resolution High Definition Size Small
Power Source Battery Technical Parameter 2 Working Time: ≥2h
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Light Weight Miniature Reconnaissance Robot

,

Monitoring Tasks Miniature Reconnaissance Robot
Leave a Message
Product Description



Light Weight Miniature Reconnaissance Robot for Monitoring Tasks



Applications

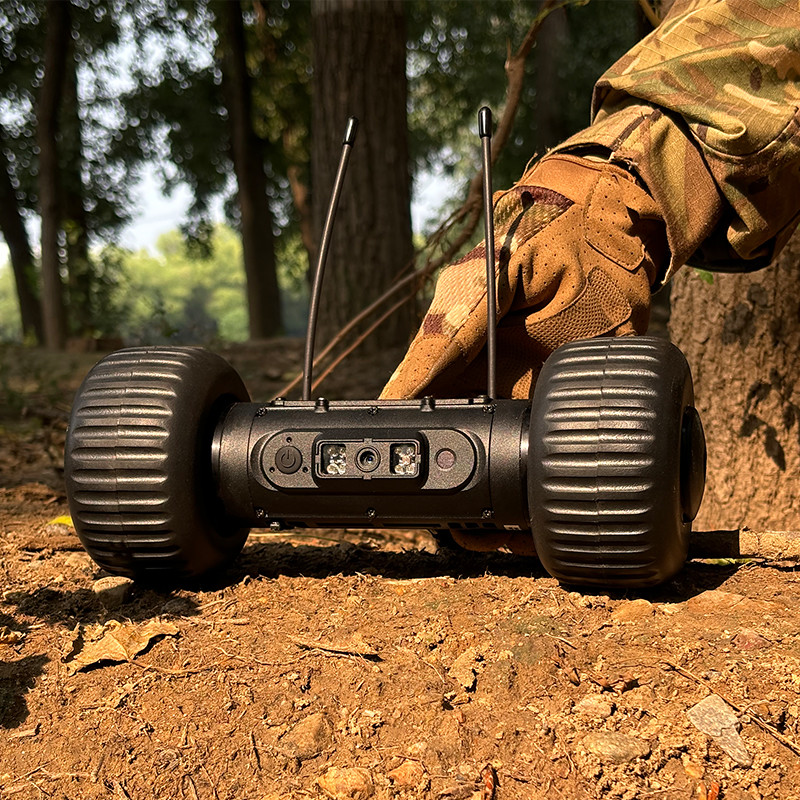

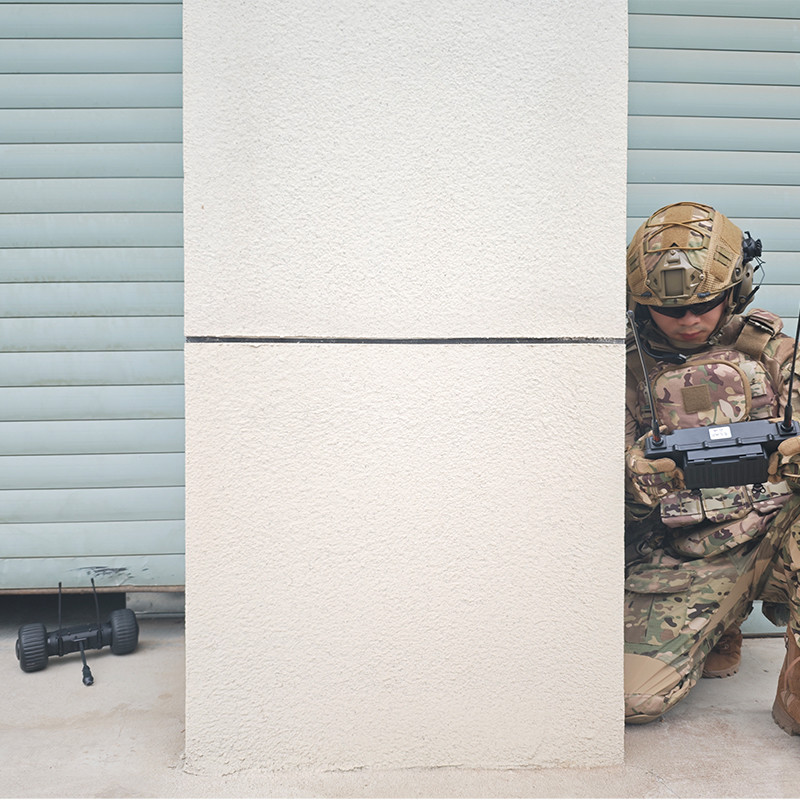

The JP-R10 is a compact, wheeled robot designed for reconnaissance missions in spaces where medium and large robots cannot operate. Its durable, impact-resistant design enables it to be thrown to designated areas or through windows to access buildings. Featuring a high-definition camera and IR lighting, it offers clear vision even in low-light environments. The high-performance image transmission system ensures that video and audio from the scene are transmitted smoothly to the operator’s display, facilitating timely and informed decision-making by the commander.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；

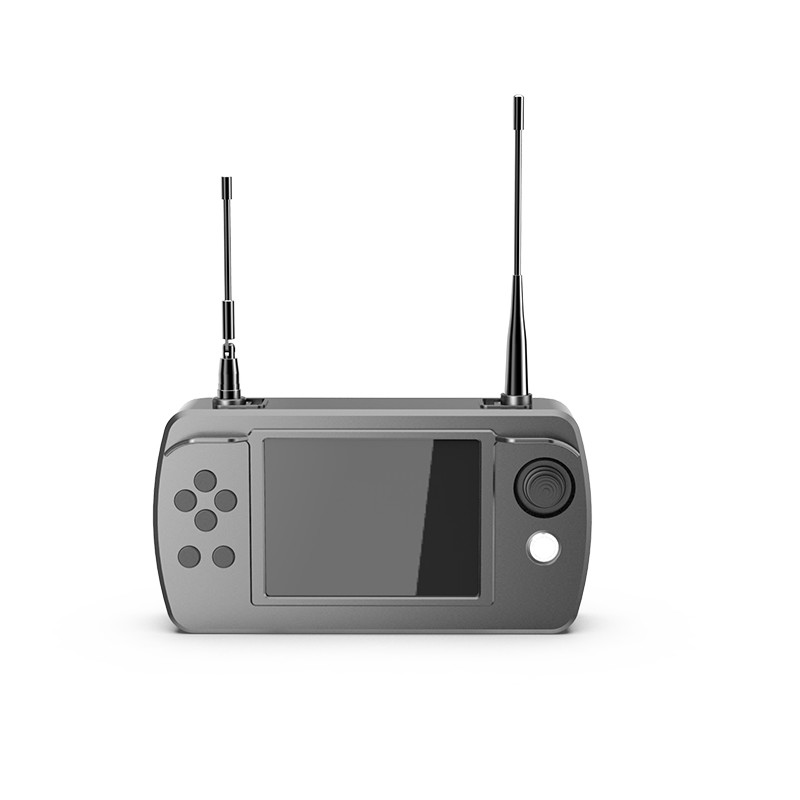

2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details

Light Weight Miniature Reconnaissance Robot for Monitoring Tasks 0
