Miniature Reconnaissance Robot with Surveillance Technology

  • Miniature Reconnaissance Robot with Surveillance Technology
  • Miniature Reconnaissance Robot with Surveillance Technology
  • Miniature Reconnaissance Robot with Surveillance Technology
  • Miniature Reconnaissance Robot with Surveillance Technology
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Technical Parameter 12 Communication Ability Indoor: ≥50m Feature 7 Remote Control Distance Is Longer "Joystick + Button" Control Mode
Camera Resolution High Definition Technical Parameter 4 Maximum Climbing Angle: 25°
Feature 6 5.5-inch High-definition OLED Screen Technical Parameter 15 IP Grade: IP66
Feature 2 Can Be Used Even At Night Or Low Light Function 5 It Has The Function Of Taking Photos And Videos, Which Can Be Browsed Or Exported To Other Storage Devices
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Surveillance Technology Miniature Reconnaissance Robot

,

Surveillance Miniature Reconnaissance Robot

,

Surveillance Technology Reconnaissance Robot
Leave a Message
Product Description


Miniature Reconnaissance Robot with Surveillance Technology



Applications

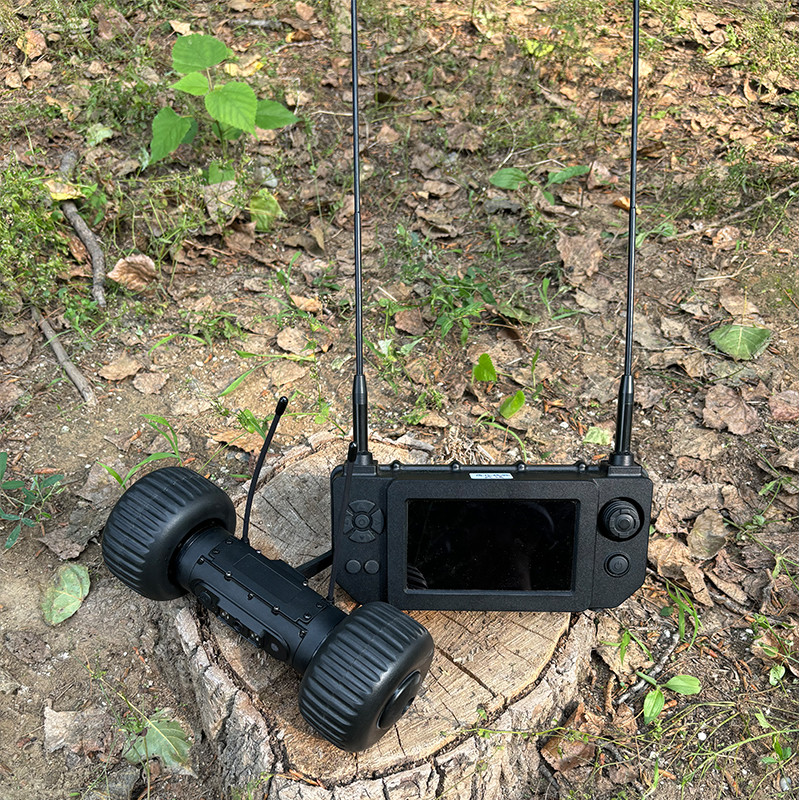

The JP-R10 is a versatile, throwable small wheeled robot designed for reconnaissance and surveillance in spaces inaccessible to medium and large robots. Its super impact-resistant design allows it to be thrown to predetermined areas or to break through glass windows to enter buildings. Controlled remotely by an operator, the JP-R10 can search for targets with precision. It is equipped with a high-definition camera and an IR lighting set, enabling clear visibility even in low light conditions. The high-performance image transmission radio station ensures that video and audio from the scene are transmitted clearly and smoothly to the controller’s display, allowing commanders to accurately assess the situation and take timely action.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；

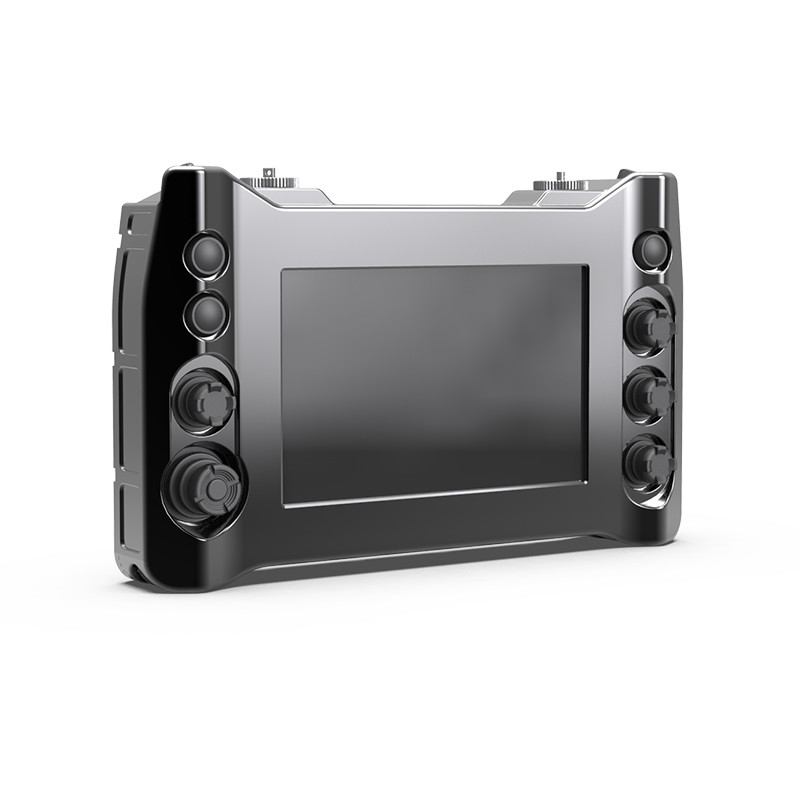

2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details

Miniature Reconnaissance Robot with Surveillance Technology 0
