Maximize Surveillance Capabilities with Miniature Reconnaissance Robot

  • Maximize Surveillance Capabilities with Miniature Reconnaissance Robot
  • Maximize Surveillance Capabilities with Miniature Reconnaissance Robot
  • Maximize Surveillance Capabilities with Miniature Reconnaissance Robot
  • Maximize Surveillance Capabilities with Miniature Reconnaissance Robot
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feature 3 Ultra-low Walking Noise Technical Parameter 12 Communication Ability Indoor: ≥50m
Technical Parameter 1 Weight: ≤1kg Technical Parameter 11 Storage Capacity: 32G(built-in)
Technical Parameter 5 Speed: ≥0.65m/s Technical Parameter 2 Working Time: ≥2h
Size Small Function 4 Support IR Auxiliary Illumination
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Miniature Reconnaissance Robot

,

Surveillance Capabilities Miniature Reconnaissance Robot

,

Surveillance Capabilities Reconnaissance Robot
Leave a Message
Product Description

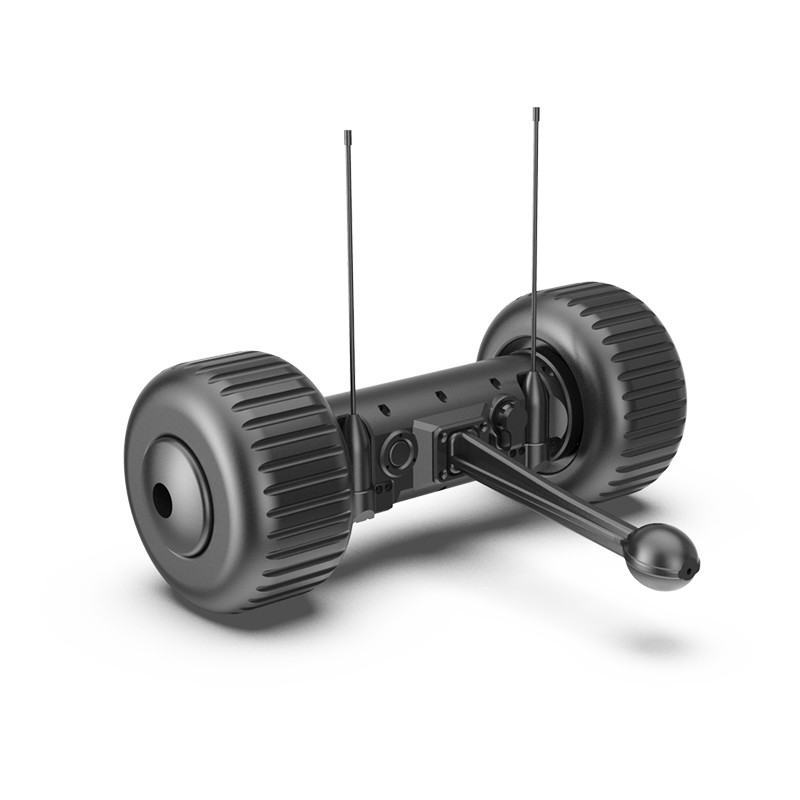

Maximize Surveillance Capabilities with Miniature Reconnaissance Robot



Applications

The JP-R10 is a robust small wheeled robot capable of being thrown into action for reconnaissance and surveillance in confined spaces where larger robots cannot operate. Engineered with a super impact-resistant design, the JP-R10 can be thrown to reach specific areas or break through glass to enter buildings, performing detailed searches under operator control. Outfitted with a high-definition camera and IR lighting, it excels in low-light environments, providing clear imagery. The high-performance image transmission radio station delivers seamless video and audio to the controller’s display, giving commanders real-time insight into the scene, enabling informed decisions and prompt actions.



Function

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；
2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；

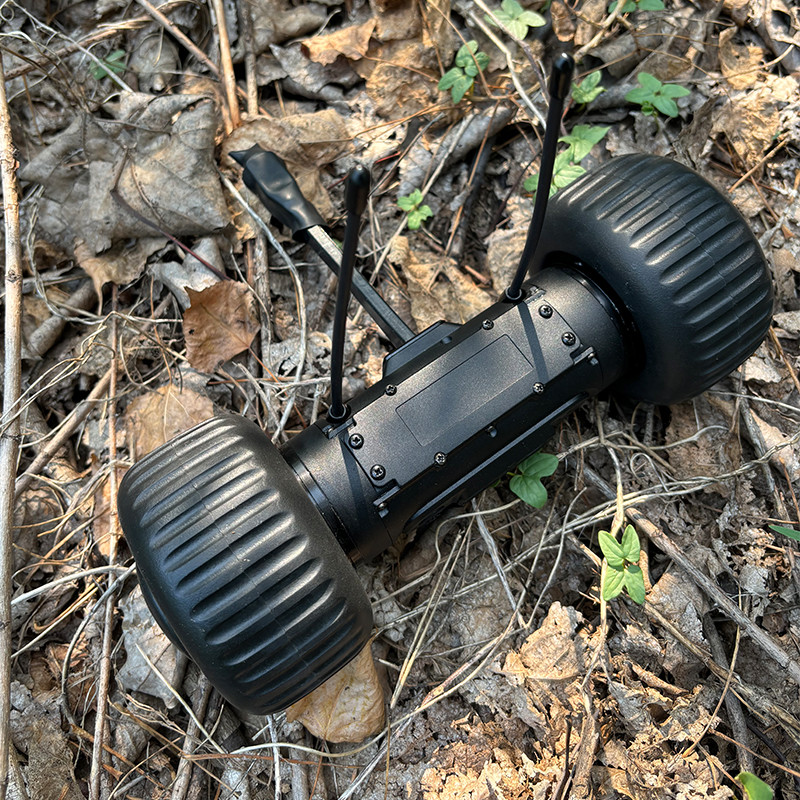

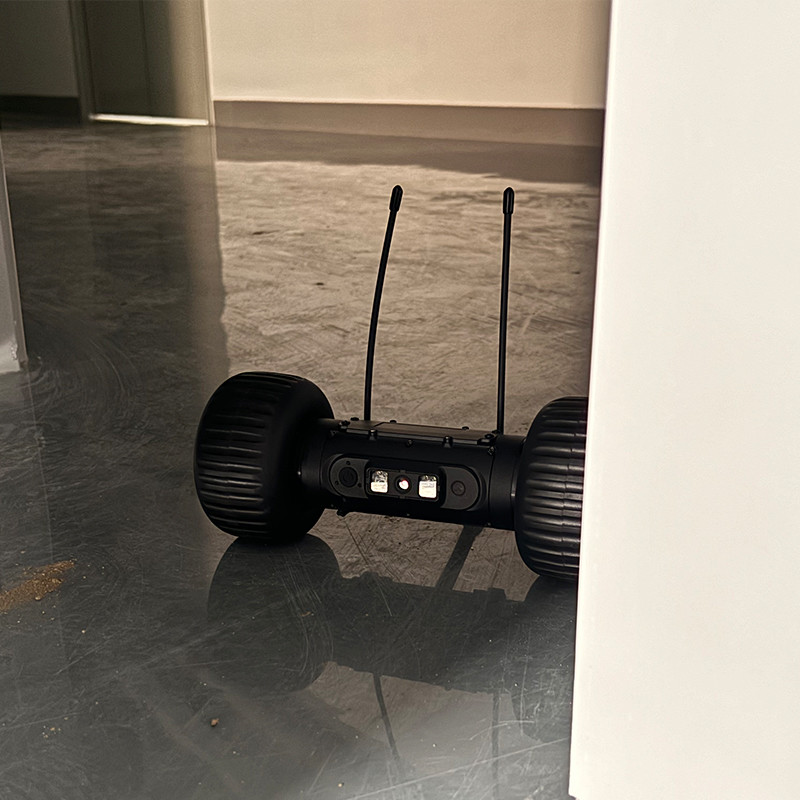

JP R10 Details

Maximize Surveillance Capabilities with Miniature Reconnaissance Robot 0
