Compact Wheeled Reconnaissance And Surveillance Robot
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | R10 |
| Minimum Order Quantity | 1 |
| Price | $13,717 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Robot Weight | ≤1kg | Power Source | Battery |
|---|---|---|---|
| Robot Working Time | ≥2h | Maximum Throwing Distance | 9m(vertical)，20m (horizontal) |
| Maximum Climbing Angle | 25° | Speed | 0.65m/s |
| IR Illumination | ≥7m | Daytime Recognition | ≥40m（human） |
| Monitor Ability | The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly | COMS Resolution | 1/3in,2560×1440 |
| Controller Working Time | ≥3.5h | Controller Weight | ≤1.1kg（with Battery） |
| Storage Capacity | 32G（built-in） | Operation | Joystick + Button |
| Communication Ability Indoor | ≥50m | Communication Ability Outdoor | ≥100m |
| Working Temperature | -25℃～+55℃ | IP Grade | IP66 |
| Highlight | Compact Wheeled surveillance robot,Reconnaissance surveillance robot,100m smart surveillance robot |
||
Product Description

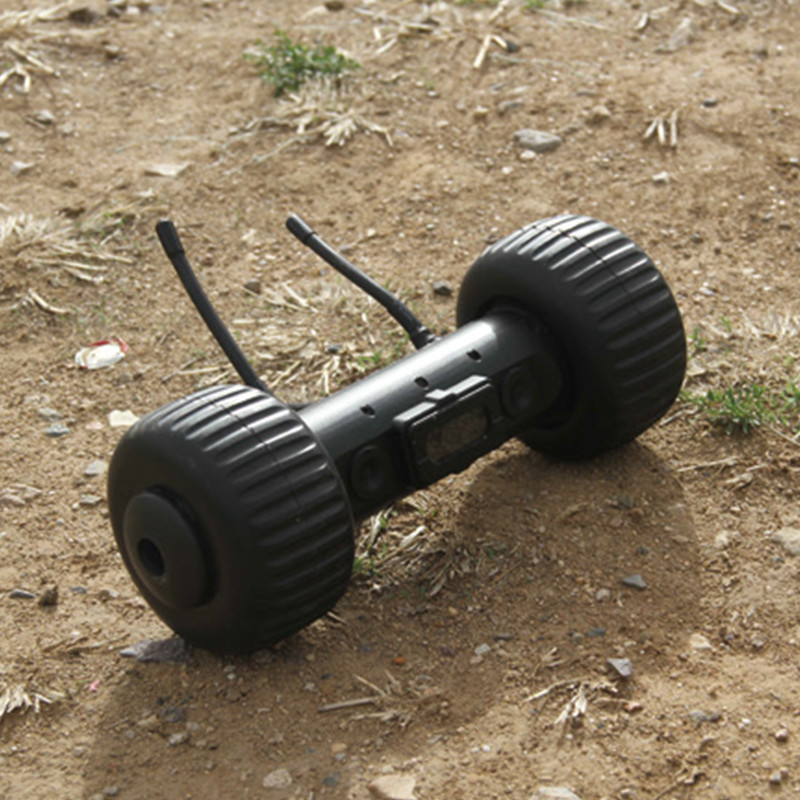

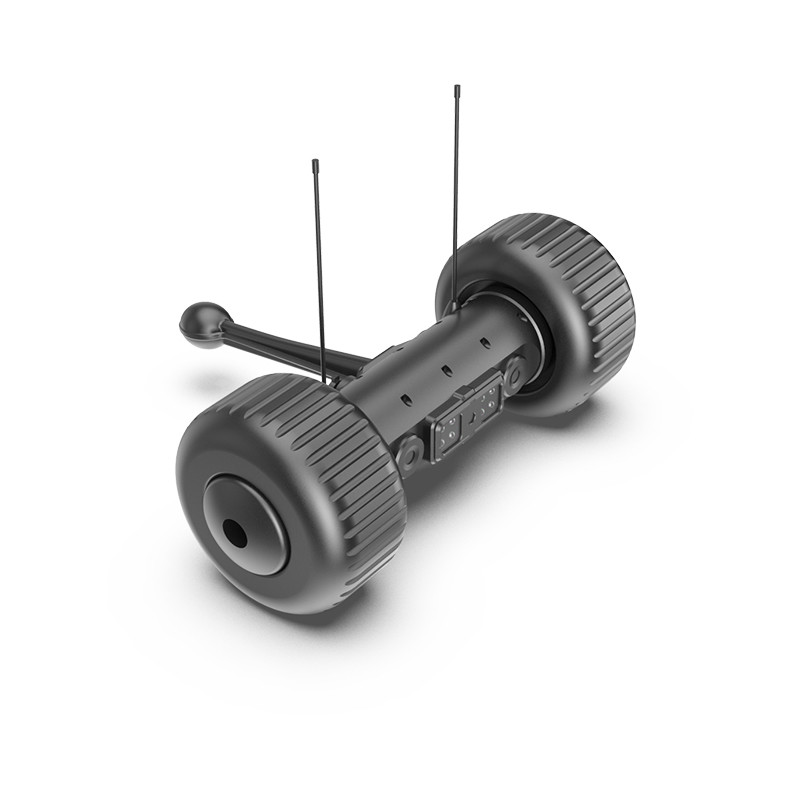

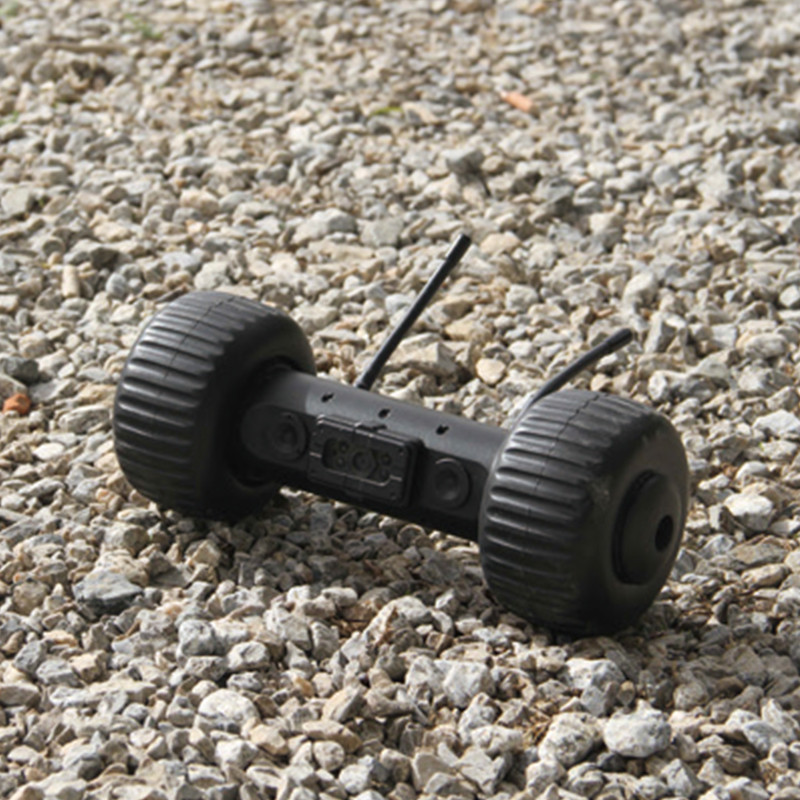

Compact Wheeled Reconnaissance and Surveillance Robot
Description and Features
The JP-R10 is a compact and robust wheeled robot, designed for reconnaissance and surveillance tasks in demanding environments. Its impact-resistant construction allows the JP-R10 to be thrown into target areas or through windows to infiltrate buildings, where operators can use it to identify and monitor threats. Equipped with a high-definition camera and infrared (IR) lighting, the JP-R10 offers clear visuals even in low-light conditions. Its advanced image transmission system ensures smooth video and audio delivery, enabling commanders to make informed, real-time decisions during operations.
The JP-R10 weighs ≤1 kg and is designed to be both lightweight and durable. It can operate for ≥2 hours on a single charge and withstands being thrown up to 9 meters vertically or 20 meters horizontally. With a maximum speed of ≥0.65 m/s and an IR illumination range of ≥7 meters, it provides exceptional functionality in various environments. Its audio capabilities allow for clear monitoring of sounds up to 60 decibels within a 3-meter range, while its video system features a 1/3-inch COMS sensor with a resolution of 2560×1440.
Durable Lightweight Design — Rugged Performance with a Lightweight Design
The "Durable Lightweight Design" ensures the robot can endure harsh environments while maintaining ease of transport, offering both strength and mobility for enhanced operational effectiveness.
Excellent Audio Monitoring Capabilities — Provides Precise Sound Detection in Challenging Environments
The "Excellent Audio Monitoring Capabilities" feature allows the robot to accurately detect and interpret sound, ensuring reliable performance even in complex and noisy surroundings.
Day and Night Operation — Operates in Low Light or at Night
The "Day and Night Operation" functionality enables the robot to perform seamlessly in both daylight and nighttime conditions, ensuring continuous and reliable operation regardless of ambient light.
Ultra Quiet — Ultra-Low Walking Noise
With the "Ultra Quiet" system, the robot operates with minimal noise, making it ideal for missions where stealth and silent movement are critical to success.
High-Definition Video — Clear, Smooth Playback for an Enhanced Experience
The "High-Definition Video" feature delivers crisp and fluid video playback, providing operators with clear and reliable visuals for accurate monitoring and decision-making.
5.5-Inch High-Definition OLED Display — Vivid Visuals with Sharp Detail
The "5.5-Inch High-Definition OLED Display" presents sharp, vibrant visuals, allowing users to view important data and live video feeds with exceptional clarity and precision.
Extended Remote Control Range — Increased Operational Range for Greater Flexibility
The "Extended Remote Control Range" allows for broader operational coverage, enabling the robot to be controlled from greater distances while maintaining full functionality and reliability.
Graphically Dual-Mode Control — With Graphical Touch and Joystick Operation
The "Graphically Dual-Mode Control" system provides flexibility in operation, combining both graphical touch and joystick interfaces to offer users a smooth and versatile control experience.
Applications
 |
Image Gallery
|
|
|
Technical Parameters
| Robot | |
|
Weight |
≤1kg |
|
Working Time |
≥2h |
|
Maximum Throwing Distance |
9m(vertical),20m (horizontal) |
|
Maximum Climbing Angle |
25° |
|
Speed |
≥0.65m/s |
|
IR Illumination |
≥7m |
|
Daytime Recognition |
≥40m(human) |
|
Monitor Ability |
The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly |
|
COMS Resolution |
1/3in,2560×1440 |
| Controller | |
|
Working Time |
≥3.5h |
|
Weight |
≤1.1kg(with battery) |
|
Storage Capacity |
32G(built-in) |
|
Operation |
Joystick + button |
| Communication Ability | |
|
Indoor |
≥50m |
|
Outdoor |
≥100m |
| Environmental Adaptability | |
|
Working Temperature |
-25℃～+55℃ |
|
IP grade |
IP66 |
