TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance

  • TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance
  • TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance
  • TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance
  • TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance
Place of Origin China
Brand Name Particle
Model Number R10
Minimum Order Quantity 1
Price $13,717
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Control Method Remote Control Weight ≤1kg
Camera Resolution High Definition Power Source Battery
Size Small Shockproof Yes
Robot Weight ≤1kg Robot Working Time ≥2h
Maximum Throwing Distance 9m(vertical)，20m (horizontal) Maximum Climbing Angle 25°
Speed 0.65m/s IR Illumination ≥7m
Daytime Recognition ≥40m（human） Monitor Ability The Ambient Noise Is Not Greater Than 45 Decibels, And The Voice Information Of 60 Decibels Within A Range Of 3 Meters Can Be Heard Clearly
COMS Resolution 1/3in,2560×1440 Controller Working Time ≥3.5h
Controller Weight ≤1.1kg（with Battery） Storage Capacity 32G（built-in）
Operation Joystick + Button Communication Ability Indoor ≥50m
Communication Ability Outdoor ≥100m Working Temperature -25℃～+55℃
IP Grade IP66
Highlight

Small Wheeled Scout Robot

,

Surveillance Scout Robot

,

TinyMole Scout Robot
Leave a Message
Product Description

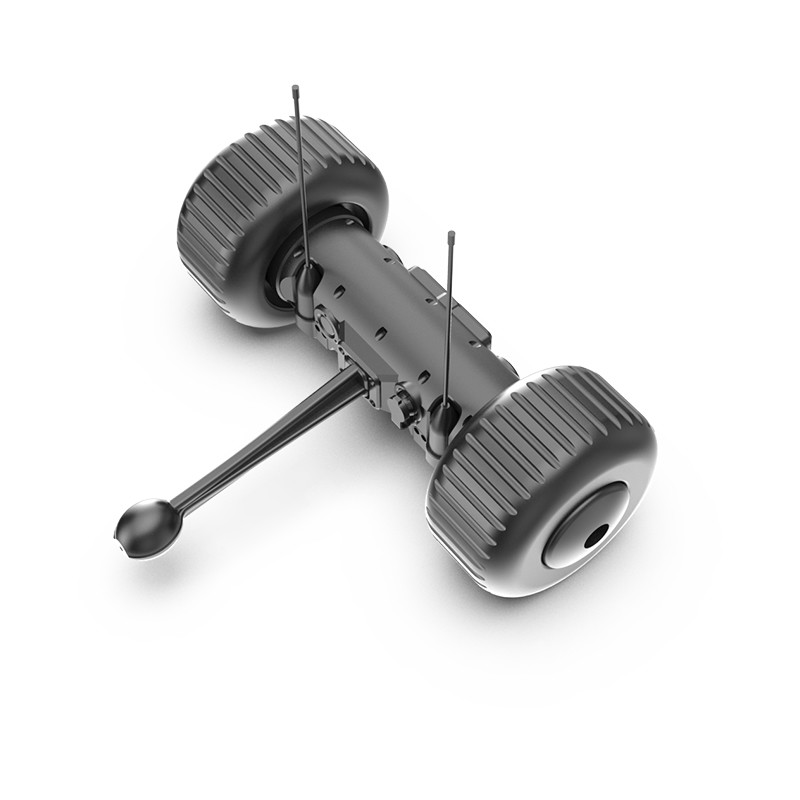

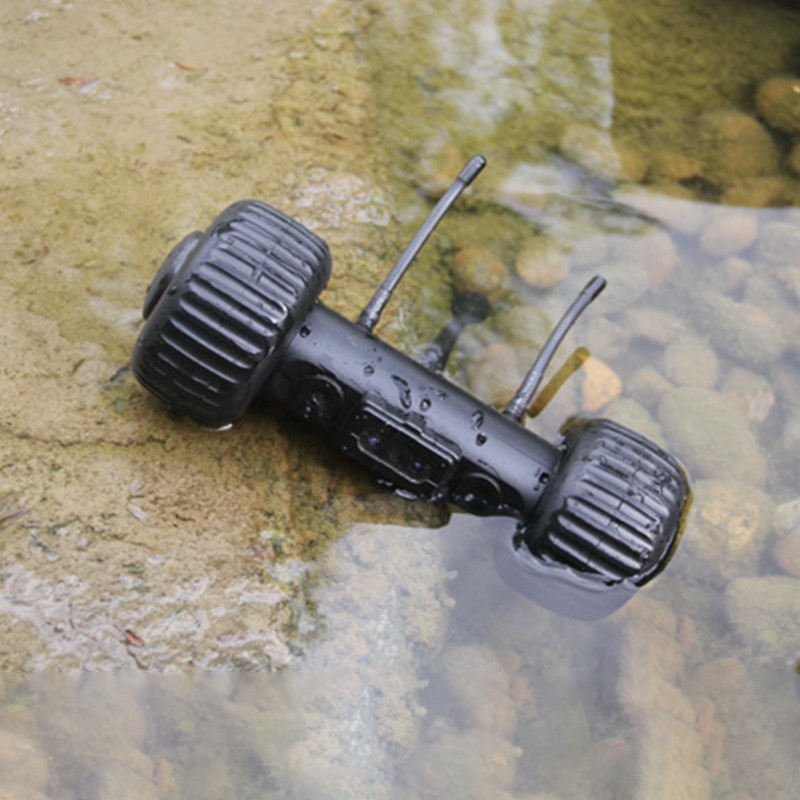

TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance



Applications

The R10 robot is a compact and resilient wheeled robot engineered for effective reconnaissance and surveillance in tight spaces where larger robots cannot operate. Its super impact-resistant design allows it to be thrown to reach targeted areas or break through windows to enter buildings. The JP-R10 is equipped with a high-definition camera and an IR lighting system, ensuring it can provide clear visuals even in low-light conditions. Its advanced image transmission radio station delivers real-time video and audio to the operator’s display, enabling precise situational awareness and timely decision-making. The JP-R10 is ideal for operations requiring quick deployment, robust performance, and reliable intelligence gathering in challenging environments.



Function

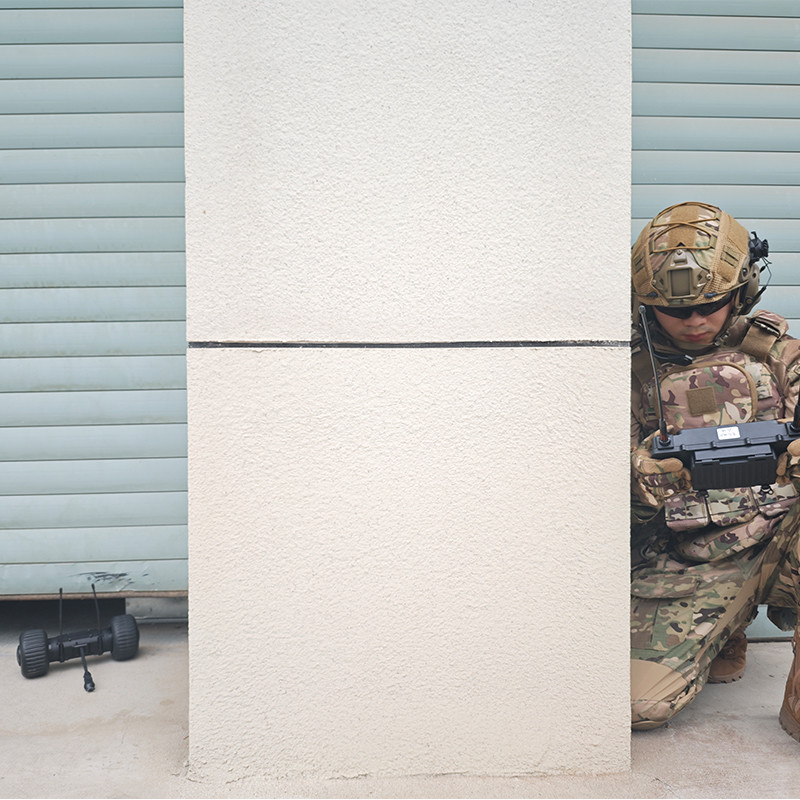

► Capable of enter designated areas or buildings by throwing to perform monitoring tasks
► Support audio and video monitoring (listening) functions
► Support digital zoom function
► Support IR auxiliary illumination
► It has the function of taking photos and videos, which can be browsed or exported to other storage devices


Features

► Rugged body while maintaining light weight
► Can be used even at night or low light
► Ultra-low walking noise
► Excellent audio monitoring capabilities
► Clear and smooth video
► 5.5-inch high-definition OLED screen
► Remote control distance is longer "Joystick + button" control mode

Technical Parameters:
1. Robot
Weight ≤1kg；
Working Time ≥2h；
Maximum Throwing Distance 9m(vertical),20m (horizontal)；
Maximum Climbing Angle 25°；
Speed ≥0.65m/s；
IR Illumination ≥7m；
Daytime Recognition ≥40m(human)
Monitor Ability The ambient noise is not greater than 45 decibels, and the voice information of 60 decibels within a range of 3 meters can be heard clearly；
COMS Resolution 1/3in,2560×1440；
2. Controller
Working Time ≥3.5h；
Weight ≤1.1kg(with battery)
Storage Capacity 32G(built-in)
Operation Joystick + button；
3. Communication Ability
Indoor ≥50m；
Outdoor ≥100m；
4. Environmental Adaptability
Working Temperature -25℃～+55℃；
IP grade IP66；



JP R10 Details

TinyMole Scout Small Wheeled Robot For Reconnaissance And Surveillance 0
