Portable Through Wall Radar For High Performance Radar Technology

  • Portable Through Wall Radar For High Performance Radar Technology
  • Portable Through Wall Radar For High Performance Radar Technology
  • Portable Through Wall Radar For High Performance Radar Technology
Place of Origin China
Brand Name Particle
Model Number TW16
Price $11,619
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Working Frequency ≤4GHz Working Time ≥8h
Detection Range ≥±60°（H），≥±45°（V） Dynamic Target Recognition Probability ≥95%
Boot Time ＜2s Weight ≤650g（Batteries Included）
Detection Distance For Brick Wall（24cm） , Static Targets：≥15 M，moving Targets：≥30 M Effective Detection Time ≤2s（Moving Target），≤10s（Static Target）
Deviation ±0.5m Rear Anti-Interference Distance ≤2m
Power Supply 18650 Type Battery，Support For Direct Charging Of External Power Operation Temperature -40℃～+55℃
IP Grade IP67
Highlight

Portable through wall radar

,

IP67 through wall radar

,

through wall radar systems
Leave a Message
Product Description

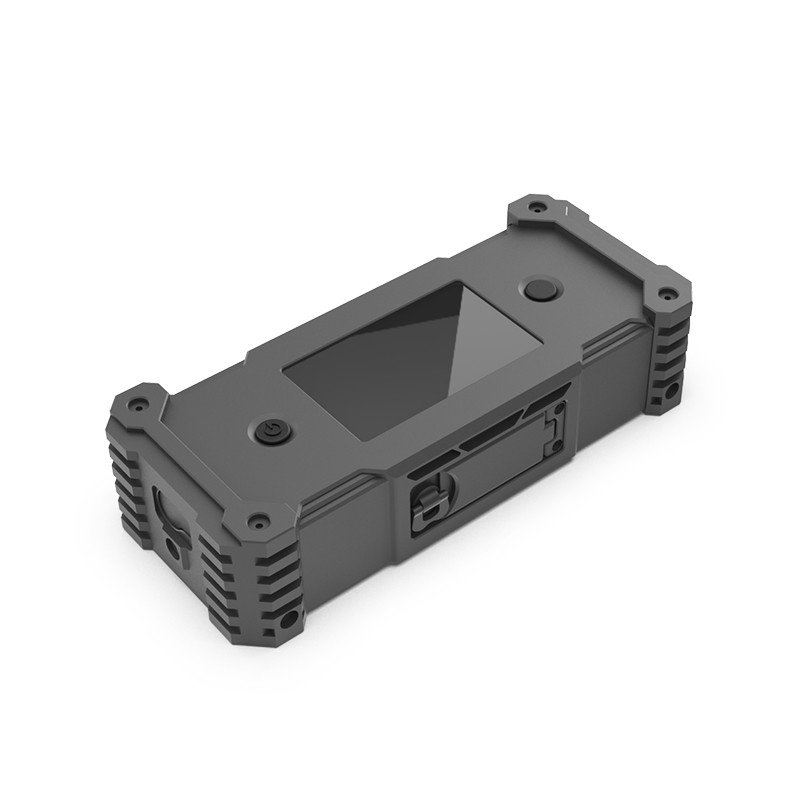

Portable Through-Wall Radar For High-Performance Radar Technology


Applications

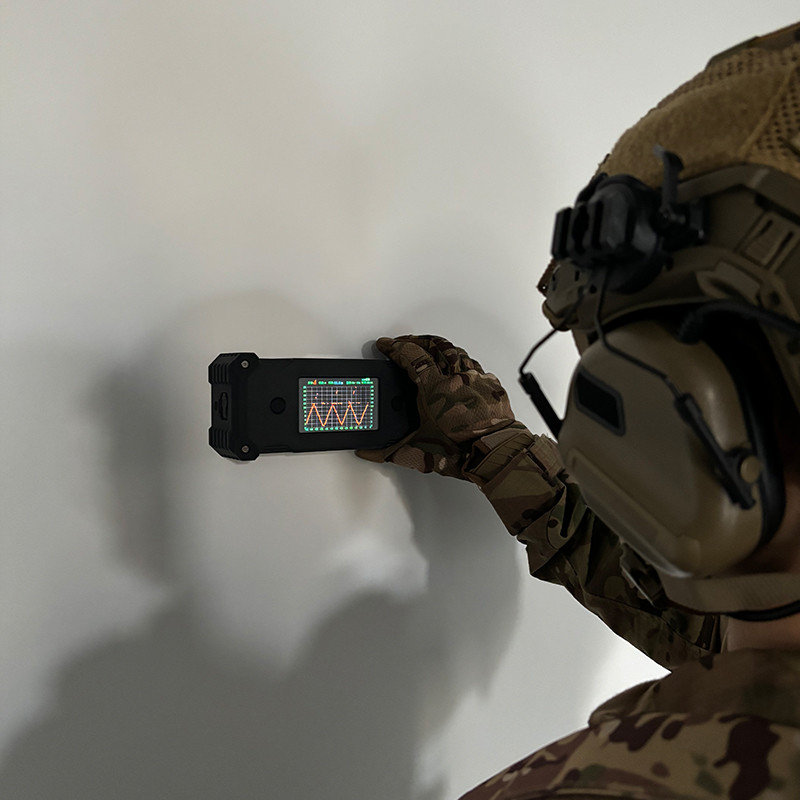

The JP TW16 portable through-wall detection radar employs ultra-wideband radar technology to identify static and dynamic targets behind various barriers using electromagnetic wave signals. This device excels in penetrating non-metallic walls, capturing minute movements like breathing and heartbeat. Advanced software processing converts these radar signals into a display showing target distances and movement patterns. This technology is invaluable in anti-terrorism missions, urban warfare, and law enforcement, providing real-time insights into hidden targets' movements, thus aiding in strategic planning and reducing risks.



Functionality

The JP TW16 detects both static and dynamic targets behind walls, inside buildings, or under floors, providing feedback on the distance and movement characteristics of the target.



Features

  • Compact Structure: Easy for single-person carry and operation.
  • Strong Penetration: Capable of penetrating common wall materials such as bricks, soil, and wooden boards.
  • Real-Time Display: Rapid detection and display of target movements.
  • High Anti-Interference: Effectively filters out background noise to identify targets.
  • Rugged and Durable: Waterproof, stain-proof, and highly adaptable to various environments.



Technical Parameters:
Boot Time ＜2s；
Working Frequency ≤4GHz；
Weight ≤650g(Batteries included)；
Detection Range ≥±60°(H),≥±45°(V)；
Effective Detection Time ≤2s(Moving target),≤10s(Static target)；
Deviation ±0.5m；
Dynamic Target Recognition Probability ≥95%；
Rear Anti-Interference Distance ≤2m；
Power Supply 18650 type battery,Support for direct charging of external power；
Working Time ≥8h；
Operation Temperature -40℃～+55℃；
IP Grade IP67



JP TW16 Details

Portable Through Wall Radar For High Performance Radar Technology 0
