Strong Penetration Handheld Through Wall Detection Radar With Battery Power Source

  • Strong Penetration Handheld Through Wall Detection Radar With Battery Power Source
  • Strong Penetration Handheld Through Wall Detection Radar With Battery Power Source
Place of Origin China
Brand Name Particle
Model Number TW16
Price $11,619
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Compact Structure, Strong Penetration, Real-Time Display, High Anti-Interference, Rugged And Durable Model JP TW16
Effective Detection Time ≤2s（Moving Target），≤10s（Static Target） Detection Range ≥±60°（H），≥±45°（V）
Functionality Detects Both Static And Dynamic Targets Behind Walls, Inside Buildings, Or Under Floors, Providing Feedback On The Distance And Movement Characteristics Of The Target Dynamic Target Recognition Probability ≥95%
Working Frequency ≤4GHz Working Time ≥8h
Boot Time ＜2s Weight ≤650g（Batteries Included）
Detection Distance For Brick Wall（24cm） , Static Targets：≥15 M，moving Targets：≥30 M Deviation ±0.5m
Rear Anti-Interference Distance ≤2m Power Supply 18650 Type Battery，Support For Direct Charging Of External Power
Operation Temperature -40℃～+55℃ IP Grade IP67
Highlight

Compact Structure Detection Radar

,

Strong Penetration Detection Radar

,

Anti Interference Detection Radars
Leave a Message
Product Description

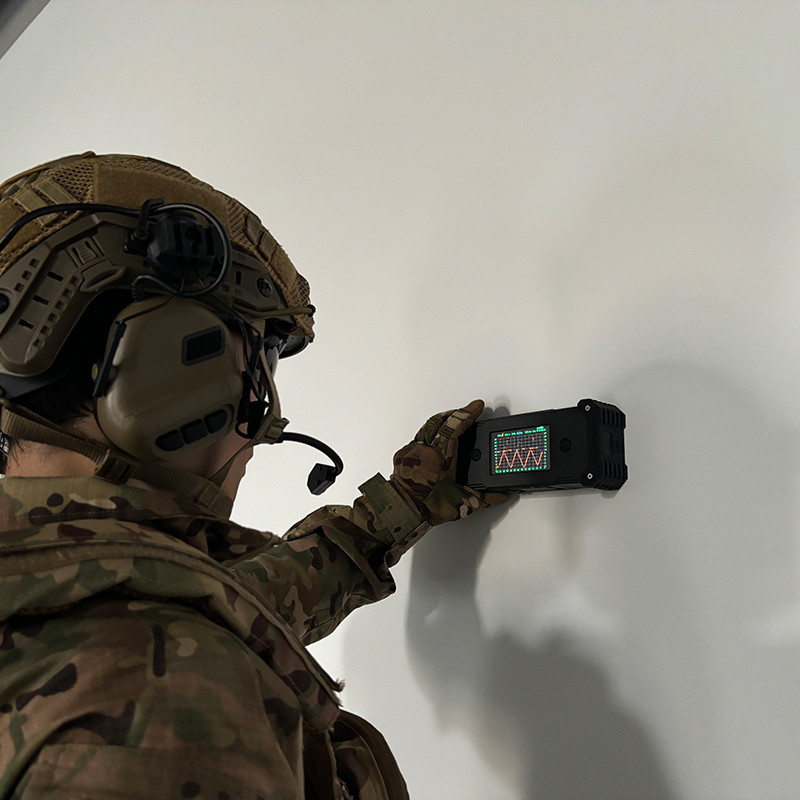

Handheld Through-Wall Detection Radar with Battery Power Source



Applications

JP TW16 is a portable through-wall detection radar that employs ultra-wideband radar technology to detect both static and dynamic targets behind walls and other obstructions using electromagnetic wave signals. This device excels in penetrating non-metallic walls and barriers, capturing even the faintest movements, including human motion, breathing, heartbeats, body shakes, and limb movements. These radar signals, processed through advanced software algorithms, allow the JP TW16 to display the distance to targets on a screen, providing valuable insights into their movement patterns.

The JP TW16 is indispensable in anti-terrorism efforts, as its through-wall detection capabilities offer real-time information on terrorist activities hidden behind walls, helping special forces to anticipate threats and minimize risks. In urban combat scenarios, it detects hidden targets in alleyways, improving battlefield awareness and aiding in the formulation of accurate and effective combat strategies. For police operations, the JP TW16 is invaluable in identifying the behaviors of suspects hiding within structures, enabling law enforcement to develop rapid and effective plans for their apprehension.



Functionality

The JP TW16 detects both static and dynamic targets behind walls, inside buildings, or under floors, providing feedback on the distance and movement characteristics of the target.



Features

  • Compact Structure: Easy for single-person carry and operation.
  • Strong Penetration: Capable of penetrating common wall materials such as bricks, soil, and wooden boards.
  • Real-Time Display: Rapid detection and display of target movements.
  • High Anti-Interference: Effectively filters out background noise to identify targets.
  • Rugged and Durable: Waterproof, stain-proof, and highly adaptable to various environments.



Technical Parameters:
Boot Time ＜2s；
Working Frequency ≤4GHz；
Weight ≤650g(Batteries included)；
Detection Range ≥±60°(H),≥±45°(V)；
Effective Detection Time ≤2s(Moving target),≤10s(Static target)；
Deviation ±0.5m；
Dynamic Target Recognition Probability ≥95%；
Rear Anti-Interference Distance ≤2m；
Power Supply 18650 type battery,Support for direct charging of external power；
Working Time ≥8h；
Operation Temperature -40℃～+55℃；
IP Grade IP67



JP TW16 Details

Strong Penetration Handheld Through Wall Detection Radar With Battery Power Source 0
