Strong Penetration Portable Handheld Radar For Through Wall Detection

  • Strong Penetration Portable Handheld Radar For Through Wall Detection
  • Strong Penetration Portable Handheld Radar For Through Wall Detection
  • Strong Penetration Portable Handheld Radar For Through Wall Detection
  • Strong Penetration Portable Handheld Radar For Through Wall Detection
Place of Origin China
Brand Name Particle
Model Number TW16
Price $11,619
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Distance For Brick Wall ≥15 M (Static Targets), ≥30 M (Moving Targets) Weight ≤650g（Batteries Included）
Detection Range ≥±60°（H），≥±45°（V） Working Time ≥8h
Functionality Detects Both Static And Dynamic Targets Behind Walls, Inside Buildings, Or Under Floors, Providing Feedback On The Distance And Movement Characteristics Of The Target Operation Temperature -40℃～+55℃
Dynamic Target Recognition Probability ≥95% Effective Detection Time ≤2s（Moving Target），≤10s（Static Target）
Boot Time ＜2s Working Frequency ≤4GHz
Detection Distance For Brick Wall（24cm） , Static Targets：≥15 M，moving Targets：≥30 M Deviation ±0.5m
Rear Anti-Interference Distance ≤2m Power Supply 18650 Type Battery，Support For Direct Charging Of External Power
IP Grade IP67
Highlight

Strong Penetration Portable Radar

,

IP67 Portable Radar

,

Portable handheld radar
Leave a Message
Product Description


Strong Penetration Handheld Radar for Through-Wall Detection



Applications

The JP TW16 is a cutting-edge portable through-wall detection radar that leverages ultra-wideband radar technology to identify both static and dynamic targets hidden behind walls and other barriers using electromagnetic wave signals. This advanced product harnesses the exceptional penetrative capabilities of ultra-wideband radar signals to penetrate non-metallic walls and obstacles, capturing subtle movements such as human motion, breathing, heartbeat, body tremors, and limb swings. Processed through sophisticated software algorithms, these returned radar waves allow the system to display the distance to the target on a screen, enabling further analysis of the target’s movement patterns.

In anti-terrorism operations, the JP TW16’s ability to detect hidden targets behind walls provides real-time insights into terrorist movements, significantly aiding special forces in assessing potential threats and minimizing casualties. During urban combat, it can detect targets concealed in narrow passages, enhancing situational awareness and aiding in the development of precise combat strategies to ensure victory. For law enforcement, the JP TW16 helps officers accurately identify the activities of suspects hiding within buildings, facilitating the swift formulation of effective arrest plans.



Functionality

The JP TW16 detects both static and dynamic targets behind walls, inside buildings, or under floors, providing feedback on the distance and movement characteristics of the target.



Features

  • Compact Structure: Easy for single-person carry and operation.
  • Strong Penetration: Capable of penetrating common wall materials such as bricks, soil, and wooden boards.

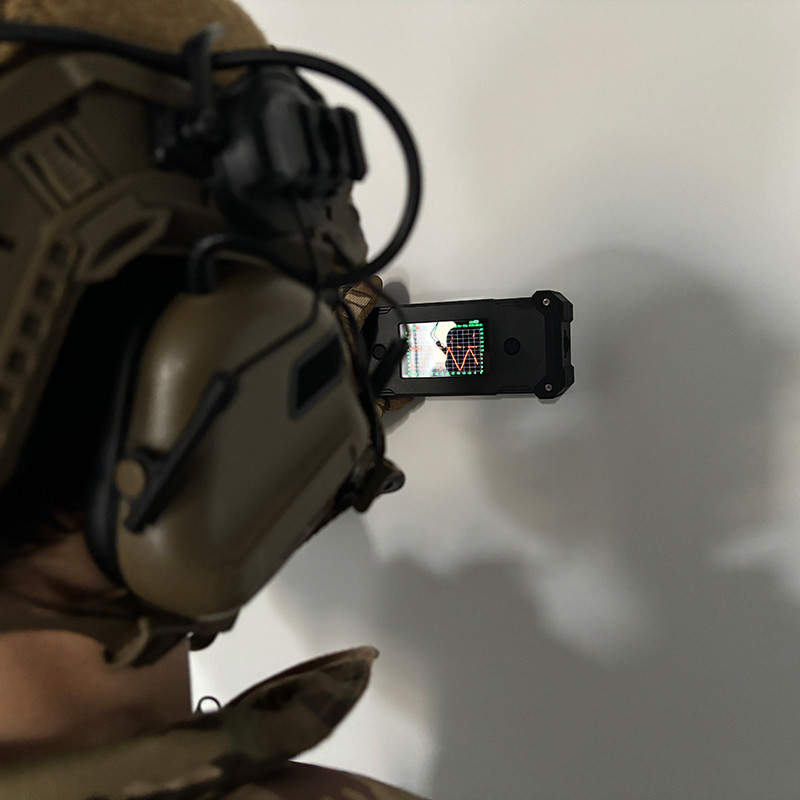

  • Real-Time Display: Rapid detection and display of target movements.
  • High Anti-Interference: Effectively filters out background noise to identify targets.
  • Rugged and Durable: Waterproof, stain-proof, and highly adaptable to various environments.



Technical Parameters:
Boot Time ＜2s；
Working Frequency ≤4GHz；
Weight ≤650g(Batteries included)；
Detection Range ≥±60°(H),≥±45°(V)；
Effective Detection Time ≤2s(Moving target),≤10s(Static target)；
Deviation ±0.5m；
Dynamic Target Recognition Probability ≥95%；
Rear Anti-Interference Distance ≤2m；
Power Supply 18650 type battery,Support for direct charging of external power；
Working Time ≥8h；
Operation Temperature -40℃～+55℃；
IP Grade IP67

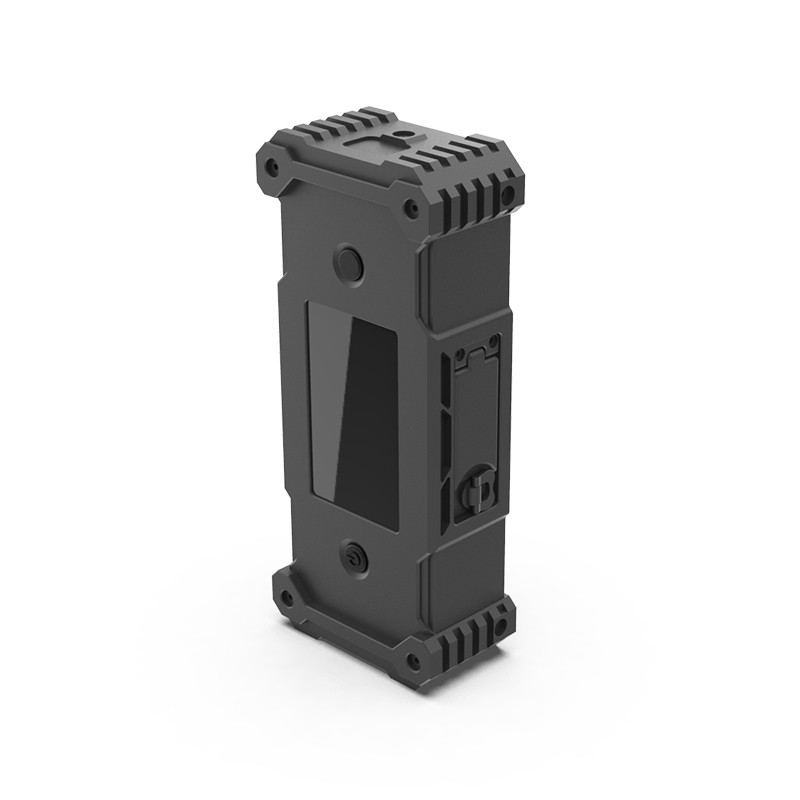

JP TW16 Details

Strong Penetration Portable Handheld Radar For Through Wall Detection 0
