Battery Portable Radar For Through Wall Detection Of Static And Dynamic Targets

  • Battery Portable Radar For Through Wall Detection Of Static And Dynamic Targets
  • Battery Portable Radar For Through Wall Detection Of Static And Dynamic Targets
Place of Origin China
Brand Name Particle
Model Number TW16
Price $11,619
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model JP TW16 Operating Temperature -40℃～+55℃
Detection Distance For Brick Wall（24cm） , Static Targets：≥15 M，moving Targets：≥30 M Power Source Battery
Weight ≤650g（Batteries Included） Waterproof Yes
Boot Time ＜2s Working Frequency ≤4GHz
Detection Range ≥±60°（H），≥±45°（V） Effective Detection Time ≤2s（Moving Target），≤10s（Static Target）
Deviation ±0.5m Dynamic Target Recognition Probability ≥95%
Rear Anti-Interference Distance ≤2m Power Supply 18650 Type Battery，Support For Direct Charging Of External Power
Working Time ≥8h Operation Temperature -40℃～+55℃
IP Grade IP67
Highlight

Battery Battery Portable Radar

,

IP67 Portable Radar

,

Through Wall portable radars
Leave a Message
Product Description


Handheld Through-Wall Detection Radar Detect Static / Dynamic Targets Behind Walls

Applications

The JP TW16 is a cutting-edge portable through-wall detection radar utilizing ultra-wideband radar technology to detect both static and dynamic targets behind walls or other barriers through electromagnetic wave signals. This advanced radar system leverages the high penetrability of ultra-wideband signals to non-metallic obstacles, capturing subtle movements such as human breathing, heartbeat, body shaking, and limb swinging. Processed by sophisticated software algorithms, these radar waves display target distances on the screen, allowing users to analyze movement patterns. Ideal for anti-terrorism operations, urban combat, and police use, the JP TW16 enhances situational awareness and operational precision.



Functionality

The JP TW16 detects both static and dynamic targets behind walls, inside buildings, or under floors, providing feedback on the distance and movement characteristics of the target.



Features

  • Compact Structure: Easy for single-person carry and operation.
  • Strong Penetration: Capable of penetrating common wall materials such as bricks, soil, and wooden boards.
  • Real-Time Display: Rapid detection and display of target movements.
  • High Anti-Interference: Effectively filters out background noise to identify targets.
  • Rugged and Durable: Waterproof, stain-proof, and highly adaptable to various environments.



Technical Parameters:
Boot Time ＜2s；
Working Frequency ≤4GHz；
Weight ≤650g(Batteries included)；
Detection Range ≥±60°(H),≥±45°(V)；
Effective Detection Time ≤2s(Moving target),≤10s(Static target)；
Deviation ±0.5m；
Dynamic Target Recognition Probability ≥95%；
Rear Anti-Interference Distance ≤2m；
Power Supply 18650 type battery,Support for direct charging of external power；
Working Time ≥8h；
Operation Temperature -40℃～+55℃；
IP Grade IP67



JP TW16 Details

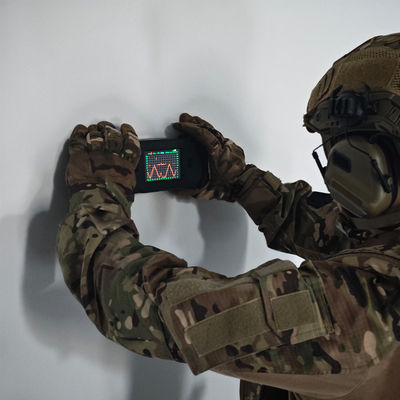

Battery Portable Radar For Through Wall Detection Of Static And Dynamic Targets 0
