1920×1080 Anti Sniper Unique Target Recognition For Observation

Place of Origin China
Brand Name Particle
Model Number GLS1000
Minimum Order Quantity 1
Price $12,346
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Highly Integrated, Available Day And Night, Protection Class IP67, Unique Target Recognition Algorithm Software, Long Battery Life Support Digital Zoom
Laser Ranging Performance Range 50m~1500m(For Human), Range Accuracy ±2m, Correct Rate ≥98%, Repeat Frequency 1Hz Function Search For Suspicious Targets, Laser Ranging, Manual/automatic Laser Counteraction, Picture And Video Recording, Image Adjustment, Azimuth Data Display, Low Battery Warning, Boot Self-test, Capable Of Automatically Adjusting Laser Spot Power Density
Field Of View ≥8︒(H)×6︒(V) Model GLS 1000
Diopter -4SD~+5SD Laser Detection Capability Daytime Detection Distance ≥1200m, Night Detection Distance ≥1800m, Discovery Probability (automatic) ≥90%, Detection FOV ≥3︒, Laser Wavelength ≥800nm
Weight ≤3kg Dimension ≤180×110×290mm
Boot Time ≤5s Battery Life ≥4h(normal Temperature)
Operating Temperature -40℃~+55℃ Memory Card 32G
Sensor Resolution 1920×1080 Objective Lens F1.4,80mm
Field Of View(FOV) ≥8︒(H)×6︒(V) Digital Zoom 1×~4×
Daytime Observation Distance ≥1000m(human) Night Observation Distance ≥350m(human)
Laser Detection Capability(Daytime) ≥1200m(20mmx<Objective Lens<50mm); ≥2500m(Objective Lens≥50mm) Laser Detection Capability(Night) ≥1800m(20mm<Objective Lens<50mm); ≥4000m(Objective Lens≥50mm)
Discovery Probability(Automatic) ≥90% Detection FOV ≥3︒
Laser Wavelength ≥800nm Laser Power Density 0.5mW/cm2~1.25mW/cm2
Safety Distance ≤50m(Does Not Emit Interference Laser For Targets Within 50m) Laser Range 50m~1500m(For Human)
Laser Range Accuracy ±2m Laser Range Correct Rate ≥98%
Repeat Frequency 1Hz E-Compass Azimuth 0~360°
E-Compass Pitch ±90° E-Compass Angle Measurement Accuracy ≤0.5°(RMS,tilt Range:-15°~15°)
Highlight

1920×1080 Anti Sniper

,

Observation Anti Sniper

,

4x Anti Sniper

Leave a Message
Product Description

1920×1080 Anti-Sniper Unique Target Recognition for Observation



Applications

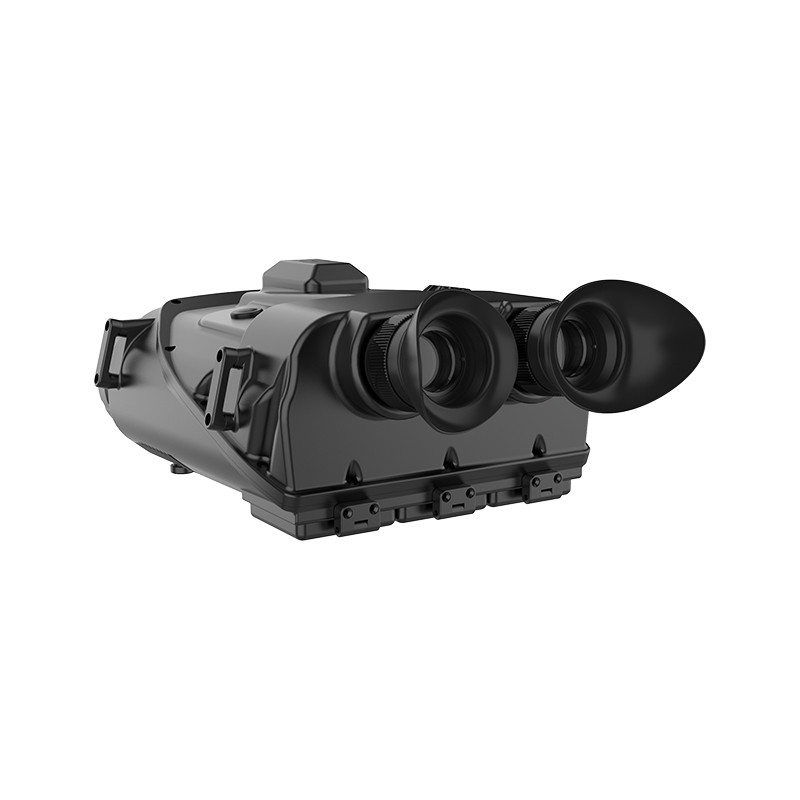

The JP GLS1000 is a cutting-edge handheld "cat's eye" detection device designed for versatile use in reconnaissance, detection, and counteraction. Leveraging the "cat's eye" effect principle, it integrates a low-light camera, laser detection unit, and laser counteraction unit for 24/7 surveillance. The device actively scans with invisible lasers, capturing suspicious optoelectronic devices. Special algorithms filter out background noise and highlight suspicious targets. A built-in laser suppression system allows for both manual and automatic high-power laser countermeasures. With a laser ranging unit and digital compass, it offers superior environmental awareness, helping users lock onto and neutralize threats quickly.



Function



  • Search for suspicious targets of using optical equipment in the target area during the day and night;
  • Support laser ranging;
  • Support manual/automatic laser counteraction;
  • Support taking picture and recording videos;
  • Support digital zoom;
  • Support image brightness, contrast and exposure adjustment;
  • Azimuth data display;
  • Low battery warning;
  • Battery reverse polarity protection;
  • Boot self-test;
  • Counteraction-Laser has power-on insurance and work warning functions;
  • Capable to automatically adjust laser spot power density;



Features



  • Highly integrated, integrate multiple functions all in one;
  • Available day and night;
  • Protection class IP67;
  • It can be used in a wide range of environments, such as deserts, coastal areas, plateaus and other harsh environments;
  • Unique target recognition algorithm software to enhance detection probability;
  • Long battery life, meeting the needs of long-term field use;



Technical Parameters



    Main Body

Weight, kg

≤3

Dimension, mm

≤180×110×290

Boot Time, s

≤5

Battery Life,h

≥4(normal temperature)

Operating Temperature,

-40~+55

Memory Card, G

32

    Optical Performance

Sensor Resolution

1920×1080

Objective Lens, mm

F1.4,80

Field of View(FOV)

≥8︒(H)×6︒(V)

Digital Zoom, ×

1~4

Diopter, SD

-4~+5

Daytime Observation Distance, m

≥1000(human)

Night Observation Distance, m

≥350(human)
    Laser Detection Capability

Daytime

≥1200m(20mmx<Objective Lens<50mm)≥2500m(Objective Lens≥50mm)

Night

≥1800m(20mm<Objective Lens<50mm)≥4000m(Objective Lens≥50mm)

Discovery Probability(Automatic)

≥90%

Detection FOV,

≥3

Laser Wavelength, nm

≥800
    Laser Counteraction Performance

Laser Power Density

0.5mW/cm2~1.25mW/cm2

Safety Distance

≤50m(Does not emit interference laser for targets within 50m)
    Laser Ranging Performance

Range, m

50~1500(For human)

Range Accuracy, m

±2

Correct Rate

≥98%

Repeat Frequency, Hz.

1
    E-Compass

Azimuth, °

0~360

Pitch, °

±90

Angle Measurement Accuracy, °

≤0.5(RMS,tilt range:-15°~15°)





JP GLS1000 Details
