Portable Anti Sniper Gunshots Detection Positioning System
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | AVS300 |
| Minimum Order Quantity | 1 |
| Price | $9,465 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Gunshots Detection & Positioning System | 1）Distance Accuracy： | ≤3.5%×D（When The Detection Lateral Area Is ≤40m, The Detection Distance Is ≤300m (caliber <12.7mm Rifle, Machine Gun) Or The Detection Distance Is ≤600m (caliber ≥12.7mm Rifle, Machine Gun)） |
|---|---|---|---|
| Distance Accuracy： | ≤20%×D（Detection Distance > 300m (caliber < 12.7mm Rifle, Machine Gun); Detection Distance > 600m ( Caliber ≥ 12.7mm Rifle, Machine Gun); Detection Horizontal Area > 40m）. | Direction Error： | ≤2°（When The Detection Lateral Area Is ≤40m, The Detection Distance Is ≤300m (caliber <12.7mm Rifle, Machine Gun) Or The Detection Distance Is ≤600m (caliber ≥12.7mm Rifle, Machine Gun)）; |
| Direction Error | ≤7°（Detection Distance ＞ 300m (caliber ＜ 12.7mm Rifle, Machine Gun); Detection Distance > 600m ( Caliber ≥ 12.7mm Rifle, Machine Gun); Detection Horizontal Area > 40m）. | Weight | 540g |
| Caliber Range | 5.56mm～12.7mm（Rifle, Machine Gun） | Detection Distance | ≥600m（Caliber＜12.7mm Rifle, Machine Gun）; ≥1300m（Caliber≥12.7mm Rifle, Machine Gun） |
| Response Time | ≤4s | Endurance | ≥22h（room Temperature） |
| Operating Temperature | ﹣40℃～﹢55℃ | Storage Temperature | ﹣55℃～﹢70℃ |
| Highlight | Portable anti sniper,Gunshots Detection anti sniper,Positioning System anti sniper |
||
Product Description

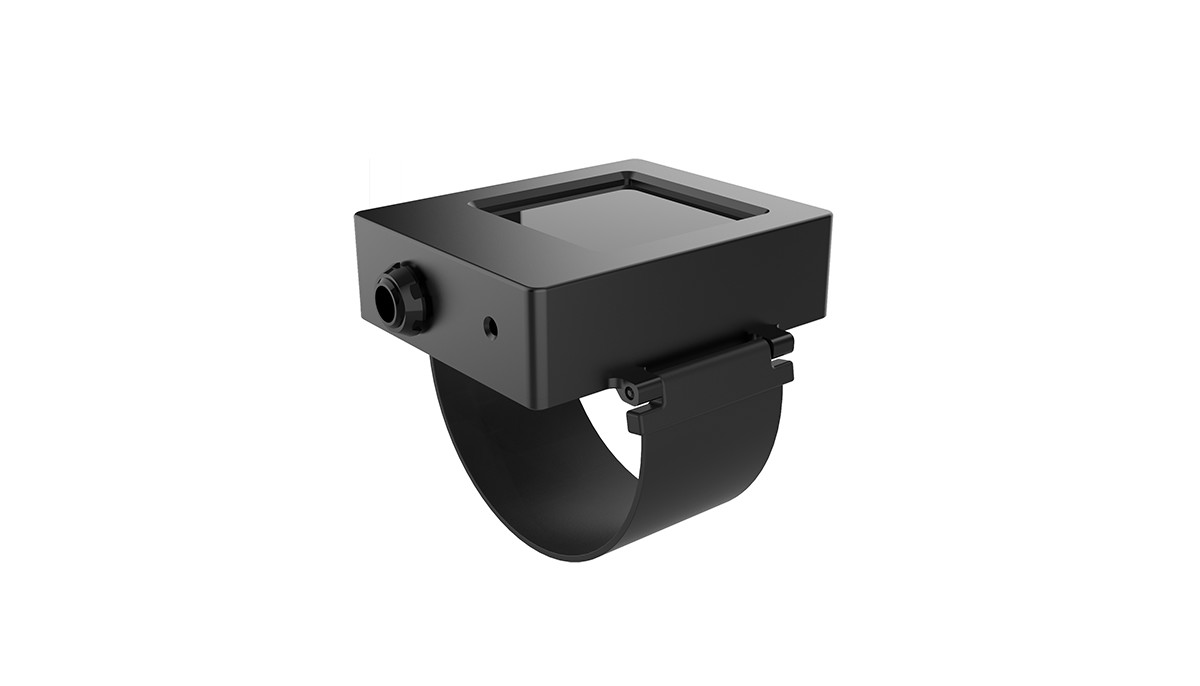

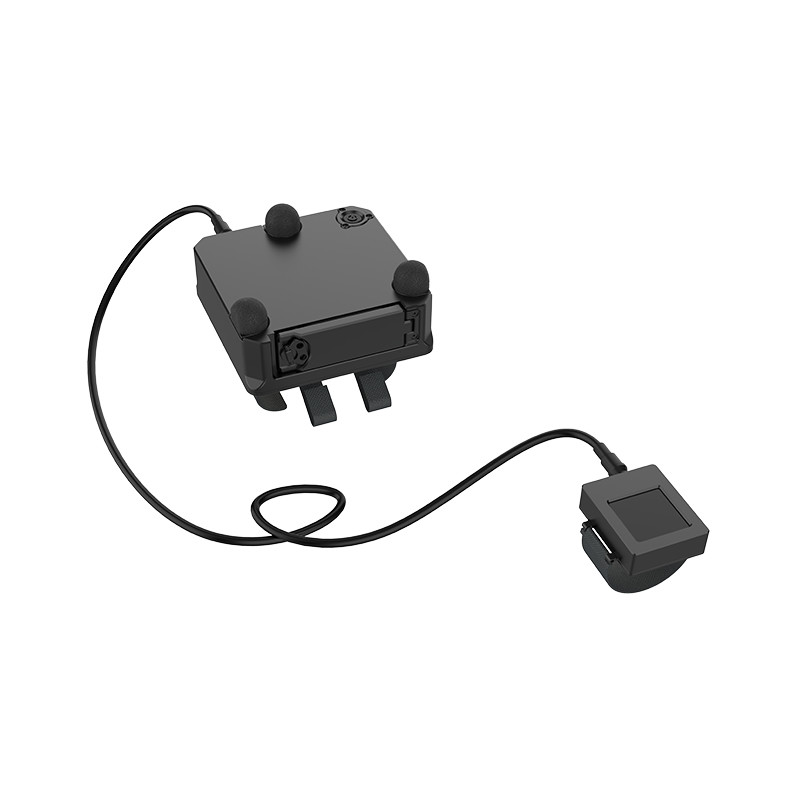

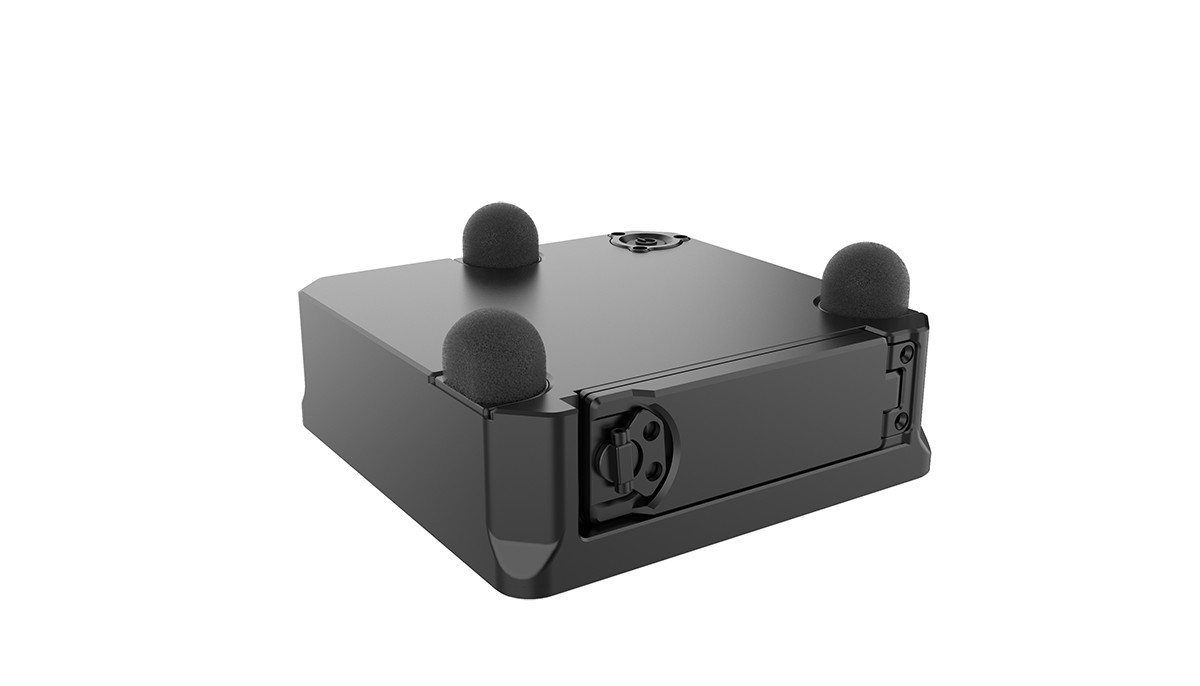

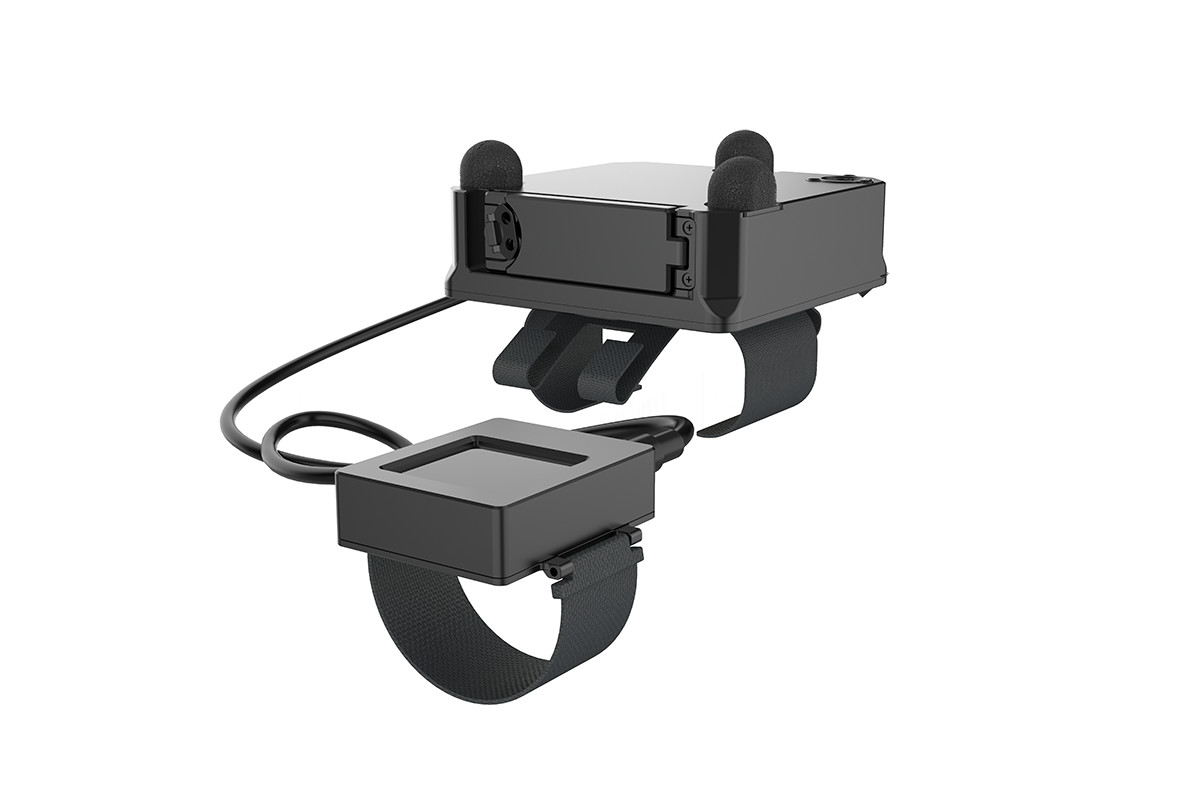

Portable Anti-Sniper Gunshots Detection & Positioning System
Description and Features
The Gunshot Detection and Positioning System is a cutting-edge portable device designed to accurately locate the source of gunfire using advanced acoustic technology. Equipped with high-precision microelectronic acoustic sensors, it captures minute audio vibrations and processes them through sophisticated algorithms to filter out background noise. This allows for precise calculation of the shooter's distance and direction, enabling users to quickly and accurately pinpoint the location of gunfire. Ideal for military, anti-terrorism forces, S.W.A.T teams, and other special operations units, this system is essential for reconnaissance, gunman positioning, and anti-terrorism missions. Its compact structure and lightweight design, weighing only 540g, ensures easy portability, making it a practical solution for field operations.
The system’s wide detection range covers firearm calibers from 5.56mm to 12.7mm, suitable for identifying rifles and machine guns. With a response time of less than 4 seconds, it provides real-time visual feedback, displaying both the direction and distance of the shooter. Built to perform in extreme environments, it operates reliably in temperatures from -40°C to +55°C, and can be stored in conditions ranging from -55°C to +70°C. The system also boasts an impressive battery life, providing over 22 hours of continuous operation at room temperature. Its advanced features and durability make it a crucial tool for enhancing mission success in high-pressure situations.
Compact and Lightweight — Easy for One Person to Carry
Weighing only 540g, this portable gunshot detection system is designed for effortless one-person operation, making it convenient to carry and deploy in the field.
Wide Caliber Detection — Covers Mainstream Rifles and Machine Guns
The system is capable of detecting a wide range of firearm calibers, including mainstream rifles and machine guns, ranging from 5.56mm to 12.7mm, ensuring broad applicability in various missions.
Visual Target Information — Displays Direction and Distance
With a clear visual interface, the system provides real-time feedback, showing both the direction and distance of the target, enabling rapid and accurate responses in dynamic situations.
Quick Response Time — Determines Gunner's Distance and Direction After Firing
The system boasts a response time of less than 4 seconds, quickly calculating the distance and direction of the shooter immediately after a gunshot is detected, enhancing operational effectiveness.
Applications
 |
Image Gallery
|
|
|
Technical Parameters
|
Weight, g |
540 |
|
Caliber Range, mm |
5.56～12.7(Rifle, machine gun) |
|
Response Time, s |
≤4 |
|
Endurance, h |
≥22(room temperature) |
|
Operating Temperature, ℃ |
﹣40～﹢55 |
|
Storage Temperature, ℃ |
﹣55～﹢70 |
