Product Details
Model GLS 1000 Field Of View ≥8︒(H)×6︒(V)
Waterproof Yes Support Digital Zoom
Weight ≤3kg Dimension ≤180×110×290mm
Boot Time ≤5s Battery Life ≥4h(normal Temperature)
Operating Temperature -40℃~+55℃ Memory Card 32G
Sensor Resolution 1920×1080 Objective Lens F1.4,80mm
Field Of View(FOV) ≥8︒(H)×6︒(V) Digital Zoom 1×~4×
Diopter -4SD~+5SD Daytime Observation Distance ≥1000m(human)
Night Observation Distance ≥350m(human) Laser Detection Capability(Daytime) ≥1200m(20mmx<Objective Lens<50mm); ≥2500m(Objective Lens≥50mm)
Laser Detection Capability(Night) ≥1800m(20mm<Objective Lens<50mm); ≥4000m(Objective Lens≥50mm) Discovery Probability(Automatic) ≥90%
Detection FOV ≥3︒ Laser Wavelength ≥800nm
Laser Power Density 0.5mW/cm2~1.25mW/cm2 Safety Distance ≤50m(Does Not Emit Interference Laser For Targets Within 50m)
Laser Range 50m~1500m(For Human) Laser Range Accuracy ±2m
Laser Range Correct Rate ≥98% Repeat Frequency 1Hz
E-Compass Azimuth 0~360° E-Compass Pitch ±90°
E-Compass Angle Measurement Accuracy ≤0.5°(RMS,tilt Range:-15°~15°)
Highlight

Cutting Edge Anti Sniper

,

Reconnaissance Anti Sniper

,

digital zoom Anti Sniper

Leave a Message
Product Description

Cutting-Edge Anti-Sniper Solution for Reconnaissance Applications



Applications

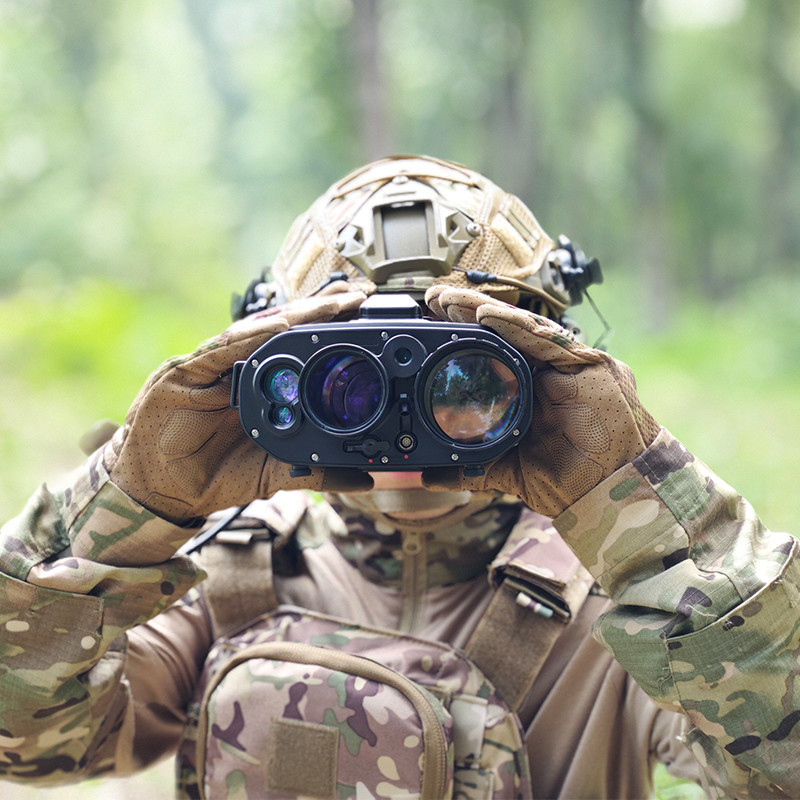

The JP GLS1000 is a cutting-edge handheld detection device that leverages the "cat's eye" effect principle to integrate reconnaissance, detection, and counteraction capabilities. It features a low-light camera, laser detection unit, and laser counteraction unit, allowing for 24/7 surveillance of the surrounding environment. By emitting invisible lasers, it scans suspicious areas and captures potential optoelectronic devices instantly. Advanced algorithms filter background noise and highlight suspicious targets. Equipped with a laser suppression system, it can manually or automatically fire high-power lasers to disable threats. The built-in laser ranging unit and digital compass provide critical data on target distance, azimuth, and pitch angle, enhancing its environmental awareness and aiding security personnel in threat elimination.



Function



  • Search for suspicious targets of using optical equipment in the target area during the day and night;
  • Support laser ranging;
  • Support manual/automatic laser counteraction;
  • Support taking picture and recording videos;
  • Support digital zoom;
  • Support image brightness, contrast and exposure adjustment;
  • Azimuth data display;
  • Low battery warning;
  • Battery reverse polarity protection;
  • Boot self-test;
  • Counteraction-Laser has power-on insurance and work warning functions;
  • Capable to automatically adjust laser spot power density;



Features



  • Highly integrated, integrate multiple functions all in one;
  • Available day and night;
  • Protection class IP67;
  • It can be used in a wide range of environments, such as deserts, coastal areas, plateaus and other harsh environments;
  • Unique target recognition algorithm software to enhance detection probability;
  • Long battery life, meeting the needs of long-term field use;



Technical Parameters



    Main Body

Weight, kg

≤3

Dimension, mm

≤180×110×290

Boot Time, s

≤5

Battery Life,h

≥4(normal temperature)

Operating Temperature,

-40~+55

Memory Card, G

32

    Optical Performance

Sensor Resolution

1920×1080

Objective Lens, mm

F1.4,80

Field of View(FOV)

≥8︒(H)×6︒(V)

Digital Zoom, ×

1~4

Diopter, SD

-4~+5

Daytime Observation Distance, m

≥1000(human)

Night Observation Distance, m

≥350(human)
    Laser Detection Capability

Daytime

≥1200m(20mmx<Objective Lens<50mm)≥2500m(Objective Lens≥50mm)

Night

≥1800m(20mm<Objective Lens<50mm)≥4000m(Objective Lens≥50mm)

Discovery Probability(Automatic)

≥90%

Detection FOV,

≥3

Laser Wavelength, nm

≥800
    Laser Counteraction Performance

Laser Power Density

0.5mW/cm2~1.25mW/cm2

Safety Distance

≤50m(Does not emit interference laser for targets within 50m)
    Laser Ranging Performance

Range, m

50~1500(For human)

Range Accuracy, m

±2

Correct Rate

≥98%

Repeat Frequency, Hz.

1
    E-Compass

Azimuth, °

0~360

Pitch, °

±90

Angle Measurement Accuracy, °

≤0.5(RMS,tilt range:-15°~15°)





JP GLS1000 Details
