Night Vision Modular Digital Corner Shot System Equipment Sight

  • Night Vision Modular Digital Corner Shot System Equipment Sight
  • Night Vision Modular Digital Corner Shot System Equipment Sight
  • Night Vision Modular Digital Corner Shot System Equipment Sight
Place of Origin China
Brand Name Particle
Model Number MCS-D
Minimum Order Quantity 1
Price $6,310 ~ $7,888
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Language Support Chinese/English Sight Weight ≤300g（Battery Included）
Durability High Sight Recognition Distance ≥100m（1～5×10-2lx Under Illumination Conditions）
Display Image Digital Magnification 2x Scope Reticle Personalization Yes
Image Brightness And Contrast Adjustable Yes Photo And Video Functions Yes
Image Sensor CMOS，1/1.8in，4.0*4.0um Sensor Resolution 1920*1080 Pixel
Recognition Distance ≥100（1～5×10-2lx Under Illumination Conditions） Basic Magnification 1 X
FOV（H×V） 16×9° Weight ≤400g（Battery Included）
Communication Method Wireless Connection Video Delay ≤200ms
Duration ≥4h（room Temperature）
Highlight

Night Vision handheld thermal imaging scope

,

100m handheld thermal imaging scope

,

CMOS handheld night vision
Leave a Message
Product Description


Night Vision Modular Digital Corner Shot System Equipment Sight


Applications

Enhance your urban combat capabilities with our advanced modular digital corner shot system, developed to ensure safe shooting in corner positions. In urban combat, where the situation behind a corner is often unknown, this innovative solution is essential. The system features a modular design, including a front-end under-mounted sight and a rear-end monocular digital night vision goggle, wirelessly connected for smooth functionality. The sight attaches to a pistol via a tactical rail and captures images. Alternatively, it can be mounted on a special gun frame we provide, available separately. The monocular night vision goggle, mounted on a tactical helmet, allows for seamless switching between the pistol side video and the night vision goggle video. This system transcends traditional mechanical limitations, offering greater flexibility and efficiency in corner shooting. It is equipped with a high-performance night vision image sensor, capable of producing clear images even in low illumination, ensuring that users can identify dangerous targets clearly in any lighting condition, day or night.


Function
1. Night vision function；
2. Support "one shot" function；
3. Video source quick switching function；
4. Display image supports 2x digital magnification；
5. With photo and video functions, supports data export；
6. Image brightness and contrast are adjustable；
7. Scope reticle personalization (color, type, brightness)；
8. Advanced settings (adjust gain, exposure, noise reduction and image enhancement)；
9. Support Chinese/English language switching

Features
1. Outstanding night vision ability, clearly identify targets under low light；
2. One shot, quick calibration；
3. Break away from the traditional mechanical corner structure and become more flexible and portable；
4. Modular design, night vision goggles can be used as separate devices；
5. The scope adopts a quick-release rail clamp for quick disassembly and assembly；
6. The night vision goggle bracket adopts a standard "cuttlefish" interface and is suitable for most tactical helmets；

Technical Parameters:

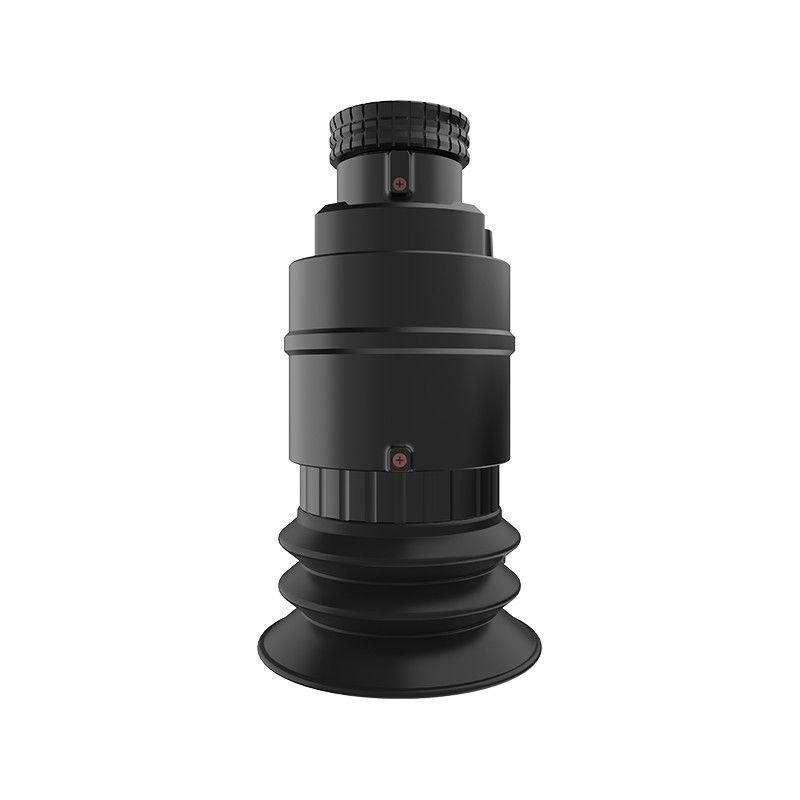

1. Monocular Night Vision Goggles
(1)Image SensorCMOS,1/1.8in,4.0*4.0um；(PRO:1.7in,12*12um)
(2)Sensor Resolution1920*1080 Pixel；
(3)Recognition Distance≥100m(1～5×10-2lx Under illumination conditions)；(PRO:≥150m(1～5×10-3lx Under illumination conditions))
(4)Basic Magnification,1×
(5)FOV(H×V)16×9°；
(6)Weight≤400g(Battery included)；

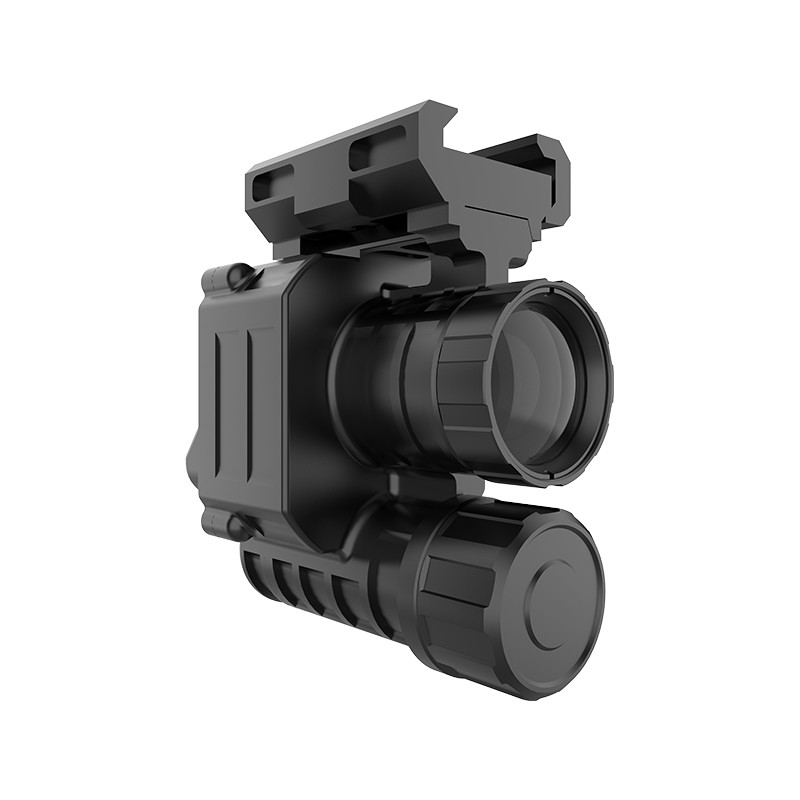

2. Sight
(1)Image SensorCMOS,1/1.8in,4.0*4.0um；
(2)Sensor Resolution1920*1080Pixel
(3)Recognition Distance≥100m(1～5×10-2lx Under illumination conditions)
(4)Basic Magnification1×
(5)FOV(H×V)16×9°；
(6)Weight≤300g(Battery included)
3. System Parameters
(1)Communication methodwireless connection
(2)Video Delay≤200ms
(3)Duration≥4h(room temperature)



JP MCS-D100 JP MCS-D150 Details
Night Vision Modular Digital Corner Shot System Equipment Sight 0
