Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions

  • Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions
  • Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions
  • Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions
Place of Origin China
Brand Name Particle
Model Number MCS-D
Minimum Order Quantity 1
Price $6,310 ~ $7,888
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Durability High Sight Recognition Distance ≥100m（1～5×10-2lx Under Illumination Conditions）
Color Black Waterproof Yes
Sight Image Sensor CMOS，1/1.8in，4.0*4.0um Sight Weight ≤300g（Battery Included）
Purpose Military/Outdoor Activities Image Sensor CMOS，1/1.8in，4.0*4.0um
Sensor Resolution 1920*1080 Pixel Recognition Distance ≥100（1～5×10-2lx Under Illumination Conditions）
Basic Magnification 1 X FOV（H×V） 16×9°
Weight ≤400g（Battery Included） Communication Method Wireless Connection
Video Delay ≤200ms Duration ≥4h（room Temperature）
Highlight

Corner Positions hand held night vision scope

,

Black hand held night vision scope

,

Outdoor activities hand held night vision spotter
Leave a Message
Product Description



Modular Digital Corner Shot System For Safe Shooting In Corner Positions





Applications

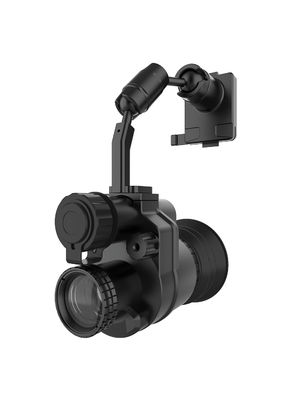

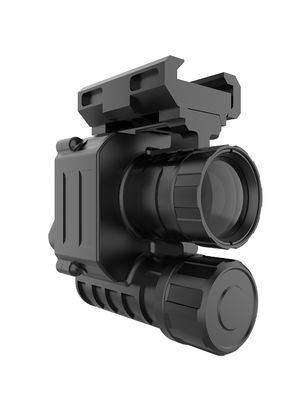

This product is specially developed to solve the problem of safe shooting in corner positions. In the known urban combat environment, the situation behind the corner is unknown, and a rash attack will only put combatants in great danger. Now we have an innovative solution. This system adopts a modular design and consists of a front-end under-mounted sight and a rear-end monocular digital night vision goggle. The two are connected wirelessly. The sight is connected to the pistol through a tactical rail and is responsible for collecting images (of course, You can also choose to install the front end on the special gun frame we provide, but it requires additional purchase)； the monocular night vision goggles are installed on the tactical helmet, so that users can switch between the pistol side video and the night vision goggle video according to the field conditions. This system breaks away from the constraints of the traditional mechanical structure, making corner shooting more flexible and efficient, and we have also given it night vision capabilities. It has a built-in high-performance night vision image sensor, which can still maintain clear images even in low illumination. The image quality is enough to allow users to see dangerous targets clearly no matter day or night or in dark environments.



Function

1. Night vision function；

2. Support "one shot" function；

3. Video source quick switching function；

4. Display image supports 2x digital magnification；

5. With photo and video functions, supports data export；

6. Image brightness and contrast are adjustable；

7. Scope reticle personalization (color, type, brightness)；

8. Advanced settings (adjust gain, exposure, noise reduction and image enhancement)；

9. Support Chinese/English language switching



Features

1. Outstanding night vision ability, clearly identify targets under low light；

2. One shot, quick calibration；

3. Break away from the traditional mechanical corner structure and become more flexible and portable；

4. Modular design, night vision goggles can be used as separate devices；

5. The scope adopts a quick-release rail clamp for quick disassembly and assembly；

6. The night vision goggle bracket adopts a standard "cuttlefish" interface and is suitable for most tactical helmets；



Technical Parameters:

1. Monocular Night Vision Goggles
(1)Image Sensor CMOS,1/1.8in,4.0*4.0um；(PRO:1.7in,12*12um)
(2)Sensor Resolution 1920*1080 Pixel；
(3)Recognition Distance ≥100m(1～5×10-2lx Under illumination conditions)；(PRO:≥150m(1～5×10-3lx Under illumination conditions))
(4)Basic Magnification, 1×
(5)FOV(H×V) 16×9°；
(6)Weight ≤400g(Battery included)；
2. Sight
(1)Image Sensor CMOS,1/1.8in,4.0*4.0um；
(2)Sensor Resolution 1920*1080Pixel
(3)Recognition Distance ≥100m(1～5×10-2lx Under illumination conditions)
(4)Basic Magnification 1×
(5)FOV(H×V) 16×9°；
(6)Weight ≤300g(Battery included)
3. System Parameters
(1)Communication method wireless connection
(2)Video Delay ≤200ms
(3)Duration ≥4h(room temperature)





JP MCS-D100 JP MCS-D150 Details

Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions 0Black Modular Digital Corner Shot System For Safe Shooting In Corner Positions 1
