Modular Firearm Sighting System Military Outdoor Activities
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | DNVG-100/DNVG-150 |
| Minimum Order Quantity | 1 |
| Price | $3,155 ~ $4,733 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Photo And Video Functions | Yes | Sight Weight | ≤300g（Battery Included） |
|---|---|---|---|
| Sight Recognition Distance | ≥100m（1～5×10-2lx Under Illumination Conditions） | Scope Reticle Personalization | Yes |
| Language Support | Chinese/English | Night Vision Function | Yes |
| Advanced Settings | Yes | Sight Image Sensor | CMOS，1/1.8in，4.0*4.0um |
| Image Sensor | CMOS，1/1.8in，4.0*4.0um | Sensor Resolution | 1920*1080 Pixel |
| Recognition Distance | ≥100（1～5×10-2lx Under Illumination Conditions） | Basic Magnification | 1 X |
| FOV（H×V） | 16×9° | Weight | ≤400g（Battery Included） |
| Communication Method | Wireless Connection | Video Delay | ≤200ms |
| Duration | ≥4h（room Temperature） | ||
| Highlight | Modular Firearm Sighting System,Outdoor Activities Firearm Sighting System,Military Activities hand held night vision spotter |
||
Product Description
Modular Firearm Sighting System Military/Outdoor Activities
Applications

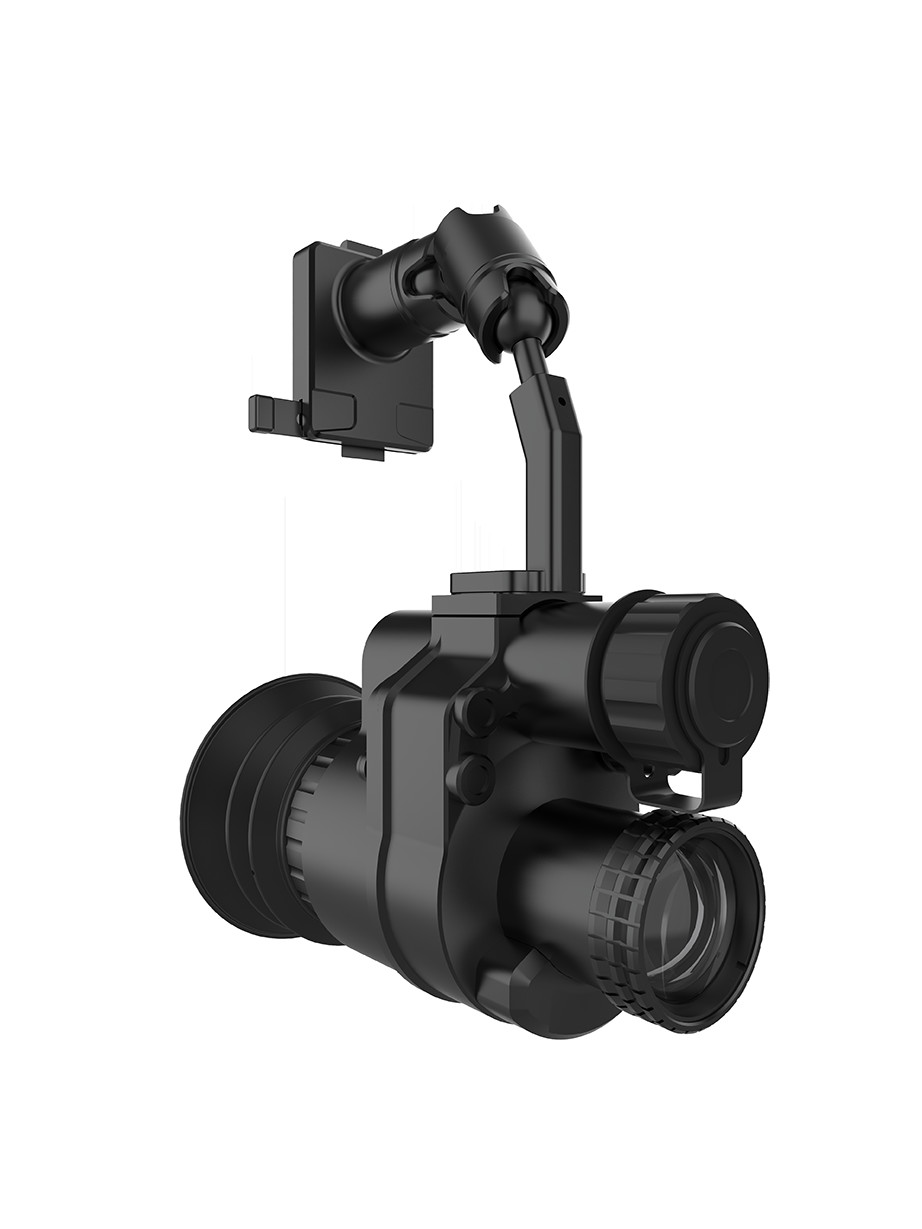

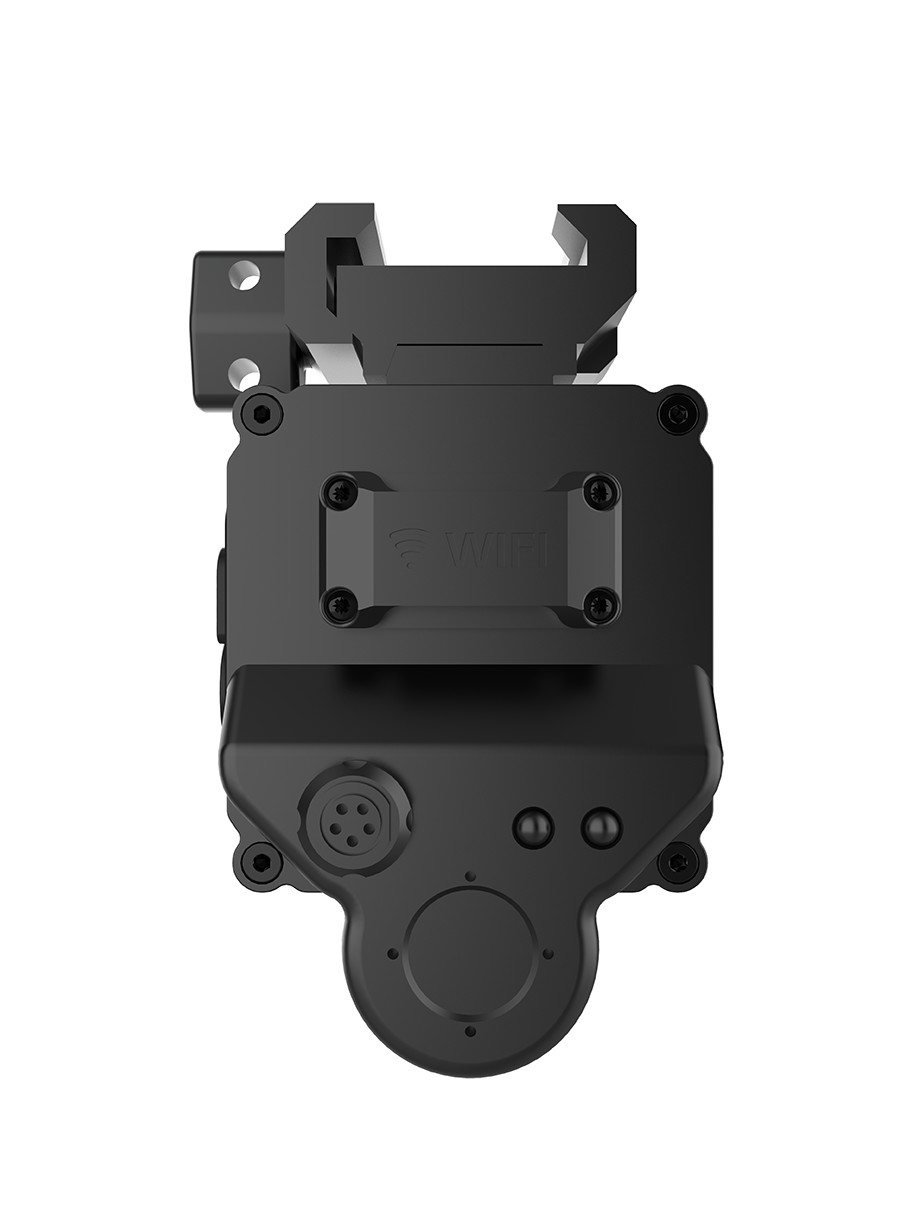

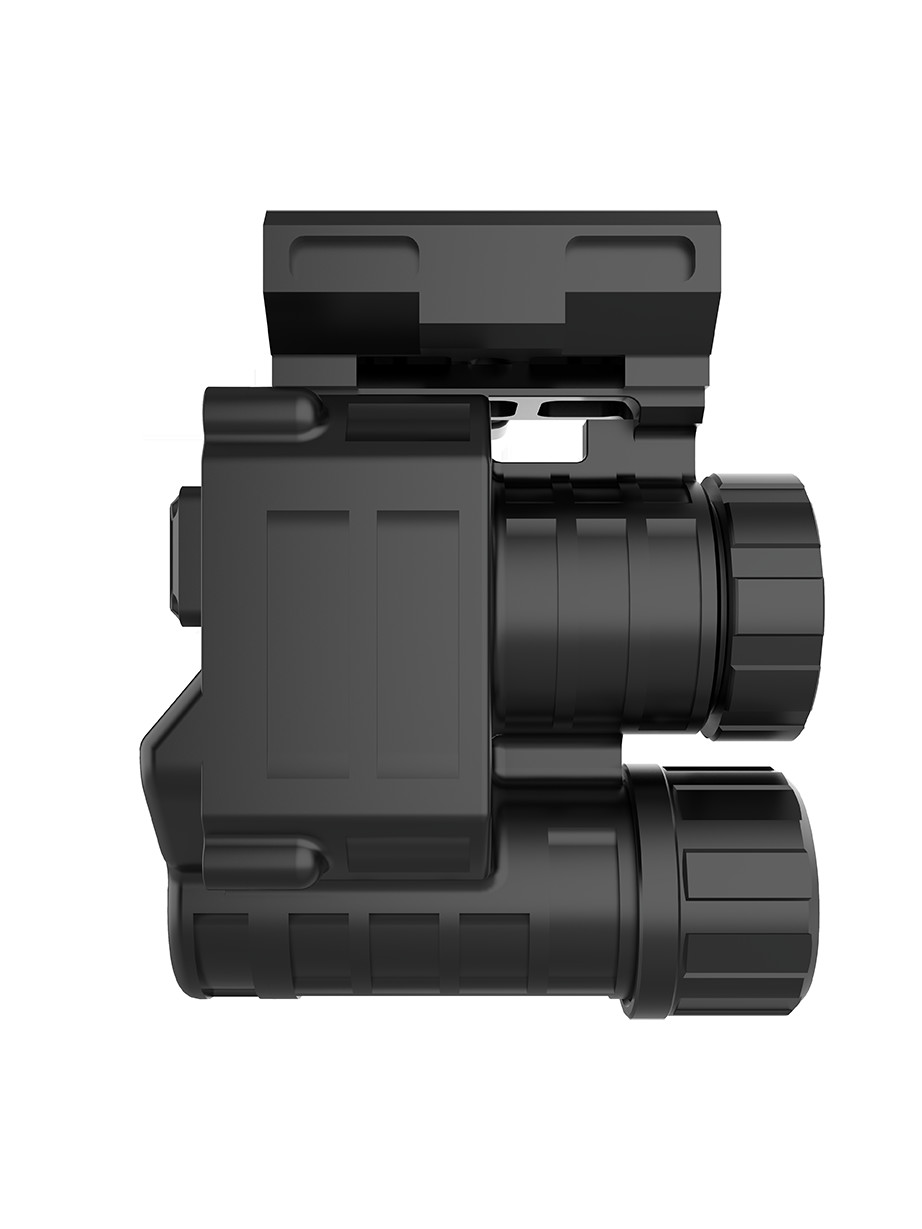

Our cutting-edge modular digital corner shot system is the ultimate solution for safe shooting in corner positions, specifically designed for the challenges of urban combat. In such environments, the unknown dangers behind corners can put combatants at great risk. Our innovative system features a modular design, combining a front-end under-mounted sight and a rear-end monocular digital night vision goggle, wirelessly connected for efficient operation. The sight mounts on a pistol via a tactical rail to capture images and can also be installed on a special gun frame we provide, though this requires an additional purchase. The rear-end monocular night vision goggle is mounted on a tactical helmet, enabling the user to switch between the pistol side video and the night vision goggle video according to the situation. Free from the constraints of traditional mechanical structures, this system provides enhanced flexibility and efficiency in corner shooting. With a high-performance night vision image sensor, it delivers clear images even in low-light conditions, ensuring users can clearly see dangerous targets in any environment, day or night.
Function
- Night vision function；
- Support "one shot" function；
- Video source quick switching function；
- Display image supports 2x digital magnification；
- With photo and video functions, supports data export；
- Image brightness and contrast are adjustable；
- Scope reticle personalization (color, type, brightness)；
- Advanced settings (adjust gain, exposure, noise reduction and image enhancement)；
- Support Chinese/English language switching
Features
- Outstanding night vision ability, clearly identify targets under low light；
- One shot, quick calibration；
- Break away from the traditional mechanical corner structure and become more flexible and portable；
- Modular design, night vision goggles can be used as separate devices；
- The scope adopts a quick-release rail clamp for quick disassembly and assembly；
- The night vision goggle bracket adopts a standard "cuttlefish" interface and is suitable for most tactical helmets；
Technical Parameters
|
|
JP MCS-D100 JP MCS-D150 Details
 |
