1920 X 1080 Pixel Modular Digital Corner Shot Technology For Military Police
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | DNVG-100/DNVG-150 |
| Minimum Order Quantity | 1 |
| Price | $3,155 ~ $4,733 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Video Source Quick Switching Function | Yes | Scope Reticle Personalization | Yes |
|---|---|---|---|
| Advanced Settings | Yes | Night Vision Function | Yes |
| Purpose | Military/Outdoor Activities | Sight Recognition Distance | ≥100m（1～5×10-2lx Under Illumination Conditions） |
| Language Support | Chinese/English | Photo And Video Functions | Yes |
| Image Sensor | CMOS，1/1.8in，4.0*4.0um | Sensor Resolution | 1920*1080 Pixel |
| Recognition Distance | ≥100（1～5×10-2lx Under Illumination Conditions） | Basic Magnification | 1 X |
| FOV（H×V） | 16×9° | Weight | ≤400g（Battery Included） |
| Communication Method | Wireless Connection | Video Delay | ≤200ms |
| Duration | ≥4h（room Temperature） | ||
| Highlight | 1920 X 1080 thermal handheld spotter,Military thermal handheld spotter,Police handheld thermal for hunting |
||
Product Description
Modular Digital Corner Shot Technology For Military/Police
Applications

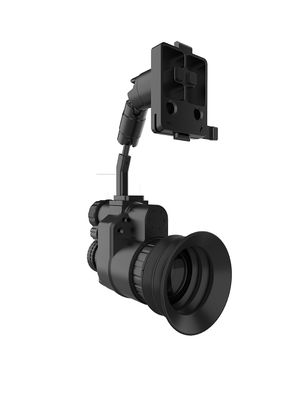

Our advanced modular digital corner shot system is designed to address the critical need for safe shooting in corner positions, particularly in urban combat scenarios where the situation behind a corner is unknown. This innovative solution features a modular design, including a front-end under-mounted sight and a rear-end monocular digital night vision goggle, wirelessly connected for seamless integration. The sight is mounted on a pistol via a tactical rail and captures images. Alternatively, it can be installed on a special gun frame provided by us, available for additional purchase. The monocular night vision goggle, mounted on a tactical helmet, allows users to switch between the pistol side video and the night vision goggle video as required by field conditions. Free from traditional mechanical limitations, this system offers increased flexibility and efficiency in corner shooting. It is equipped with a high-performance night vision image sensor that ensures clear image quality even in low-light conditions, allowing users to see dangerous targets clearly in any lighting environment, enhancing both safety and operational effectiveness.
Function
- Night vision function；
- Support "one shot" function；
- Video source quick switching function；
- Display image supports 2x digital magnification；
- With photo and video functions, supports data export；
- Image brightness and contrast are adjustable；
- Scope reticle personalization (color, type, brightness)；
- Advanced settings (adjust gain, exposure, noise reduction and image enhancement)；
- Support Chinese/English language switching
Features
- Outstanding night vision ability, clearly identify targets under low light；
- One shot, quick calibration；
- Break away from the traditional mechanical corner structure and become more flexible and portable；

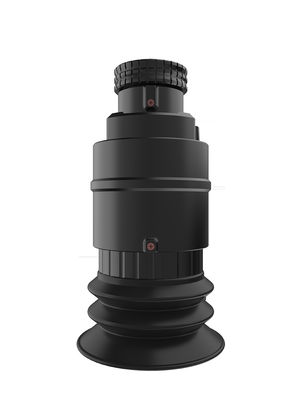

- Modular design, night vision goggles can be used as separate devices；
- The scope adopts a quick-release rail clamp for quick disassembly and assembly；
- The night vision goggle bracket adopts a standard "cuttlefish" interface and is suitable for most tactical helmets；
Technical Parameters
|
|
JP MCS-D100 JP MCS-D150 Details
 |
