Long Distance Measurement And Observation With Multi Functional Laser Rangefinder
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | MLR6000 |
| Price | $12,346 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Deviation | ≤2m（2km～6km），≤1m（20m～2km） | Efficiency | ≥98% |
|---|---|---|---|
| Item Color | Black | Battery | Lithium Battery |
| Daytime Recognition Distance | ≥6km (Visibility Not Less Than 12km, For Medium-sized Trucks) | Night Recognition Distance | ≥1km (Visibility Not Less Than 8km, Illumination Is 5×10-3lx, For Medium-sized Trucks) |
| Repeat Frequency | ≥1Hz | Scanning Frequency | ≥5Hz |
| Wavelength | Eye Safety，1535nm | Visible-Light FOV | 3°（H）×2.2°（V） |
| Low-Light FOV | 9°（H）×6.7°（V） | Azimuth Accuracy | ≤0.5°（RMS） |
| Weight | ≤1.6kg（Include Batteries） | Working Time | ≥6h |
| Diopter | -5SD～+2SD | Operating Temperature | -40℃～+55℃ |
| Highlight | Lithium Battery Laser Rangefinder,Multi Functional Laser Rangefinder,1535nm Laser Rangefinder |
||
Product Description

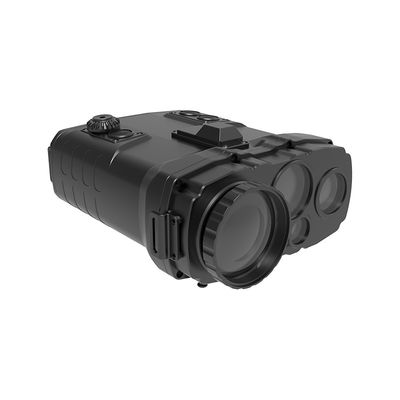

Long-Distance Measurement and Observation with Multi-Functional Laser Rangefinder
Description and Features
The JP MLR6000 is a high-performance handheld ranging device designed for versatile applications in demanding environments. Equipped with a high-precision laser ranging module, visible and low-light cameras, and an electronic compass, it ensures precise distance measurements and enhanced target observation. The MLR6000 excels in both daylight and night vision conditions, providing users with advanced features such as fog-penetration, digital zoom, and the ability to measure relative distances between multiple targets. With a wide ranging range of up to 6000 meters and high accuracy, the MLR6000 is ideal for scenarios requiring precise distance measurements and situational awareness in challenging terrains.
Weighing ≤1.6 kg (including batteries) and offering a working time of ≥6 hours, the JP MLR6000 combines portability and endurance for field operations. Its visible-light field of view (FOV) is 3°(H) × 2.2°(V), while its low-light FOV is 9°(H) × 6.7°(V), ensuring comprehensive coverage during observation. With a scanning frequency of ≥5 Hz and deviation accuracy as low as ≤2 meters for ranges between 2 km and 6 km, the MLR6000 guarantees reliable performance. The device is also highly durable, operating efficiently between -40°C and +55°C, making it suitable for extreme weather conditions.
Support Daylight and Night Vision Dual-Mode Observation
Provides clear visibility in both day and night conditions, ensuring continuous monitoring regardless of lighting.
Support Relative Distance Measurement Between Targets
Allows for precise measurement of distances between multiple targets, enhancing situational awareness and targeting accuracy.
With Single, Continuous, and Scan-Ranging Functions
Offers versatile ranging modes to adapt to various operational needs, including single, continuous, and scanning for dynamic environments.
Target Distance Reappearance
Enables the system to recall and display previously measured target distances, aiding in quick reference and efficient task execution.
External Trigger Ranging
Supports external triggering for distance measurements, providing flexibility and control over the timing of measurements.
Fog-Penetration Function
Allows for clear visibility and accurate measurements even in foggy or low-visibility conditions, improving performance in adverse weather.
Wide Ranging Range and High Accuracy
Features an extensive measurement range with exceptional precision, ensuring accurate distance readings across varying distances.
Hands-Free Distance Measurement
Allows users to measure distances without physically interacting with the device, providing greater convenience and efficiency during operations.
Applications
 |

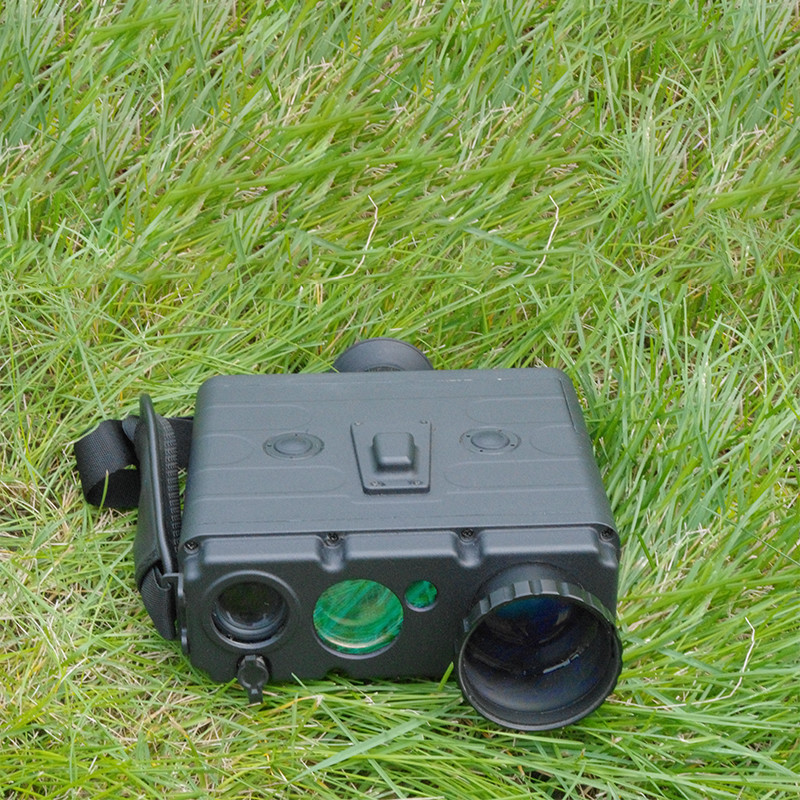

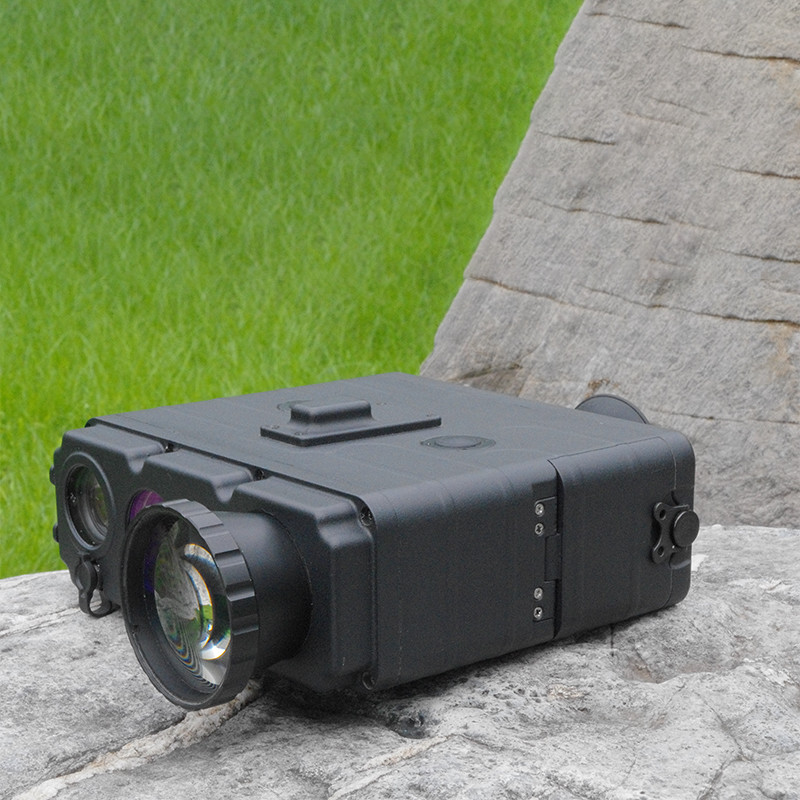

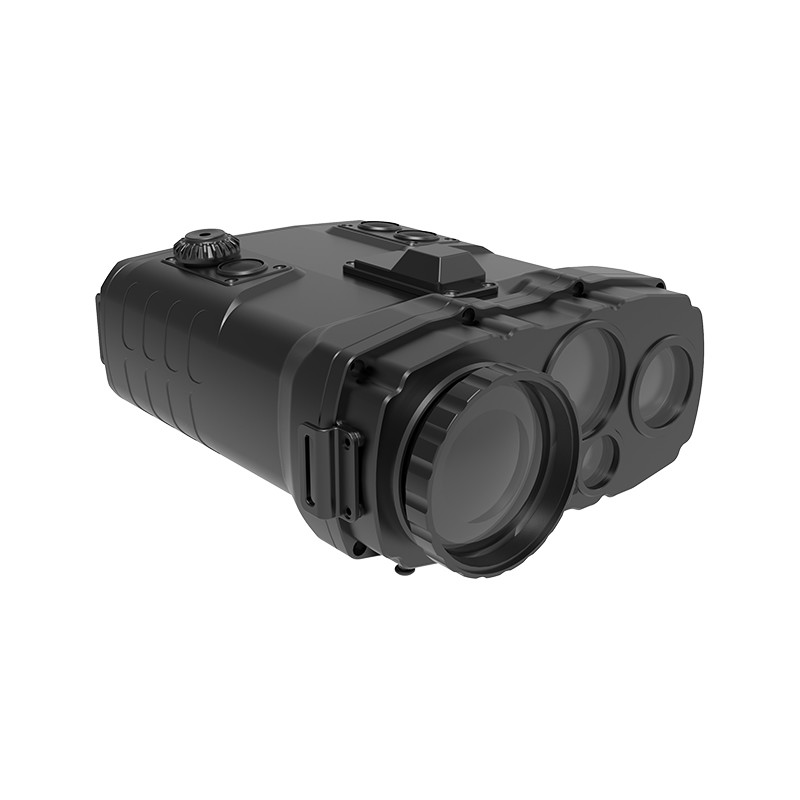

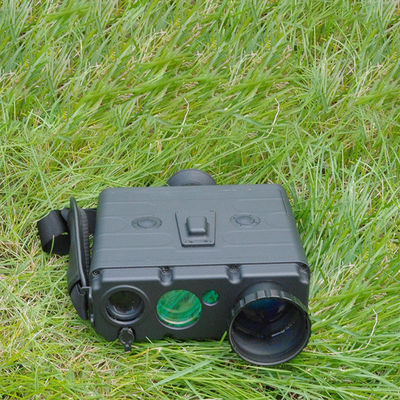

Image Gallery
|
|
|
Technical Parameters
|
Daytime Recognition Distance, km |
≥6 (Visibility not less than 12km, for medium-sized trucks) |
|
Night Recognition Distance, km |
≥1 (Visibility not less than 8km, illumination is 5×10-3lx, for medium-sized trucks) |
|
Range(Under the condition of visibility of 12km), m |
Minimum≤20,maximum≥6000 |
|
Deviation, m |
≤2(2km～6km),≤1(20m～2km) |
|
Efficiency |
≥98% |
|
Repeat Frequency, Hz |
≥1 |
|
Scanning Frequency, Hz |
≥5 |
|
Wavelength, nm |
Eye Safety,1535 |
|
Visible-Light FOV, ° |
3(H)×2.2(V) |
|
Low-Light FOV, ° |
9(H)×6.7(V) |
|
Azimuth Accuracy, ° |
≤0.5(RMS) |
|
Weight, kg |
≤1.6(Include batteries) |
|
Working Time, h |
≥6 |
|
Diopter, SD |
-5～+2 |
|
Operating Temperature, ℃ |
-40℃～+55 |
