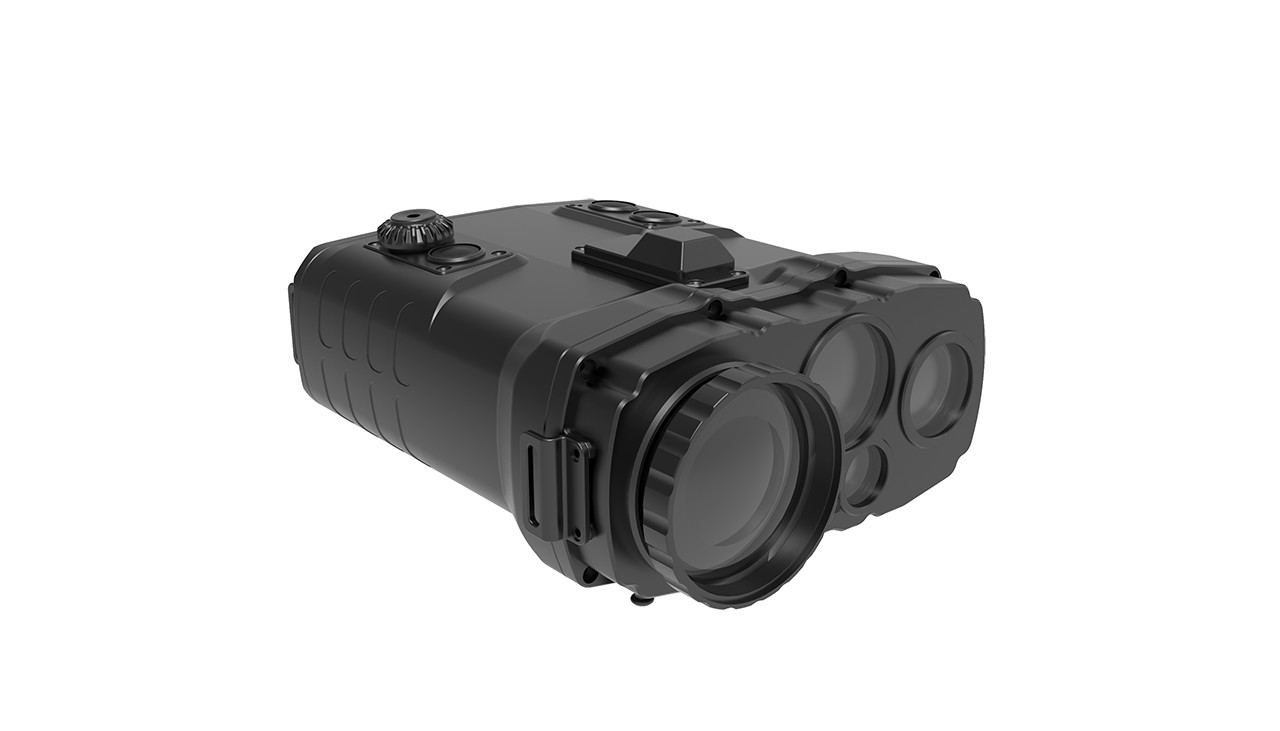

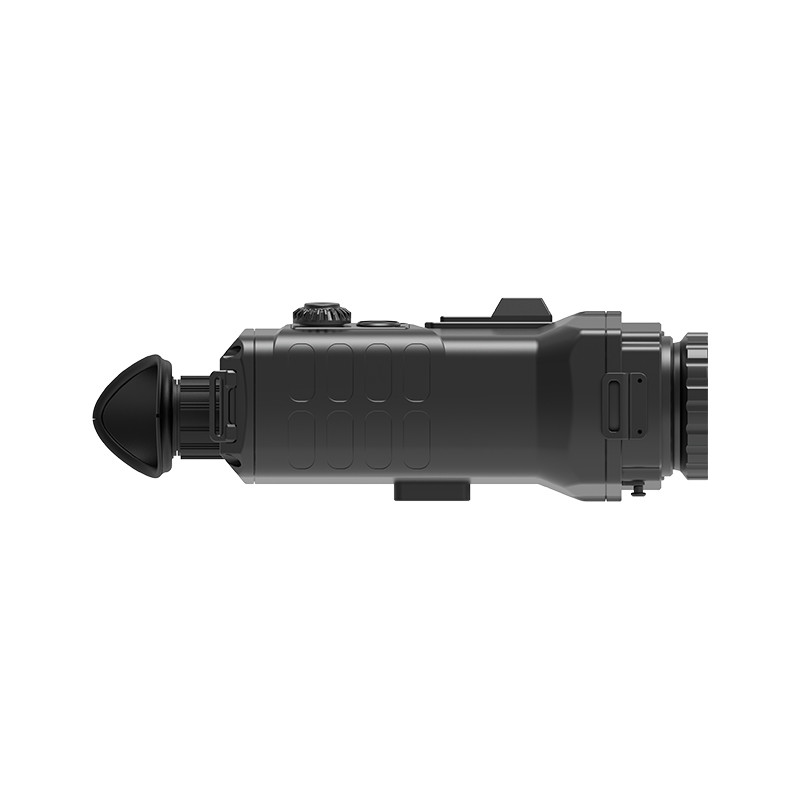

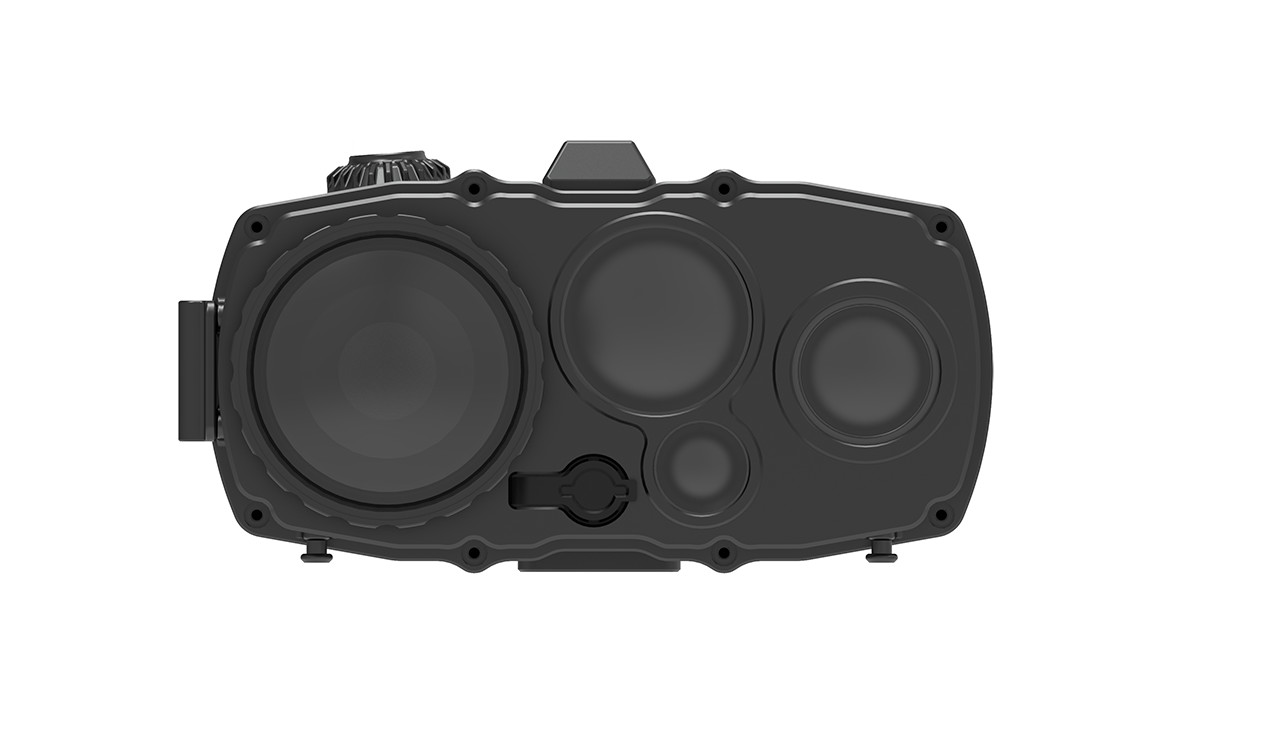

Handheld Laser Ranger Telescope Multi Function Binocular

  • Handheld Laser Ranger Telescope Multi Function Binocular
  • Handheld Laser Ranger Telescope Multi Function Binocular
  • Handheld Laser Ranger Telescope Multi Function Binocular
  • Handheld Laser Ranger Telescope Multi Function Binocular
Place of Origin China
Brand Name Particle
Model Number MLR6000
Price $12,346
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Range（Under The Condition Of Visibility Of 12km） Minimum≤20m，maximum≥6000m Deviation ≤2m（2km～6km），≤1m（20m～2km）
Efficiency ≥98% Working Temperature -40℃～+55℃
Item Color Black Battery Lithium Battery
Daytime Recognition Distance ≥6km (Visibility Not Less Than 12km, For Medium-sized Trucks) Night Recognition Distance ≥1km (Visibility Not Less Than 8km, Illumination Is 5×10-3lx, For Medium-sized Trucks)
Repeat Frequency ≥1Hz Scanning Frequency ≥5Hz
Wavelength Eye Safety，1535nm Visible-Light FOV 3°（H）×2.2°（V）
Low-Light FOV 9°（H）×6.7°（V） Azimuth Accuracy ≤0.5°（RMS）
Weight ≤1.6kg（Include Batteries） Working Time ≥6h
Diopter -5SD～+2SD Operating Temperature -40℃～+55℃
Highlight

Handheld Binocular

,

Multi Function Binocular

,

1535nm Laser Ranger Telescope
Leave a Message
Product Description



Multi-Function Binocular Handheld Laser Ranger Telescope



Applications



The JP MLR6000 is a multi-functional binocular handheld ranging device, which integrates high-precision laser ranging module, low-light camera, visible light camera, electronic compass, etc. It can observe the target at a long distance and accurately measure the distance no matter day or night, It can also measure the relative distance between targets, and supports functions such as night vision observation, fog-penetration, digital zoom.



Functionality



  • Support day light and night vision dual-mode observation；
  • Support relative distance measurement between targets；
  • With single, continuous and Scan-Ranging functions；
  • Target distance reappearance；
  • External trigger ranging；
  • Image Contrast Adjustment；
  • Display Brightness Adjustment；
  • Fog-penetration function；
  • Optical zoom (manual)；
  • Support video recording, photo taking and local browsing.



Features



  • Available day and night；
  • Integrate multiple functions into one;
  • Wide ranging range and high accuracy；
  • Ability to display the relative distance between targets；
  • You can use the distance measurement function without touching the device;
  • Targets that have been measured in the past can directly reappearance their distance values.



Technical Parameters





Daytime Recognition Distance, km

≥6 (Visibility not less than 12km, for medium-sized trucks)

Night Recognition Distance, km

≥1 (Visibility not less than 8km, illumination is 5×10-3lx, for medium-sized trucks)

Range(Under the condition of visibility of 12km), m

Minimum≤20,maximum≥6000

Deviation, m

≤2(2km～6km),≤1(20m～2km)

Efficiency

≥98%

Repeat Frequency, Hz

≥1

Scanning Frequency, Hz

≥5

Wavelength, nm

Eye Safety,1535

Visible-Light FOV, °

3(H)×2.2(V)

Low-Light FOV, °

9(H)×6.7(V)

Azimuth Accuracy, °

≤0.5(RMS)

Weight, kg

≤1.6(Include batteries)

Working Time, h

≥6

Diopter, SD

-5～+2

Operating Temperature, ℃

-40℃～+55



MLR6000 Details
