Anti Sniper Detection Equipment With Detection Interference Visual Reconnaissance

  • Anti Sniper Detection Equipment With Detection Interference Visual Reconnaissance
  • Anti Sniper Detection Equipment With Detection Interference Visual Reconnaissance
Place of Origin China
Brand Name Particle
Model Number GLS1000
Minimum Order Quantity 1
Price $12,346
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Repeat Frequency 1Hz E-Compass Pitch ±90°
Main Body Dimension ≤180×110×290mm Memory Card 32G
Support Digital Zoom Operating Temperature -40℃～+55℃
Laser Detection Capability - Daytime ≥1200m(20mmx＜Objective Lens＜50mm)；≥2500m(Objective Lens≥50mm) Laser Wavelength ≥800nm
Weight ≤3kg Dimension ≤180×110×290mm
Boot Time ≤5s Battery Life ≥4h（normal Temperature）
Sensor Resolution 1920×1080 Objective Lens F1.4，80mm
Field Of View（FOV） ≥8︒（H）×6︒（V） Digital Zoom 1×～4×
Diopter -4SD～+5SD Daytime Observation Distance ≥1000m（human）
Night Observation Distance ≥350m（human） Laser Detection Capability（Daytime) ≥1200m（20mmx＜Objective Lens＜50mm）； ≥2500m（Objective Lens≥50mm）
Laser Detection Capability（Night) ≥1800m（20mm＜Objective Lens＜50mm）； ≥4000m（Objective Lens≥50mm） Discovery Probability（Automatic） ≥90%
Detection FOV ≥3︒ Laser Power Density 0.5mW/cm2～1.25mW/cm2
Safety Distance ≤50m（Does Not Emit Interference Laser For Targets Within 50m） Laser Range 50m～1500m(For Human)
Laser Range Accuracy ±2m Laser Range Correct Rate ≥98%
E-Compass Azimuth 0~360° E-Compass Angle Measurement Accuracy ≤0.5°（RMS，tilt Range：-15°～15°）
Highlight

Visual Reconnaissance Anti Sniper

,

Detection Interference Anti Sniper

,

Anti Sniper Detection Equipment
Leave a Message
Product Description

Anti-Sniper Detection Equipment With Detection/ Interference/Visual Reconnaissance



Applications



The JP GLS1000 handheld "cat's eye" detection device is engineered on the "cat's eye" effect principle, integrating capabilities of reconnaissance, detection, and counteraction. It combines a low-light camera, laser detection unit, and laser counteraction unit for effective day and night surveillance. The device actively uses invisible lasers to scan suspicious areas, immediately capturing any optoelectronic devices. With specially developed algorithms, it filters out background noise and highlights suspicious targets. Its built-in laser suppression system allows users to lock on and fire high-power lasers to temporarily disable threats. Enhanced by a laser ranging unit and digital compass, the JP GLS1000 provides precise data on target distance, azimuth, and pitch angle, aiding in the quick identification and neutralization of threats, making it ideal for detecting optical equipment and hidden snipers.



Function



  • Search for suspicious targets of using optical equipment in the target area during the day and night;
  • Support laser ranging;
  • Support manual/automatic laser counteraction;
  • Support taking picture and recording videos;
  • Support digital zoom;
  • Support image brightness, contrast and exposure adjustment;
  • Azimuth data display;
  • Low battery warning;
  • Battery reverse polarity protection;
  • Boot self-test;
  • Counteraction-Laser has power-on insurance and work warning functions;
  • Capable to automatically adjust laser spot power density;



Features



  • Highly integrated, integrate multiple functions all in one;
  • Available day and night;
  • Protection class IP67;
  • It can be used in a wide range of environments, such as deserts, coastal areas, plateaus and other harsh environments;
  • Unique target recognition algorithm software to enhance detection probability;
  • Long battery life, meeting the needs of long-term field use;



Technical Parameters



    Main Body

Weight, kg

≤3

Dimension, mm

≤180×110×290

Boot Time, s

≤5

Battery Life,h

≥4(normal temperature)

Operating Temperature, ℃

-40～+55

Memory Card, G

32
    Optical Performance

Sensor Resolution

1920×1080

Objective Lens, mm

F1.4,80

Field of View(FOV)

≥8︒(H)×6︒(V)

Digital Zoom, ×

1～4

Diopter, SD

-4～+5

Daytime Observation Distance, m

≥1000(human)

Night Observation Distance, m

 ≥350(human)
    Laser Detection Capability

Daytime

≥1200m(20mmx＜Objective Lens＜50mm)≥2500m(Objective Lens≥50mm)

Night

≥1800m(20mm＜Objective Lens＜50mm)≥4000m(Objective Lens≥50mm)

Discovery Probability(Automatic)

≥90%

Detection FOV, ︒

≥3

Laser Wavelength, nm

 ≥800
    Laser Counteraction Performance

Laser Power Density

0.5mW/cm2～1.25mW/cm2

Safety Distance

 ≤50m(Does not emit interference laser for targets within 50m)
    Laser Ranging Performance

Range, m

50～1500(For human)

Range Accuracy, m

±2

Correct Rate

≥98%

Repeat Frequency, Hz.

 1
    E-Compass

Azimuth, °

0~360

Pitch, °

±90

Angle Measurement Accuracy, °

 ≤0.5(RMS,tilt range:-15°～15°)

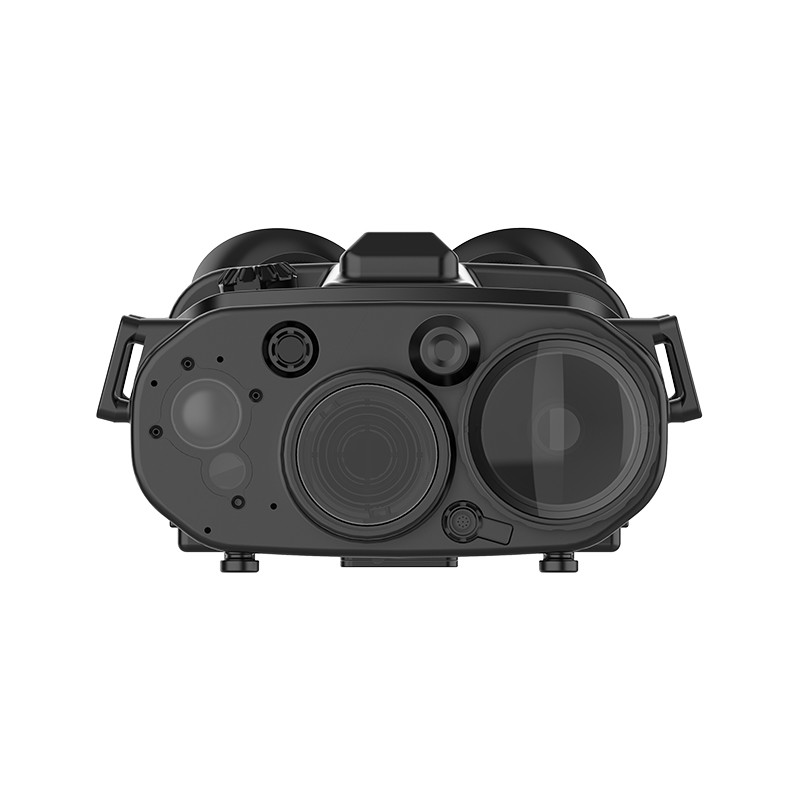

JP GLS1000 Details



Anti Sniper Detection Equipment With Detection Interference Visual Reconnaissance 0
