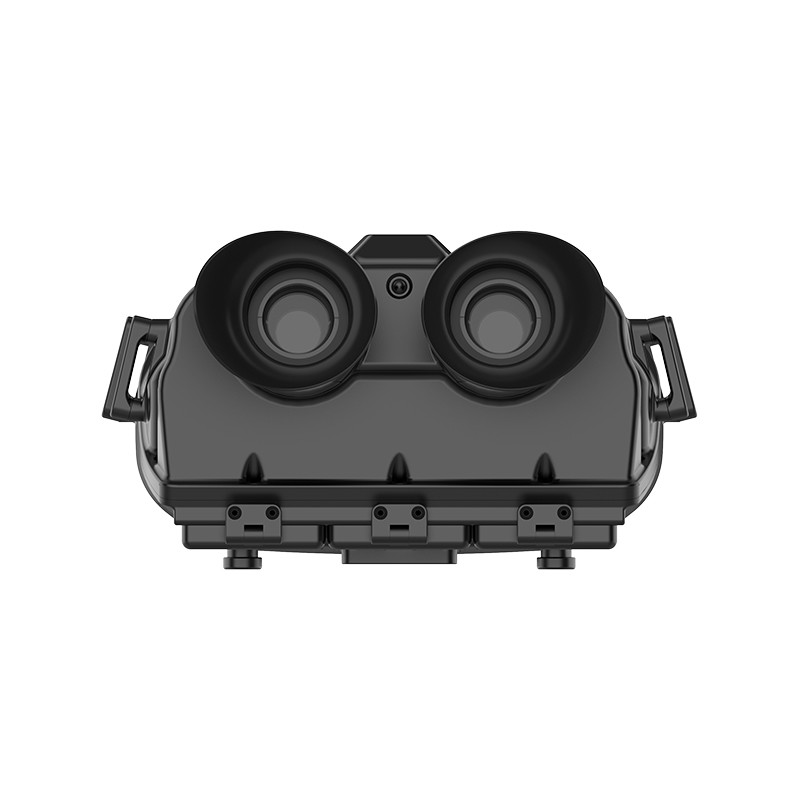

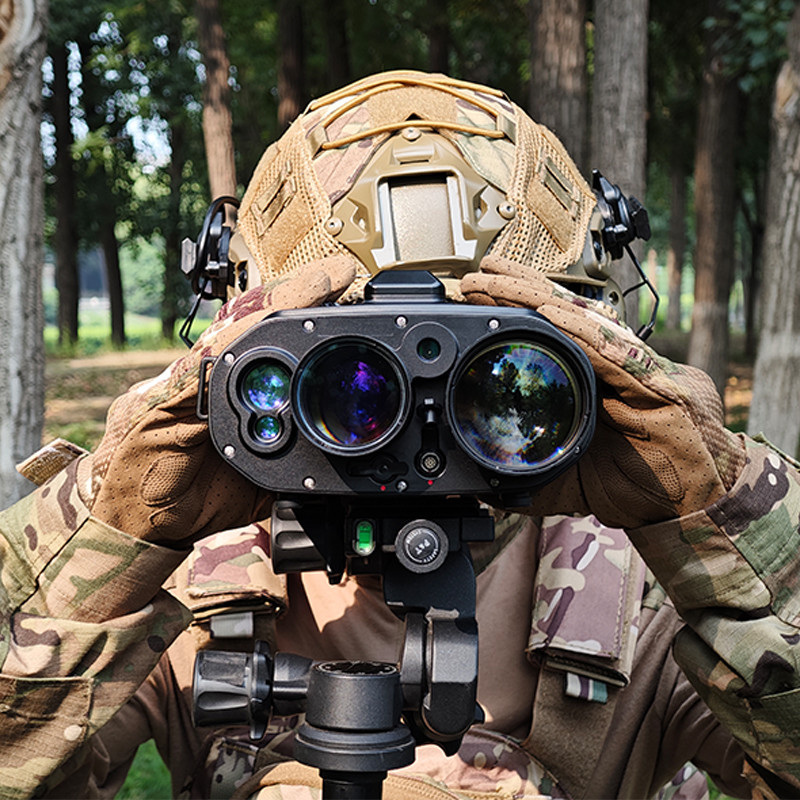

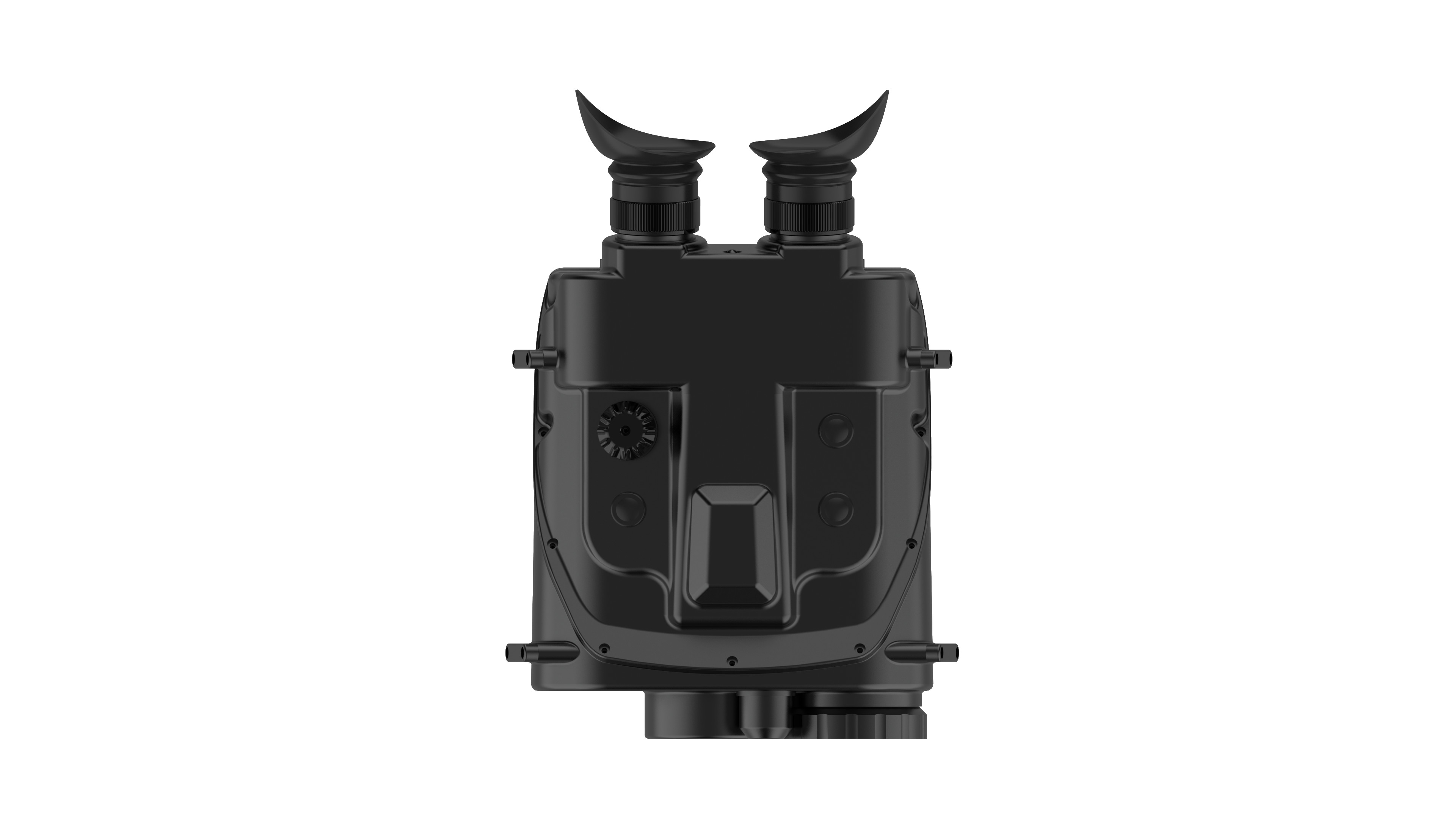

Anti Surveillance Detection Binoculars For Reconnaissance Detection Counteraction

  • Anti Surveillance Detection Binoculars For Reconnaissance Detection Counteraction
  • Anti Surveillance Detection Binoculars For Reconnaissance Detection Counteraction
  • Anti Surveillance Detection Binoculars For Reconnaissance Detection Counteraction
Place of Origin China
Brand Name Particle
Model Number GLS1000
Minimum Order Quantity 1
Price $12,346
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model GLS 1000 Field Of View ≥8︒（H）×6︒（V）
Waterproof Yes Dimension ≤180×110×290mm
Memory Card 32G Weight ≤3kg
Boot Time ≤5s Battery Life ≥4h（normal Temperature）
Operating Temperature -40℃～+55℃ Sensor Resolution 1920×1080
Objective Lens F1.4，80mm Field Of View（FOV） ≥8︒（H）×6︒（V）
Digital Zoom 1×～4× Diopter -4SD～+5SD
Daytime Observation Distance ≥1000m（human） Night Observation Distance ≥350m（human）
Laser Detection Capability（Daytime) ≥1200m（20mmx＜Objective Lens＜50mm）； ≥2500m（Objective Lens≥50mm） Laser Detection Capability（Night) ≥1800m（20mm＜Objective Lens＜50mm）； ≥4000m（Objective Lens≥50mm）
Discovery Probability（Automatic） ≥90% Detection FOV ≥3︒
Laser Wavelength ≥800nm Laser Power Density 0.5mW/cm2～1.25mW/cm2
Safety Distance ≤50m（Does Not Emit Interference Laser For Targets Within 50m） Laser Range 50m～1500m(For Human)
Laser Range Accuracy ±2m Laser Range Correct Rate ≥98%
Repeat Frequency 1Hz E-Compass Azimuth 0~360°
E-Compass Pitch ±90° E-Compass Angle Measurement Accuracy ≤0.5°（RMS，tilt Range：-15°～15°）
Highlight

Detection binoculars

,

Anti Surveillance binoculars

,

Waterproof binocular
Leave a Message
Product Description

Anti-Surveillance Detection Binoculars For Reconnaissance, Detection / Counteraction



Applications



The JP GLS1000 is a handheld "cat's eye" detection device developed based on the "cat's eye" effect principle that integrates reconnaissance, detection and counteraction. It combines low-light camera, laser detection unit and laser counteraction unit, which can surveillance the surrounding environment day and night, actively irradiate invisible lasers to scan suspicious areas, and if there are suspicious optoelectronic devices, they can be captured first time. To this end, we have developed a set of special process algorithms that can effectively filter background noise and highlight suspicious targets to help users further identify them. A laser suppression system is build-in it, so that after the user locks on the target, he can manually or automatically fire high-power laser to counter it, causing it to temporarily lose its ability to attack. Its built-in laser ranging unit and digital compass unit also give it stronger environmental awareness capabilities. Obtaining target distance, azimuth, pitch angle and other data can help users quickly lock on targets that pose threats, provide required information for security department to eliminate threats.

The product is mainly used to search and detect which suspicious target of using optical equipment for timely implementation of laser jamming and suppression. It can also be used to find hidden snipers.



Function



  • Search for suspicious targets of using optical equipment in the target area during the day and night;
  • Support laser ranging;
  • Support manual/automatic laser counteraction;
  • Support taking picture and recording videos;
  • Support digital zoom;
  • Support image brightness, contrast and exposure adjustment;
  • Azimuth data display;
  • Low battery warning;
  • Battery reverse polarity protection;
  • Boot self-test;
  • Counteraction-Laser has power-on insurance and work warning functions;
  • Capable to automatically adjust laser spot power density;



Features



  • Highly integrated, integrate multiple functions all in one;
  • Available day and night;
  • Protection class IP67;
  • It can be used in a wide range of environments, such as deserts, coastal areas, plateaus and other harsh environments;
  • Unique target recognition algorithm software to enhance detection probability;
  • Long battery life, meeting the needs of long-term field use;



Technical Parameters



    Main Body

Weight, kg

≤3

Dimension, mm

≤180×110×290

Boot Time, s

≤5

Battery Life,h

≥4(normal temperature)

Operating Temperature, ℃

-40～+55

Memory Card, G

32
    Optical Performance

Sensor Resolution

1920×1080

Objective Lens, mm

F1.4,80

Field of View(FOV)

≥8︒(H)×6︒(V)

Digital Zoom, ×

1～4

Diopter, SD

-4～+5

Daytime Observation Distance, m

≥1000(human)

Night Observation Distance, m

 ≥350(human)
    Laser Detection Capability

Daytime

≥1200m(20mmx＜Objective Lens＜50mm)≥2500m(Objective Lens≥50mm)

Night

≥1800m(20mm＜Objective Lens＜50mm)≥4000m(Objective Lens≥50mm)

Discovery Probability(Automatic)

≥90%

Detection FOV, ︒

≥3

Laser Wavelength, nm

 ≥800
    Laser Counteraction Performance

Laser Power Density

0.5mW/cm2～1.25mW/cm2

Safety Distance

 ≤50m(Does not emit interference laser for targets within 50m)
    Laser Ranging Performance

Range, m

50～1500(For human)

Range Accuracy, m

±2

Correct Rate

≥98%

Repeat Frequency, Hz.

 1
    E-Compass

Azimuth, °

0~360

Pitch, °

±90

Angle Measurement Accuracy, °

 ≤0.5(RMS,tilt range:-15°～15°)





JP GLS1000 Details



Anti Surveillance Detection Binoculars For Reconnaissance Detection Counteraction 0
