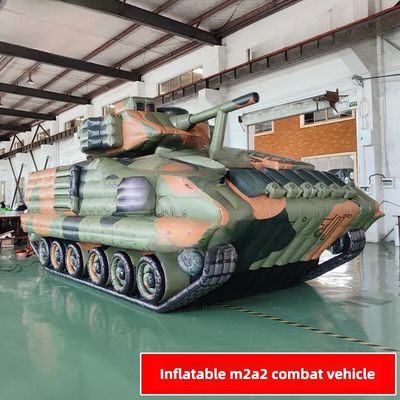

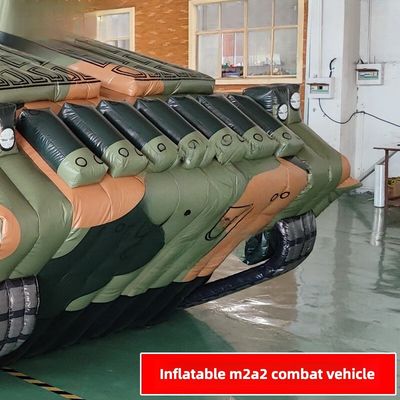

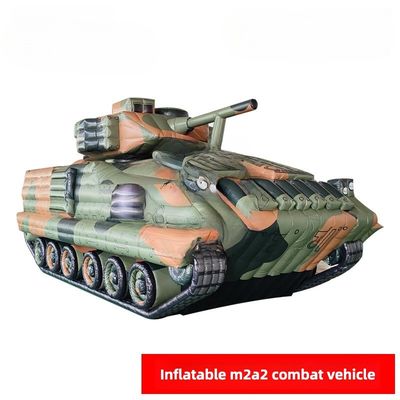

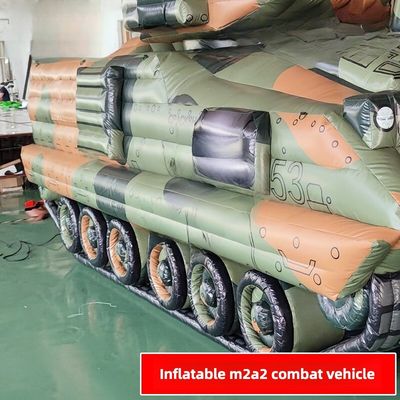

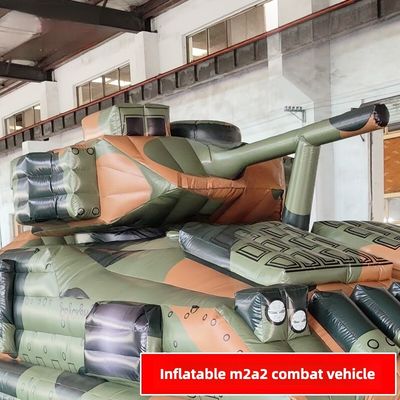

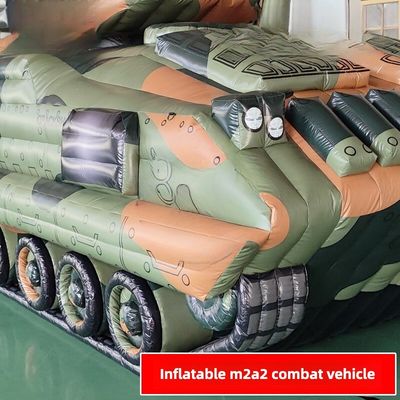

Inflatable False Target Field Military Training Simulation Target Outdoor Simulation Exercise Camouflage Model

Inflatable targets cover six major fields:

1. Ground targets
2. Maritime targets
3. Airspace targets
4. Long - range targets
5. Training support
6. Training assistance

Six performance characteristics of inflatable targets:

1. Remote - controlled intelligent system (Utility model patent: CN202322631283.7)
   Characteristic 1: It can be remotely controlled within the signal coverage.
   Characteristic 2: One - key inflation and deflation can achieve the effect of appearing and disappearing.
   Characteristic 3: There are two working modes: manual and automatic.
   Characteristic 4: It can automatically detect the internal air pressure of the target. When the air pressure is high, it will deflate automatically; when the air pressure is low, it will inflate automatically.
   Characteristic 5: It has a remote alarm function. When the air pressure of the target is abnormal or there is an equipment failure, both the handheld terminal and the local system will give audible and visual alarms.
2. Radar - detecting metal film material
   Characteristic 1: The film material covers metal - characteristic materials.
   Characteristic 2: It has a strong response when detected by a metal detector.
   Characteristic 3: The film material is resistant to stretching, breaking, tearing, fire - retardant, and its coating wear - resistance is more than 400 times.
   Characteristic 4: The surface density of the film material is 364G per square meter, featuring light weight and high strength.
   Characteristic 5: When detected by SAR radar waves, it can effectively detect the shape and outline of the target.
3. Infrared - detecting heat source module
   Characteristic 1: The heat source maintains a constant temperature of 95 degrees, which is higher than the ambient temperature and similar to the thermal infrared contour of real equipment. It can be used immediately after power - on, which is convenient and fast.
   Characteristic 2: The size of the heat source can be customized, and it can simulate heat sources at special parts of the target, such as wheels, engines, generators, exhaust pipes, gun barrels, radar panels, etc.
   Characteristic 3: The heat source is waterproof and fire - retardant, suitable for field operations. At the same time, it has a small power and low power consumption.
4. Three - proof camouflage net
   Characteristic 1: It protects visible light waves from 380 - 760NM.
   Characteristic 2: It protects infrared light from 760NM - 1200NM.
   Characteristic 3: It protects mid - and far - infrared light from 3 - 5UM - 8 - 14UM.
   Characteristic 4: It effectively protects against radars in S - band (2GHZ - 4GHZ), C - band (4GHZ - 8GHZ), and X - band (8GHZ - 12GHZ).
5. Simulation camouflage painting
   Characteristic 1: The camouflage pattern is sprayed using a photo - inkjet printer to ensure the resolution and clarity of the camouflage.
   Characteristic 2: The camouflage spray - painting AI source file is made according to the GJB camouflage style requirements.
   Characteristic 3: Color matching is carried out before spraying the camouflage, and the closest camouflage color is determined according to the Pantone C - card.
   Characteristic 4: Lamination treatment is carried out to prevent aging and increase the service life.
6. Target installation and withdrawal
   Characteristic 1: The target material is sturdy and can be installed and used without special requirements.
   Characteristic 2: The target only needs to be powered and inflated, which is fast and convenient for quick setup and deployment.
   Characteristic 3: The target is equipped with ropes, ground pins, hammers, etc., which can be used violently, and the accessories are not easy to damage.
   Characteristic 4: The target can be withdrawn quickly. It is equipped with 4 - 8 deflation ports, each 1 - meter - long, for rapid deflation and quick transfer
