Black Uncooled Infrared Telescope With IR Detector 640x512 12um

  • Black Uncooled Infrared Telescope With IR Detector 640x512 12um
  • Black Uncooled Infrared Telescope With IR Detector 640x512 12um
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
IR Detector 640×512@12um CMOS Sensor 2592×1944@2.7um
Laser Ranging Minimum Range ≥50km Digital Zoom 1×~4×
Diopter -4SD～+4SD Operating Temperature -40℃～+55℃
Customized Support OED,ODM,OBM Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector 640×512@12um Infrared Focal Length 70mm
FOV ≥6.3°×5.0° Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution 2592×1944@2.7um Visible Light Focal Length 105mm
Visible Light Focal Length Adaptation Range 50m～∞ Visible Light ≥3.2°×2.4°
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Working Time（Room Temperature） ≥10h Memory Storage 32G
IP Grade IP67 Weight ≤1.6kg
External Interface Data USB External Interface Video PAL
Communication RS232 Interface Type Reserved Picatinny Rail
Defog Support
Highlight

Black Uncooled Infrared Telescope

,

640x512 Uncooled Infrared Telescope

,

12um Uncooled Infrared Telescopes
Leave a Message
Product Description

Black Uncooled Infrared Telescope with IR Detector 640×512 12um



APPLICATIONS

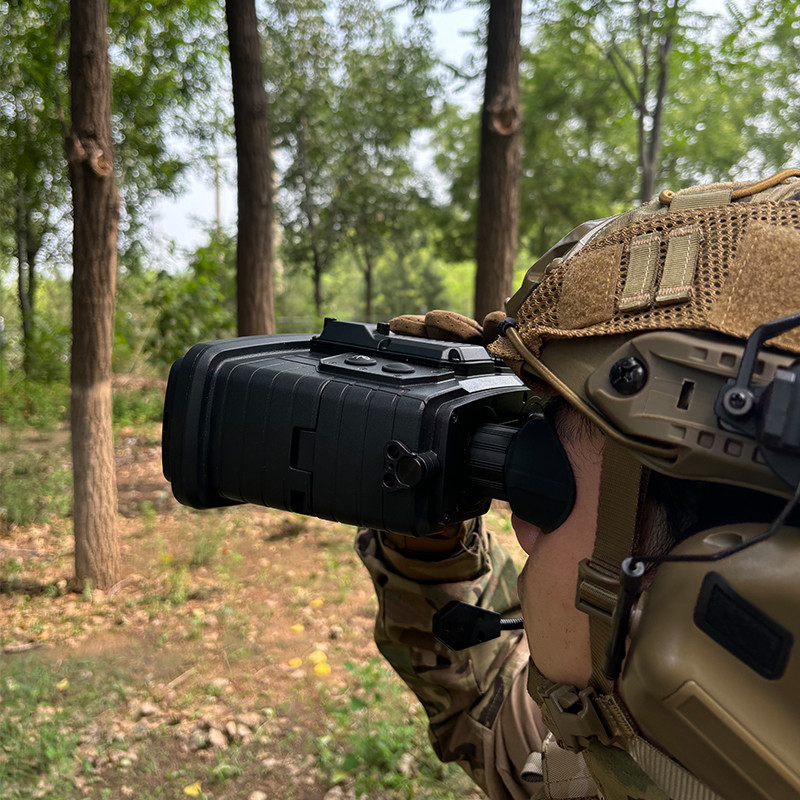

Experience the advanced capabilities of the JP NVD3000, a binocular handheld uncooled thermal imaging telescope. With its built-in thermal imaging detector and visible light sensor, users can effortlessly switch between thermal and visible light images. The device includes satellite positioning, laser ranging, and an electronic compass for accurate self-positioning and target data calculation. Designed for field observation, surveillance, and target location acquisition, the JP NVD3000 is suitable for a wide range of applications.



TECHNICAL PARAMETERS



    Product model

NVD3000

    Infrared

Mid-Size Vehicle,km

≥2.8

Standing Man,km

≥1

Infrared detection resolution,Pixel@um

640×512@12um

Lens focal length,mm

70

Infrared FOV,°

≥6.3×5.0

    Visible Light

Mid-Size Vehicle,km

≥6.6

Standing Man,km

≥3

Resolution,Pixel@um

2592×1944@2.7um

Focal Length,mm

105

Focal Length Adaptation Range,m

50～∞

Visible FOV,°

≥3.2×2.4

Defog

Support

    Laser Ranging

Minimum Range,m

≤50

Maximum Range,km

≥6

Precision,m

≤2

Repeat Frequency,Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured

Laser Wavelength

Human eye safety band

    Positioning Orientation

Positioning Precision,m

≤7(CEP),≤10(PE)

Magnetic Azimuth,°

≤0.5(RMS)

Target Positioning Accuracy,m

at 2km of the distance,≤20(CEP)

    Other

Diopter,SD

-4～+4

Digital zoom,×

1~4

Working Time(Room temperature,h

≥10

Memory Storage,G

32

Operating Temperature,℃

-40～+55

IP Grade

IP67

Weight,kg

≤1.6



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



PRODUCT DETAILS



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 1


► Supports guided search function after entering target coordinates



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 2



► PIP



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 3


► Supports fog penetration function in visible light (color, black and white) observation mode



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 4


► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 5


► Relative ranging function supports relative distance calculation between targets



Black Uncooled Infrared Telescope With IR Detector 640x512 12um 6
