Uncooled Thermal Scope For Infrared Detection Resolution 640x512

  • Uncooled Thermal Scope For Infrared Detection Resolution 640x512
  • Uncooled Thermal Scope For Infrared Detection Resolution 640x512
  • Uncooled Thermal Scope For Infrared Detection Resolution 640x512
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Multi-function Uncooled Thermal Imaging Binoculars For Outdoor Adventures IR Detector 640×512@12um
Laser Ranging Minimum Range ≥6000m Visible FOV ≥3.2°×2.4°
Diopter -4SD～+4SD Color Black
Weight ≤1.6kg Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector 640×512@12um Infrared Focal Length 70mm
FOV ≥6.3°×5.0° Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution 2592×1944@2.7um Visible Light Focal Length 105mm
Visible Light Focal Length Adaptation Range 50m～∞ Visible Light ≥3.2°×2.4°
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Digital Zoom 1×~4× Working Time（Room Temperature） ≥10h
Memory Storage 32G Operating Temperature -40℃～+55℃
IP Grade IP67 External Interface Data USB
External Interface Video PAL Communication RS232
Interface Type Reserved Picatinny Rail Defog Support
Highlight

Uncooled Thermal Scope

,

640x512 Thermal Scope

,

Thermal Scopes 640x512
Leave a Message
Product Description

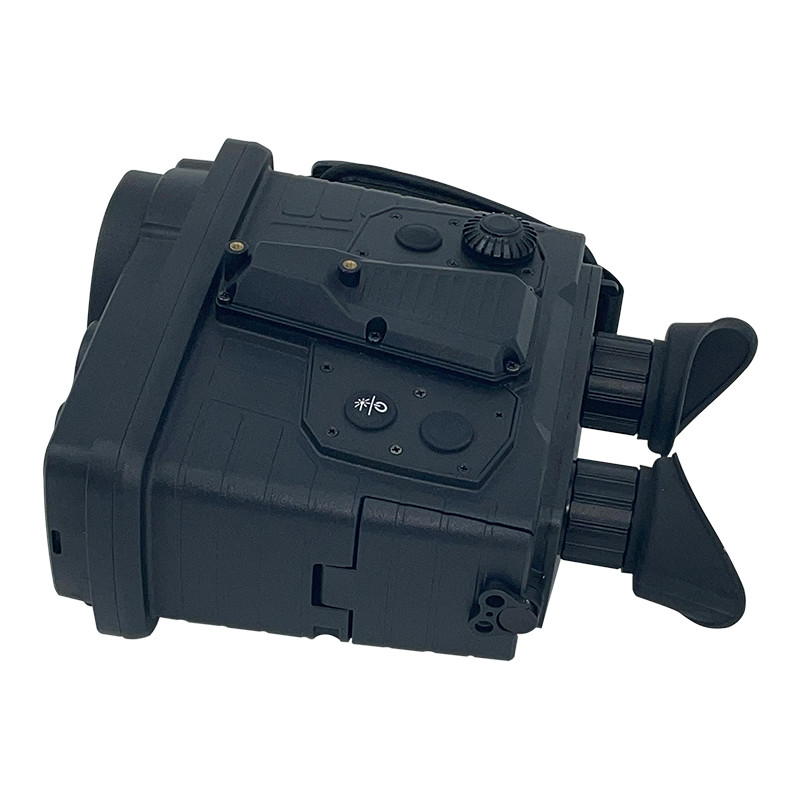

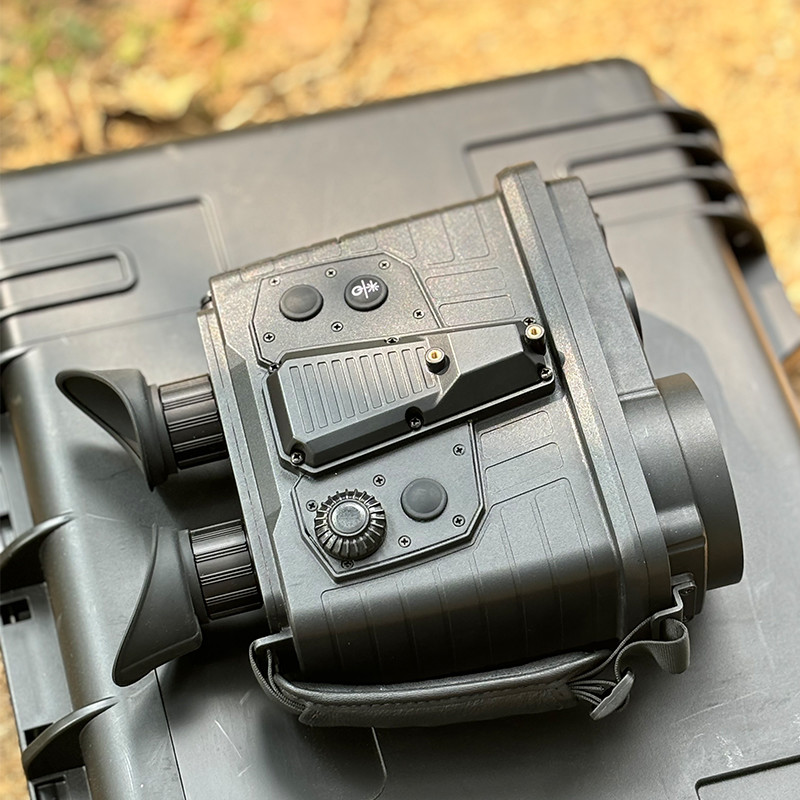

Uncooled Thermal Scope for Infrared Detection Resolution 640×512



APPLICATIONS



The JP NVD3000 binocular handheld uncooled thermal imaging telescope is a powerful tool for diverse applications. It features a thermal imaging detector and a visible light sensor, enabling easy switching between thermal and visible light images. The device integrates satellite positioning, laser ranging, and an electronic compass for precise self-positioning and target positioning. Ideal for field observation, surveillance, and target location acquisition, the JP NVD3000 meets the needs of users in various environments.



Technical Parameters



  Product model

NVD3000

  Infrared

Mid-Size Vehicle, km

≥2.8

Standing Man, km

≥1

Infrared detection resolution, Pixel@um

640×512@12um

Lens focal length, mm

70

Infrared FOV, °

≥6.3×5.0

  Visible Light

Mid-Size Vehicle, km

≥6.6

Standing Man, km

≥3

Resolution, Pixel@um

2592×1944@2.7um

Focal Length, mm

105

 Focal Length Adaptation Range, m

50～∞

Visible FOV, °

≥3.2×2.4

Defog

Support

  Laser Ranging

Minimum Range, m

≤50

Maximum Range, km

≥6

Precision, m

≤2

Repeat Frequency, Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured；

Laser Wavelength

Human eye safety band；

  Positioning Orientation

Positioning Precision, m

≤7(CEP), ≤10(PE)

Magnetic Azimuth, °

≤0.5(RMS)

Target Positioning Accuracy, m

at 2km of the distance≤20(CEP)

  Other

Diopter, SD

-4～+4

Digital zoom, ×

1~4

Working Time(Room temperature), h

≥10

Memory Storage, G

32

Operating Temperature, ℃

-40～+55

IP Grade

IP67

Weight, kg

≤1.6



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



Product Details



Uncooled Thermal Scope For Infrared Detection Resolution 640x512 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized



Uncooled Thermal Scope For Infrared Detection Resolution 640x512 1


► Supports guided search function after entering target coordinates



Uncooled Thermal Scope For Infrared Detection Resolution 640x512 2



► PIP



Uncooled Thermal Scope For Infrared Detection Resolution 640x512 3

► Supports fog penetration function in visible light (color, black and white) observation mode

Uncooled Thermal Scope For Infrared Detection Resolution 640x512 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target

Uncooled Thermal Scope For Infrared Detection Resolution 640x512 5


► Relative ranging function supports relative distance calculation between targets



Uncooled Thermal Scope For Infrared Detection Resolution 640x512 6
