Handheld Multifunctional Infrared Night Vision Telescope For Surveillance

  • Handheld Multifunctional Infrared Night Vision Telescope For Surveillance
  • Handheld Multifunctional Infrared Night Vision Telescope For Surveillance
  • Handheld Multifunctional Infrared Night Vision Telescope For Surveillance
  • Handheld Multifunctional Infrared Night Vision Telescope For Surveillance
Place of Origin China
Brand Name Particle
Model Number NVD3000
Minimum Order Quantity 1 Piece
Price $17,000
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Multi-Function Uncooled Thermal Image Telescope Application Outdoor,Law Enforcement Evidence Collection,Fire Patrol
Customized Support OED,ODM,OBM Warranty 1 Year
Color Black IR Detector 640×512@12um
CMOS Sensor 2592×1944@2.7um LRF 50m~6000m
Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km Infrared Detector 640×512@12um
Infrared Focal Length 70mm FOV ≥6.3°×5.0°
Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km Visible Light Resolution 2592×1944@2.7um
Visible Light Focal Length 105mm Visible Light Focal Length Adaptation Range 50m～∞
Visible Light ≥3.2°×2.4° Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz
Laser Ranging Logic Select To Display The First Or Last Target Capability Measured Laser Ranging Wavelength Human Eye Safety Band
Positioning Precision ≤7m（CEP），≤10m（PE） Magnetic Azimuth ≤0.5°（RMS）
Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP） Diopter -4SD～+4SD
Digital Zoom 1×~4× Working Time（Room Temperature） ≥10h
Memory Storage 32G Operating Temperature -40℃～+55℃
IP Grade IP67 Weight ≤1.6kg
External Interface Data USB External Interface Video PAL
Communication RS232 Interface Type Reserved Picatinny Rail
Defog Support
Highlight

Multifunctional infrared night vision telescope

,

Handheld infrared night vision telescope

,

Surveillance night vision telescope
Leave a Message
Product Description

Thermal Imaging Visible Light Laser Ranging Multifunctional Day And Night Binoculars



APPLICATIONS

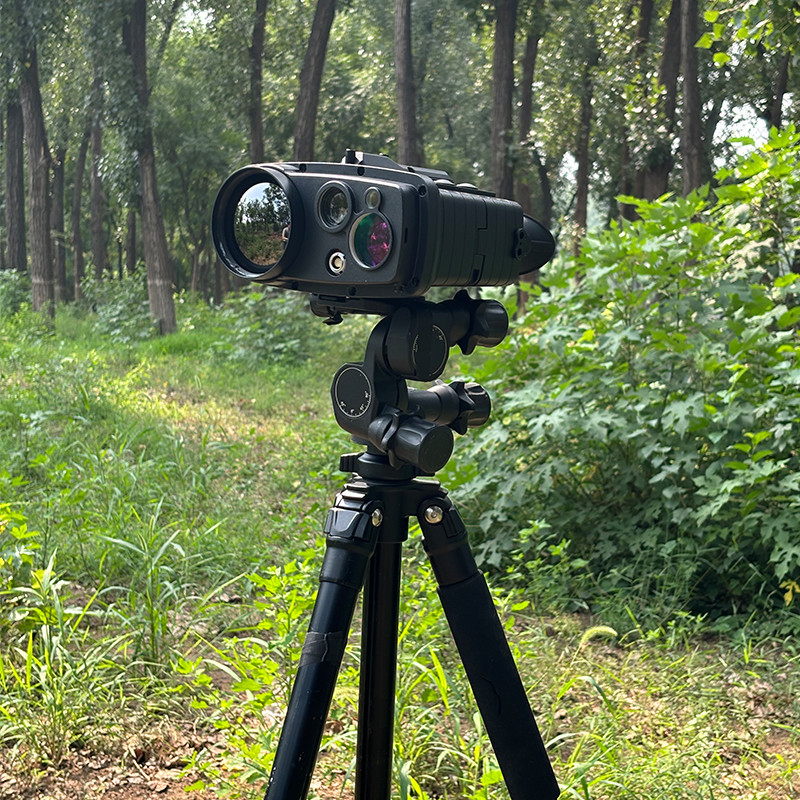

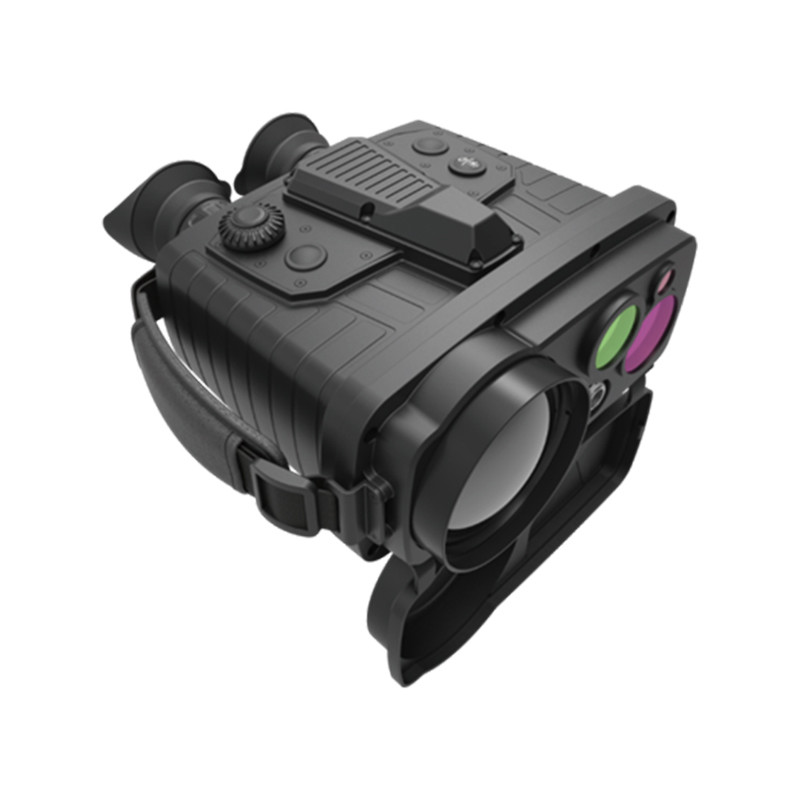

The NVD3000 is a binocular handheld uncooled thermal imaging telescope tailored for versatile applications. It combines a thermal imaging detector with a visible light sensor, allowing users to effortlessly switch between thermal and visible light images. Equipped with satellite positioning, laser ranging modules, and an electronic compass, the NVD3000 ensures accurate self-positioning and target positioning data. This device is ideal for field observation, surveillance, and the acquisition of target location information, making it a top choice for target identification and search guidance.

Technical Parameters:

Product model NVD3000
Infrared
Mid-Size Vehicle ≥2.8km
Standing Man ≥1km
Infrared detection resolution 640×512@12um
Lens focal length 70mm
Infrared FOV ≥6.3°×5.0°
Visible Light
Mid-Size Vehicle ≥6.6km
Standing Man ≥3km
Resolution 2592×1944@2.7um
Focal Length 105mm
Focal Length Adaptation Range 50m～∞
Visible FOV ≥3.2°×2.4°
Defog Support
Laser Ranging
Minimum Range ≤50m；
Maximum Range ≥6km；
Precision ≤2m；
Repeat Frequency ≥0.5Hz；
Ranging Logic Select to display the first or last target capability measured；
Laser Wavelength Human eye safety band；
Positioning Orientation
Positioning Precision ≤7m(CEP),≤10m(PE)
Magnetic Azimuth ≤0.5°(RMS)
Target Positioning Accuracy at 2km of the distance,≤20m(CEP)
Other
Diopter -4SD～+4SD；
Digital zoom 1×~4×；
Working Time(Room temperature ≥10h
Memory Storage 32G；
Operating Temperature -40℃～+55℃；
IP Grade IP67；
Weight ≤1.6kg；



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



NVD 3000 Details:



Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 1

► Supports guided search function after entering target coordinates
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 2

► PIP
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 3

► Supports fog penetration function in visible light (color, black and white) observation mode
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 5

► Relative ranging function supports relative distance calculation between targets
Handheld Multifunctional Infrared Night Vision Telescope For Surveillance 6
