Infrared Multifunctional Handheld Electronic Night Vision For Patrol Inspection And Key Area Monitoring

  • Infrared Multifunctional Handheld Electronic Night Vision For Patrol Inspection And Key Area Monitoring
  • Infrared Multifunctional Handheld Electronic Night Vision For Patrol Inspection And Key Area Monitoring
Place of Origin China
Brand Name JP
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Binocular Color Black
Weight ≤1.2kg IR Detector 640×512@17um
CCD 800×600@18um Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck)
Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
IR Detector Resolution 640×512@17um IR Detector Focus Lens 35mm
Sensor（CCD）- Resolution 800×600@18um Sensor (CCD)- Focus Lens 50mm
FOV ≥16°×12° Interface PAL、USB
Battery 18650 Storage 32G（Nominal）
Battery Life ≥6h（Normal Temperature） Operating Temperature -40℃～+55℃
IP Grade IP67 Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color
Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode
Video Recording Supported Photo Taking Supported
Local Browsing And Export Supported Image Contrast Adjustable 1-10
Display Brightness Adjustable 1-10 Digital Zoom Function 1×，2×
Anti-light Leakage Function Supported
Highlight

Multifunctional electronic night vision

,

Handheld electronic night vision

,

Infrared digital nvg goggles
Leave a Message
Product Description

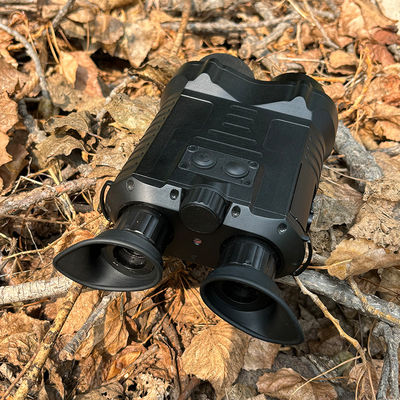

Multifunctional Handheld Infrared Night Vision

for Patrol Inspection and Key Area Monitoring





APPLICATIONS



The JP NVD1000 fusion telescope is an advanced optical device that seamlessly integrates thermal imaging and visible light images into a single display using sophisticated software algorithms. This fusion processing allows users to clearly detect and identify heat sources while simultaneously observing the detailed background environment. The resulting image features clear layers and prominently highlighted main targets, making it ideal for a variety of applications including patrol inspections, sentry duties, and monitoring key areas. Its capabilities shine under challenging conditions such as alternating light and dark areas and complex backgrounds. The JP NVD1000 assists users in performing tasks like covert surveillance, mobile detection, screening and tracking, rapid target locking, and discreet video recording with remarkable efficiency.



FUNCTION


  • Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
  • Support five scene palettes of jungle, snow,ocean,city, and desert
  • Support video recording, photo taking, localbrowsing and export
  • Support one-key switching of display mode
  • Adjustable image contrast
  • Adjustable display brightness
  • With digital zoom function
  • With anti-light leakage function


FEATURES



  • Support multiple video modes
  • Various color palettes background, suitable for observation in different scenes
  • The image has clear layers and clear texture
  • Realized the complementary advantages of visible light imaging and thermal imaging
  • Easier to recognize objects

TECHNICAL PARAMETERS



Observation Mode

(1)Low-light, thermal imaging, fusion black and white and fusion color；

(2)Marking hot source target in fusion black and white and fusion color modes；

(3)There are five typical scene modes of jungle, snow, ocean, city and desert in the fusion color mode；

    Recognition Distance



Low-light mode

≥300m

Thermal imaging mode

≥800m

Fusion mode

≥800m

    IR Detector



Resolution

640×512@17um

Focus Lens

35mm

    Sensor(CCD)



Resolution

800×600@18um

Focus Lens

50mm

FOV

≥16°×12°

    Weight

≤1.2kg

    Interface

PAL,USB

    Battery

18650

    Storage

32G(Nominal)

    Battery Life

≥6h(Normal Temperature)

    Operating Temperature

-40℃～+55℃

    IP Grade

IP67
