Infrared And Visible Light Fusion Scope For Clearer Imaging
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD1000 |
| Minimum Order Quantity | 1 |
| Price | $6,173 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Binocular | Observation Mode | Low Light, Thermal Imaging, Fusion Black And White And Fusion Color.Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes.Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode |
|---|---|---|---|
| Recognition Distance (Low-light Mode) | ≥300m ( For Medium-sized Truck) | Recognition Distance (Thermal Imaging Mode) | ≥800m（for Medium-sized Truck） |
| Recognition Distance (Fusion Mode) | ≥800m（for Medium-sized Truck） | IR Detector Resolution | 640×512@17um |
| IR Detector Focus Lens | 35mm | Sensor（CCD）- Resolution | 800×600@18um |
| Sensor (CCD)- Focus Lens | 50mm | FOV | ≥16°×12° |
| Weight | ≤1.2kg | Interface | PAL、USB |
| Battery | 18650 | Storage | 32G（Nominal） |
| Battery Life | ≥6h（Normal Temperature） | Operating Temperature | -40℃～+55℃ |
| IP Grade | IP67 | Digital Zoom Function | 1×，2× |
| Image Contrast | Adjustable 1-10 | Display Brightness | Adjustable 1-10 |
| Video Recording | Supported | Photo Taking | Supported |
| Local Browsing And Export | Supported | Anti-light Leakage Function | Supported |
| Highlight | 300m fusion scope,800m fusion scope,Clearer Imaging infrared light scope |
||
Product Description
Infrared and Visible Light Fusion Scope for Clearer Imaging
Description And Features

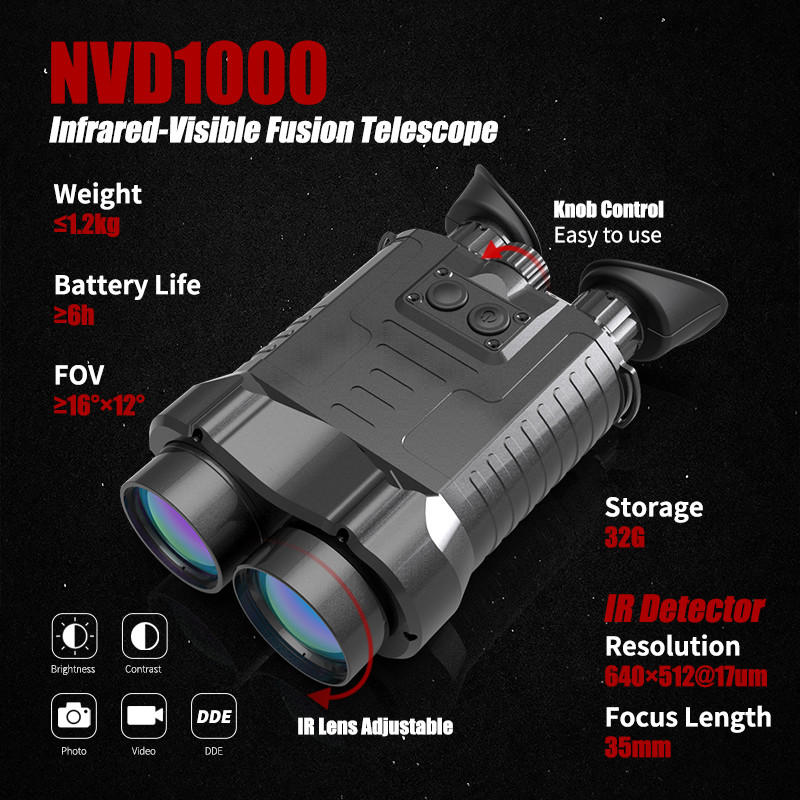

The NVD1000 Infrared-Visible Fusion Telescope is one of the most technologically advanced and feature-rich optics in the world. The primary engine behind this telescope lies within its main thermal viewing channel, equipped with a high-sensitivity 640×512 @ 17μm thermal detector. This advanced thermal sensor offers a remarkable ability to detect vehicle heat signatures at up to 800m, ensuring detailed and crisp background imagery at closer distances. Unlike other thermal devices, the NVD1000 also features a visible light imaging channel, enhancing target recognition after thermal detection. The device further elevates its capabilities with a built-in digital zoom, multiple viewing modes, and support for various observation scene, making it a versatile tool for different environments.
The potential uses with the NVD1000 fusion telescope are vast, thanks to its extensive features which include, but are not limited to: a 35mm thermal imaging lens, 50mm visible light lens, a field of view (FOV) of ≥16°×12°, support for video recording, photo taking, local browsing, and export, adjustable image contrast and brightness, and an anti-light leakage function. The NVD1000 boasts a robust construction with an IP67 waterproof rating, ensuring reliability in harsh conditions. It operates on 18650 rechargeable batteries with a battery life of ≥6 hours at normal temperature and supports external power via USB. Additional features include a storage capacity of 32GB, operating temperature range of -40°C to +55°C, and support for multiple display modes (low light, thermal imaging fusion, black and white, color). This device comes with a charger (with adapter), four batteries, a data cable, a storage bag, a cleaning cloth, and a storage box. With OEM and ODM customization options available.
Ergonomic Design for Easy Observation
Binocular design reduces fatigue during long-term use. Raised buttons are easily recognized by touch and simple control panel, easy to operate, even in darkness. Features include adjustable image contrast and display brightness, support for video recording, photo taking, local browsing, and export, and a thermal imaging focus lens with an IR detector resoltion of 640x512@17um and a 35mm focus lens. providing high-quality, detailed imagery. Convenient and fast knob operation ensures smooth adjustments and enhances user experience.
 |

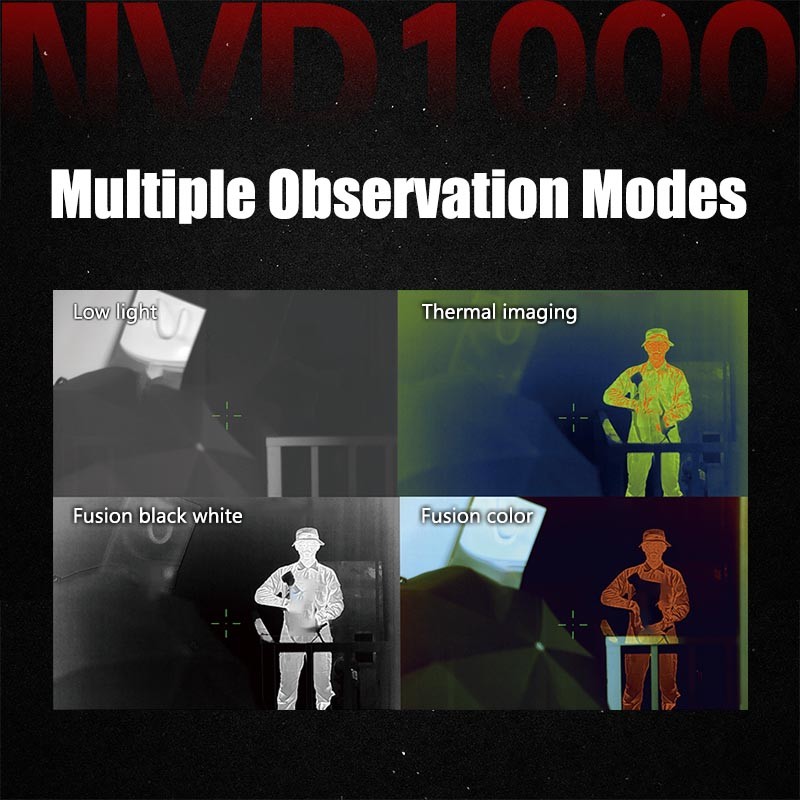

Multiple Display Modes to Highlight the Target
Four display modes: low light, thermal imaging, fusion black and white, and fusion color, this feature ensures effective and clear observations in various lighting conditions, enhancing target recognition and overall performance.
|
Multiple Scene Modes for Clear Target Highlighting
The five scene modes of jungle, snow, ocean, city, and desert can be quickly switched. This adaptive feature allows the image to be adjusted for different environments, effectively reducing image impurities and highlighting the target. By optimizing the display for each specific scene, users can achieve clearer and more detailed observations, ensuring precise and reliable performance in diverse conditions.
|
|
Long-Range Detection for Enhanced Target Recognition
- Low-light mode: Detects medium-sized trucks at distances of ≥300m, ensuring clear visibility in low-light conditions.
- Thermal imaging mode: Detects medium-sized trucks at distances of ≥800m, providing excellent detection capabilities in complete darkness and challenging environments.
- Fusion mode: Detects medium-sized trucks at distances of ≥800m, combining the benefits of both thermal and low-light imaging, offering superior detection and clarity in diverse conditions.
|

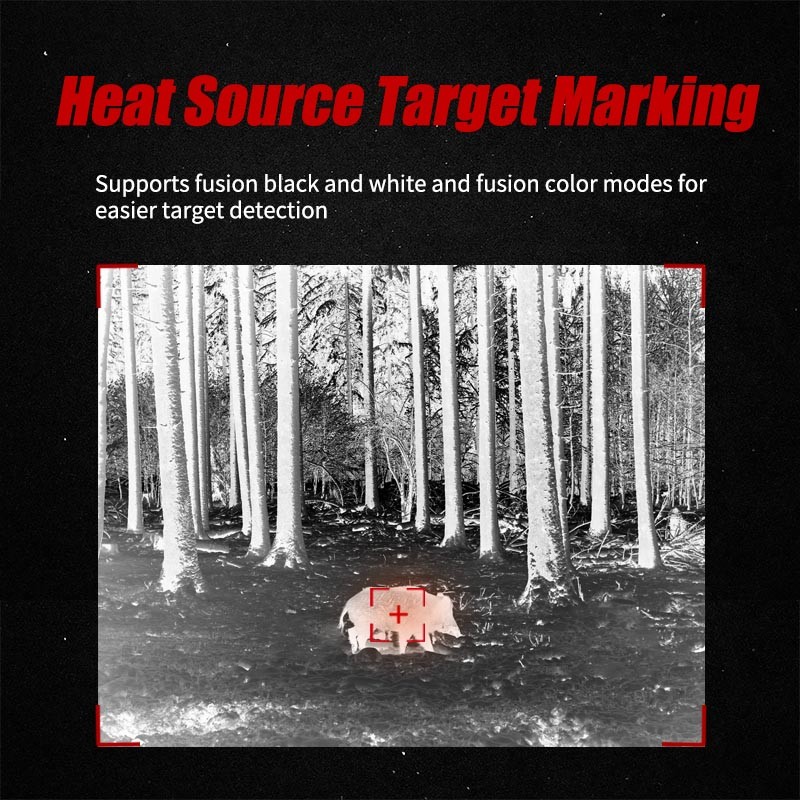

Observation Mode with Hot Source Target Marking
In fusion black and white and fusion color modes, it allows users to mark hot source targets effectively. This feature enhances detection and identification, making it easier to track and monitor heat sources in various environments and lighting conditions.
|
Digital Zoom Function for Precise Targeting
Utilize the digital zoom function for precise targeting by 1×, 2× zooming in and out. This feature allows for flexible searching, enabling you to pinpoint targets more quickly and accurately, enhancing the overall user experience.
|

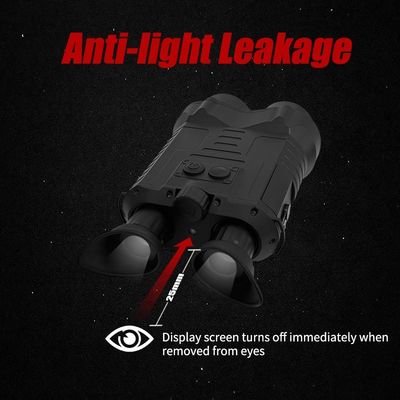

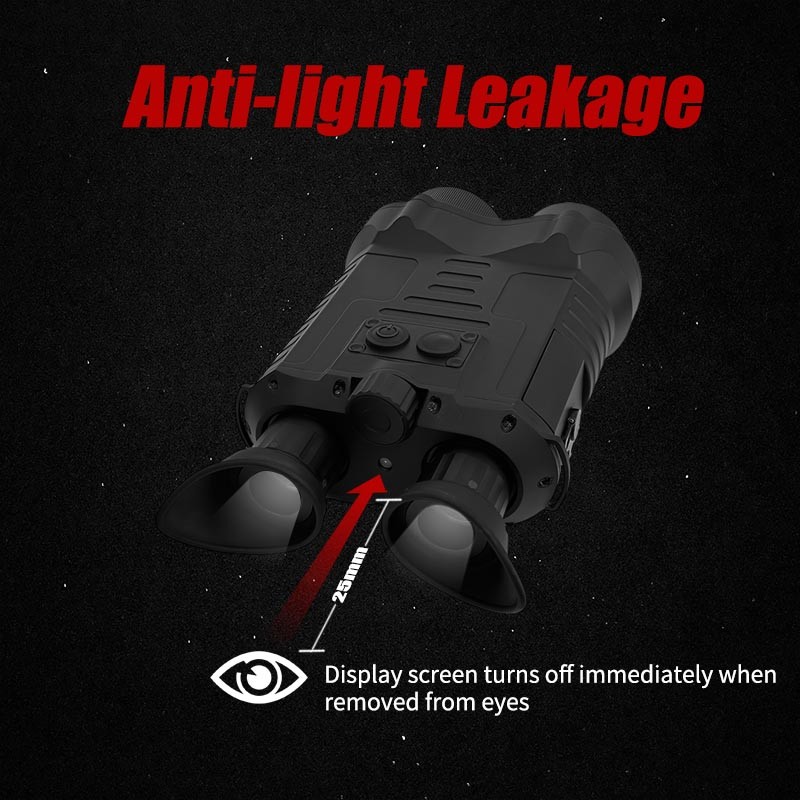

Anti-Light Leakage Function for Enhanced Concealment
The anti-light leakage function ensures that when the device is removed from the eyes, the display screen immediately turns off to prevent detection by the enemy, maintaining operational concealment and reducing the risk of detection by the enemy. This ensures discreet and safe operation without revealing the user's position.
|

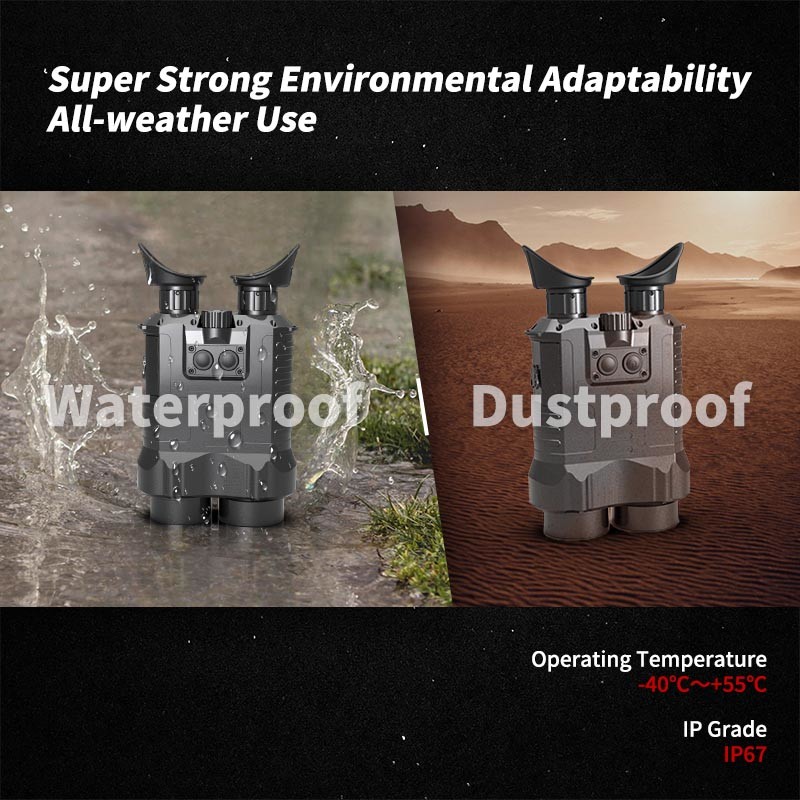

Exceptional Environmental Adaptability for All-Weather Use
With an IP67 rating, robust protection , ensuring reliable performance even in extreme environments. It operates effectively in temperatures ranging from -40°C to +55°C, making it suitable for a variety of harsh weather conditions. Additionally, its dustproof design provides optimal functionality in sandy or dusty settings.
|
Applications
|
Image Gallery
|
|
|
|
Observation Mode |
(1)Low-light, thermal imaging, fusion black and white and fusion color； (2)Marking hot source target in fusion black and white and fusion color modes； (3)There are five typical scene modes of jungle, snow, ocean, city and desert in the fusion color mode； |
|
Recognition Distance |
|
|
Low-light mode |
≥300m |
|
Thermal imaging mode |
≥800m |
|
Fusion mode |
≥800m |
|
IR Detector |
|
|
Resolution |
640×512@17um |
|
Focus Lens |
35mm |
|
Sensor(CCD) |
|
|
Resolution |
800×600@18um |
|
Focus Lens |
50mm |
|
FOV |
≥16°×12° |
|
Weight |
≤1.2kg |
|
Interface |
PAL,USB |
|
Battery |
18650 |
|
Storage |
32G(Nominal) |
|
Battery Life |
≥6h(Normal Temperature) |
|
Operating Temperature |
-40℃～+55℃ |
|
IP Grade |
IP67 |
