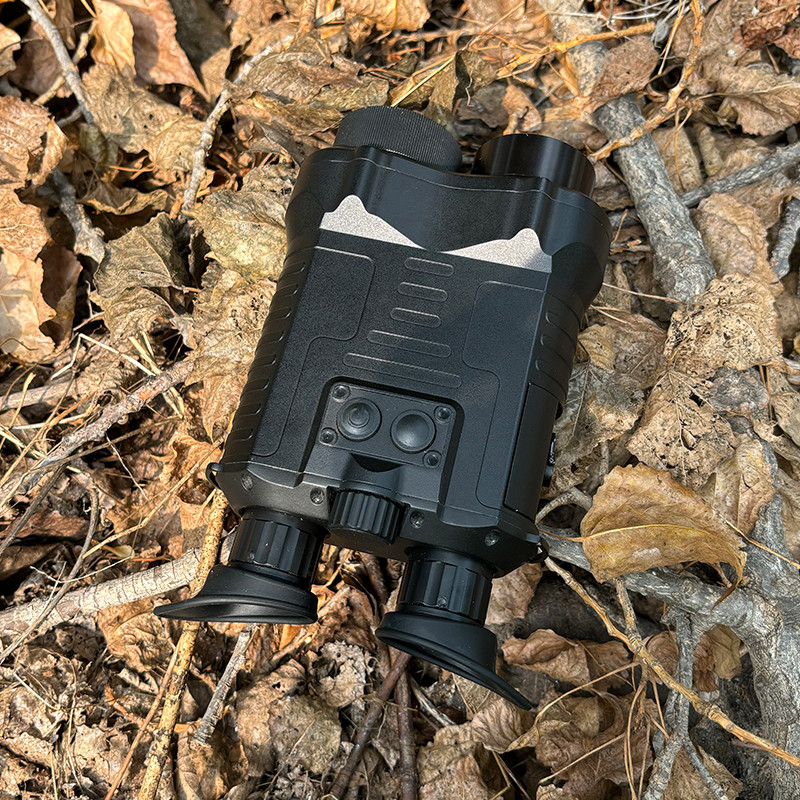

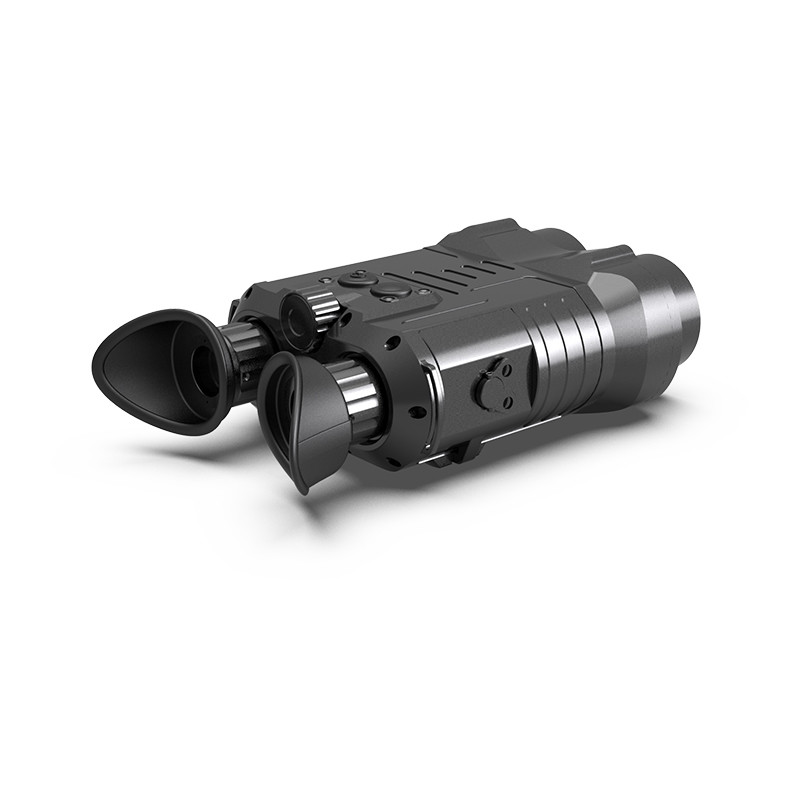

Multifunctional Handheld Infrared Night Vision For Covert Operations And Surveillance

  • Multifunctional Handheld Infrared Night Vision For Covert Operations And Surveillance
  • Multifunctional Handheld Infrared Night Vision For Covert Operations And Surveillance
  • Multifunctional Handheld Infrared Night Vision For Covert Operations And Surveillance
Place of Origin China
Brand Name Particle
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Handheld Thermal Imaging Mode ≥800m
Low-light Mode ≥300m Fusion Mode ≥800m
Magnification Digital 1x~4x Weight ≤1.2kg
Battery 18650 Material Magnalium
Waterproof Yes Shockproof Yes
Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） IR Detector Resolution 640×512@17um
IR Detector Focus Lens 35mm Sensor（CCD）- Resolution 800×600@18um
Sensor (CCD)- Focus Lens 50mm FOV ≥16°×12°
Interface PAL、USB Storage 32G（Nominal）
Battery Life ≥6h（Normal Temperature） Operating Temperature -40℃～+55℃
IP Grade IP67 Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color
Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode
Video Recording Supported Photo Taking Supported
Local Browsing And Export Supported Image Contrast Adjustable 1-10
Display Brightness Adjustable 1-10 Digital Zoom Function 1×，2×
Anti-light Leakage Function Supported
Highlight

Multifunctional Infrared Night Vision

,

Handheld Infrared Night Vision

,

IP67 handheld night vision
Leave a Message
Product Description

Multifunctional Handheld Infrared Night Vision for Covert Operations and Surveillance





APPLICATIONS



The JP NVD1000 fusion telescope represents the pinnacle of surveillance technology, combining thermal imaging and visible light images into a single display through advanced software fusion processing. This capability allows users to clearly detect heat sources while simultaneously observing detailed environmental backgrounds. The resulting images feature distinct layers and prominently highlighted main targets, making the JP NVD1000 ideal for various applications such as patrol inspections, sentry duties, and monitoring key areas. It is particularly effective in scenarios with varying light conditions and complex backgrounds. The JP NVD1000 aids in tasks like covert surveillance, mobile detection, target screening and tracking, rapid target locking, and secret video recording, ensuring users have the clarity and precision needed for successful operations.



FUNCTION


  • Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
  • Support five scene palettes of jungle, snow,ocean,city, and desert
  • Support video recording, photo taking, localbrowsing and export
  • Support one-key switching of display mode
  • Adjustable image contrast
  • Adjustable display brightness
  • With digital zoom function
  • With anti-light leakage function


FEATURES



  • Support multiple video modes
  • Various color palettes background, suitable for observation in different scenes
  • The image has clear layers and clear texture
  • Realized the complementary advantages of visible light imaging and thermal imaging
  • Easier to recognize objects

TECHNICAL PARAMETERS



Observation Mode

(1)Low-light, thermal imaging, fusion black and white and fusion color；

(2)Marking hot source target in fusion black and white and fusion color modes；

(3)There are five typical scene modes of jungle, snow, ocean, city and desert in the fusion color mode；

    Recognition Distance



Low-light mode

≥300m

Thermal imaging mode

≥800m

Fusion mode

≥800m

    IR Detector



Resolution

640×512@17um

Focus Lens

35mm

    Sensor(CCD)



Resolution

800×600@18um

Focus Lens

50mm

FOV

≥16°×12°

    Weight

≤1.2kg

    Interface

PAL,USB

    Battery

18650

    Storage

32G(Nominal)

    Battery Life

≥6h(Normal Temperature)

    Operating Temperature

-40℃～+55℃

    IP Grade

IP67
