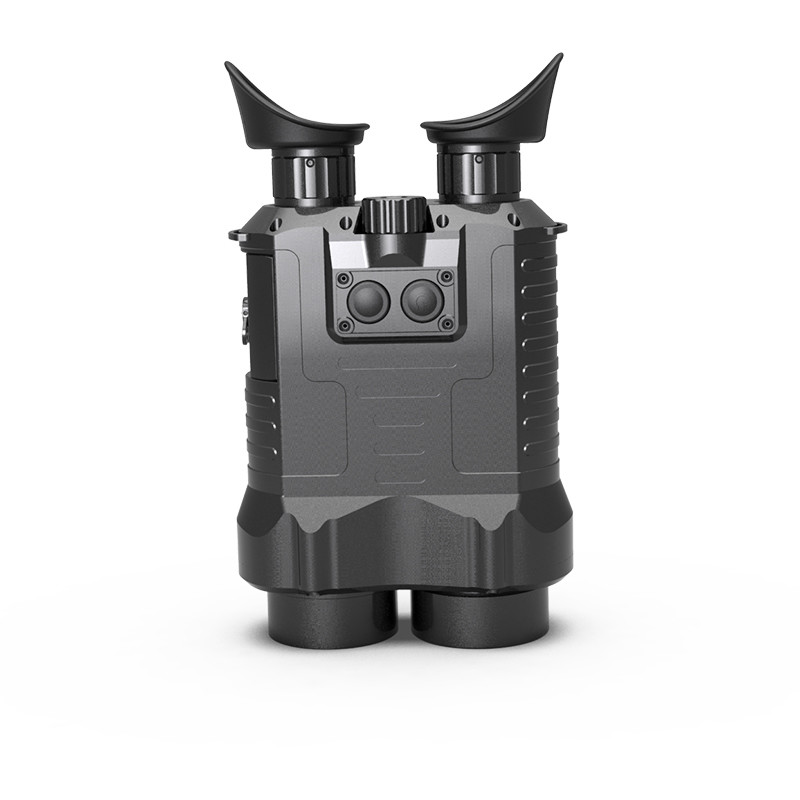

Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions

  • Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions
  • Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions
  • Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions
Place of Origin China
Brand Name Particle
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Color Black Material Metal
Weight ≤1.2kg Warranty 1 Year
Battery Type 18650 Type Field Of View 16°×12°
Battery Life ≥6h（Normal Temperature） IP Rate IP67
Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） IR Detector Resolution 640×512@17um
IR Detector Focus Lens 35mm Sensor（CCD）- Resolution 800×600@18um
Sensor (CCD)- Focus Lens 50mm FOV ≥16°×12°
Interface PAL、USB Battery 18650
Storage 32G（Nominal） Operating Temperature -40℃～+55℃
IP Grade IP67 Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color
Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode
Video Recording Supported Photo Taking Supported
Local Browsing And Export Supported Image Contrast Adjustable 1-10
Display Brightness Adjustable 1-10 Digital Zoom Function 1×，2×
Anti-light Leakage Function Supported
Highlight

Custom observation telescope

,

Dual Spectrum observation telescope

,

IP67 digital thermal goggles
Leave a Message
Product Description

Customizable Dual-spectrum Observation Telescope for Tailored Surveillance Solutions





APPLICATIONS



Experience the cutting-edge capabilities of the JP NVD1000 fusion telescope, which combines thermal imaging and visible light into a single, integrated display. Using sophisticated software algorithms, it produces a fused image that highlights both heat sources and background details with exceptional clarity. This device excels in applications such as patrol inspections, sentry duty, and monitoring key areas, especially under conditions of varying light and complex backgrounds. The JP NVD1000 provides clear, layered images that emphasize main targets, aiding users in concealed surveillance, mobile detection, target screening and tracking, quick locking, and secret video recording, ensuring mission success with enhanced visual information.



FUNCTION


  • Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
  • Support five scene palettes of jungle, snow,ocean,city, and desert
  • Support video recording, photo taking, localbrowsing and export
  • Support one-key switching of display mode
  • Adjustable image contrast
  • Adjustable display brightness
  • With digital zoom function
  • With anti-light leakage function


FEATURES



  • Support multiple video modes
  • Various color palettes background, suitable for observation in different scenes
  • The image has clear layers and clear texture
  • Realized the complementary advantages of visible light imaging and thermal imaging
  • Easier to recognize objects

TECHNICAL PARAMETERS



Observation Mode

(1)Low-light, thermal imaging, fusion black and white and fusion color；

(2)Marking hot source target in fusion black and white and fusion color modes；

(3)There are five typical scene modes of jungle, snow, ocean, city and desert in the fusion color mode；

    Recognition Distance



Low-light mode

≥300m

Thermal imaging mode

≥800m

Fusion mode

≥800m

    IR Detector



Resolution

640×512@17um

Focus Lens

35mm

    Sensor(CCD)



Resolution

800×600@18um

Focus Lens

50mm

FOV

≥16°×12°

    Weight

≤1.2kg

    Interface

PAL,USB

    Battery

18650

    Storage

32G(Nominal)

    Battery Life

≥6h(Normal Temperature)

    Operating Temperature

-40℃～+55℃

    IP Grade

IP67




Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions 0

Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions 1

Custom Dual Spectrum Observation Telescope For Tailored Surveillance Solutions 2
