Handheld Multifunctional Infrared Night Vision Infrared Visible Fusion Telescope

  • Handheld Multifunctional Infrared Night Vision Infrared Visible Fusion Telescope
  • Handheld Multifunctional Infrared Night Vision Infrared Visible Fusion Telescope
  • Handheld Multifunctional Infrared Night Vision Infrared Visible Fusion Telescope
  • Handheld Multifunctional Infrared Night Vision Infrared Visible Fusion Telescope
Place of Origin China
Brand Name Particle
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） IR Detector Resolution 640×512@17um
IR Detector Focus Lens 35mm Sensor（CCD）- Resolution 800×600@18um
Sensor (CCD)- Focus Lens 50mm FOV ≥16°×12°
Weight ≤1.2kg Interface PAL、USB
Battery 18650 Storage 32G（Nominal）
Battery Life ≥6h（Normal Temperature） Operating Temperature -40℃～+55℃
IP Grade IP67 Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color
Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode
Video Recording Supported Photo Taking Supported
Local Browsing And Export Supported Image Contrast Adjustable 1-10
Display Brightness Adjustable 1-10 Digital Zoom Function 1×，2×
Anti-light Leakage Function Supported
Highlight

Multifunctional army night vision monocular

,

Handheld army night vision monocular

,

Night Vision military thermal monocular
Leave a Message
Product Description

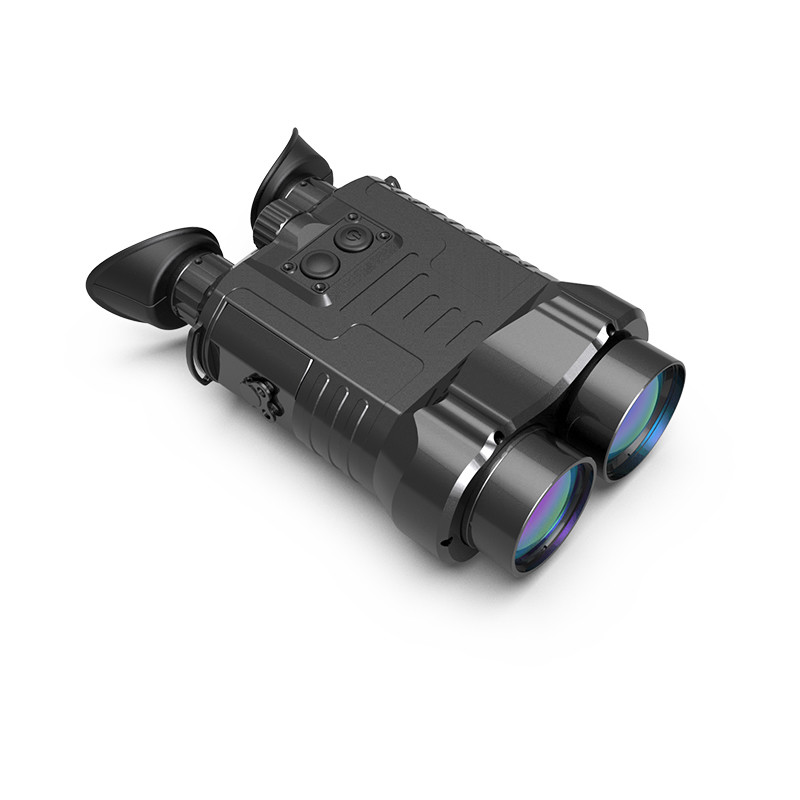

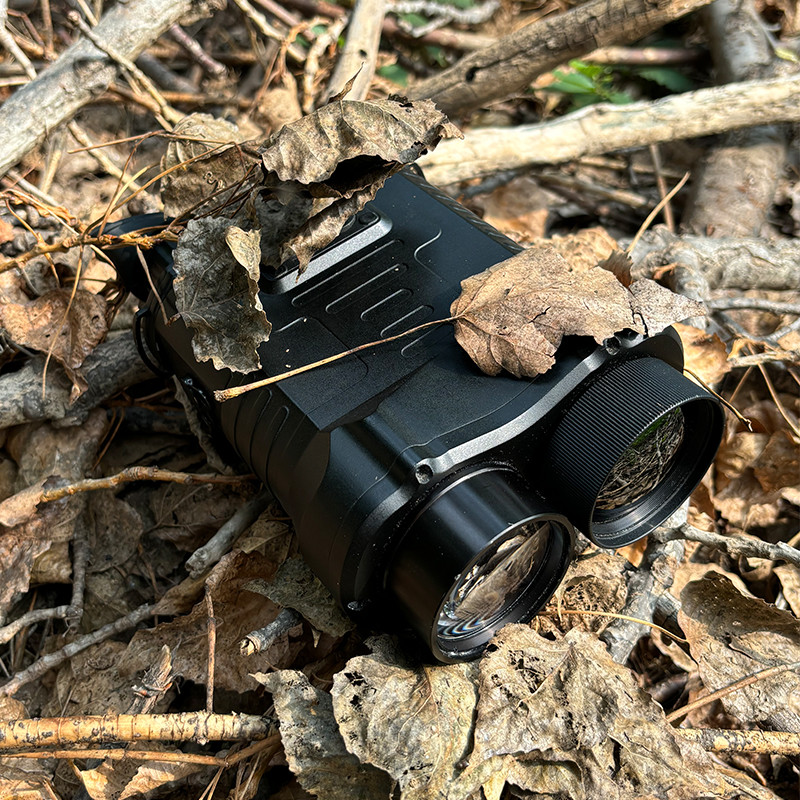

Multifunctional Handheld Infrared Night Vision infrared-visible fusion telescope


APPLICATIONS
The JP NVD1000 fusion telescope, an innovative device that merges thermal imaging and visible light images into a unified display through advanced software processing. This fusion technique allows users to effortlessly detect heat sources and observe environmental details simultaneously. The clear and layered images produced by the JP NVD1000 emphasize primary targets, making it ideal for tasks such as patrol inspections, sentry duties, and monitoring key areas. Its advantages are most apparent in conditions with fluctuating light levels and intricate backgrounds. The JP NVD1000 excels in supporting activities like covert staking out, mobile detection, screening and tracking, rapid target acquisition, and secret video recording, ensuring tasks are completed with precision and clarity.

FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function

FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects

Technical Parameters:

FOV ≥16°×12°
Weight ≤1.2kg
Interface PAL,USB
Battery 18650
Storage 32G(Nominal)
Battery Life ≥6h(Normal Temperature)
Operating Temperature -40℃～+55℃
IP Grade IP67





NVD 1000 Details:
