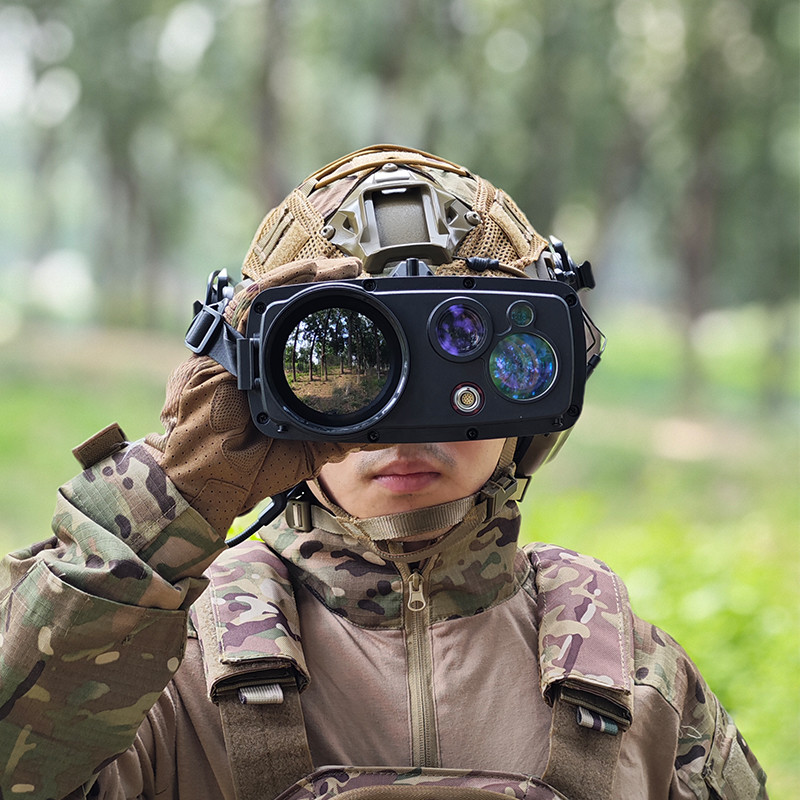

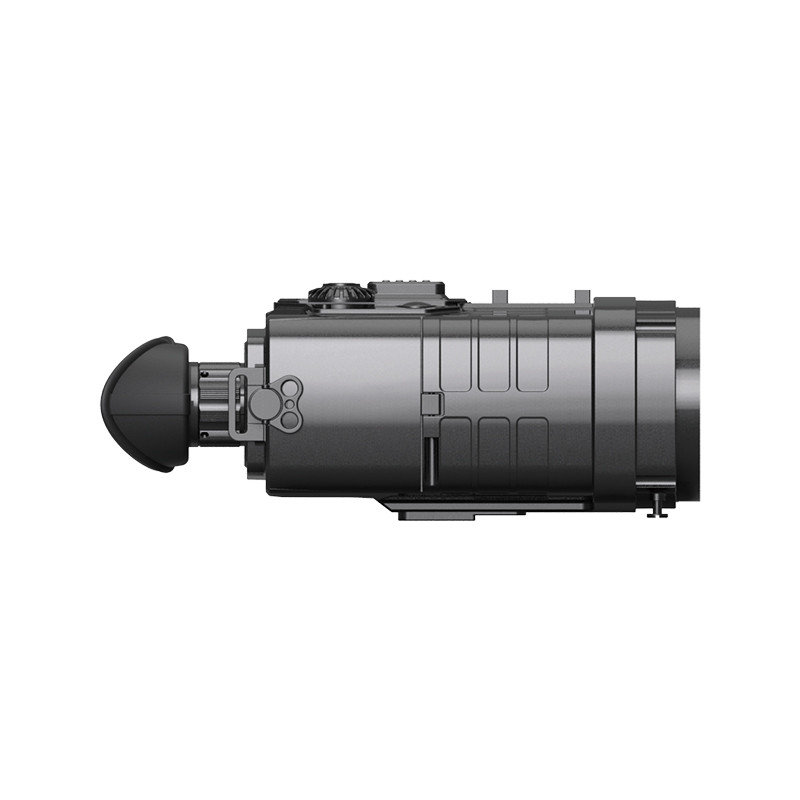

Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution

  • Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution
  • Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution
  • Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution
Place of Origin China
Brand Name Particle
Model Number NVD3000
Price $17,000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Handheld Infrared Yes
Night Vision Yes LRF Yes
Weight ≤1.6kg Resolution High
Durability Durable Infrared Recognition Distance Mid-Size Vehicle：≥2.8km; Standing Man：≥1km
Infrared Detector 640×512@12um Infrared Focal Length 70mm
FOV ≥6.3°×5.0° Visible Light Recognition Distance Mid-Size Vehicle：≥6.6km；Standing Man：≥3km
Visible Light Resolution 2592×1944@2.7um Visible Light Focal Length 105mm
Visible Light Focal Length Adaptation Range 50m～∞ Visible Light ≥3.2°×2.4°
Laser Ranging （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz Laser Ranging Logic Select To Display The First Or Last Target Capability Measured
Laser Ranging Wavelength Human Eye Safety Band Positioning Precision ≤7m（CEP），≤10m（PE）
Magnetic Azimuth ≤0.5°（RMS） Target Positioning Accuracy At 2km Of The Distance，≤20m（CEP）
Diopter -4SD～+4SD Digital Zoom 1×~4×
Working Time（Room Temperature） ≥10h Memory Storage 32G
Operating Temperature -40℃～+55℃ IP Grade IP67
External Interface Data USB External Interface Video PAL
Communication RS232 Interface Type Reserved Picatinny Rail
Defog Support
Highlight

Handheld infrared binoculars

,

infrared binoculars High Resolution

,

Mobile night vision goggle
Leave a Message
Product Description

Handheld Infrared Binoculars / Mobile Night Vision Viewer Goggles for Night Vision



APPLICATIONS



NVD3000 is a state-of-the-art binocular handheld uncooled thermal imaging telescope that offers multiple functionalities for diverse applications. It integrates a thermal imaging detector and visible light sensor, providing a "one-key switch" between thermal and visible light images. Additionally, it features satellite positioning, laser ranging, and an electronic compass to facilitate self-positioning, target positioning, target identification, and search guidance. Ideal for field observation and surveillance, the NVD3000 excels in acquiring precise target location information.



Technical Parameters



  Product model

NVD3000

  Infrared

Mid-Size Vehicle, km

≥2.8

Standing Man, km

≥1

Infrared detection resolution, Pixel@um

640×512@12um

Lens focal length, mm

70

Infrared FOV, °

≥6.3×5.0

  Visible Light

Mid-Size Vehicle, km

≥6.6

Standing Man, km

≥3

Resolution, Pixel@um

2592×1944@2.7um

Focal Length, mm

105

 Focal Length Adaptation Range, m

50～∞

Visible FOV, °

≥3.2×2.4

Defog

Support

  Laser Ranging

Minimum Range, m

≤50

Maximum Range, km

≥6

Precision, m

≤2

Repeat Frequency, Hz

≥0.5

Ranging Logic

Select to display the first or last target capability measured；

Laser Wavelength

Human eye safety band；

  Positioning Orientation

Positioning Precision, m

≤7(CEP), ≤10(PE)

Magnetic Azimuth, °

≤0.5(RMS)

Target Positioning Accuracy, m

at 2km of the distance≤20(CEP)

  Other

Diopter, SD

-4～+4

Digital zoom, ×

1~4

Working Time(Room temperature), h

≥10

Memory Storage, G

32

Operating Temperature, ℃

-40～+55

IP Grade

IP67

Weight, kg

≤1.6



* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.



Product Details



Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 0



► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized



Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 1


► Supports guided search function after entering target coordinates



Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 2



► PIP



Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 3

► Supports fog penetration function in visible light (color, black and white) observation mode

Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 4

► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target

Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 5


► Relative ranging function supports relative distance calculation between targets



Handheld Infrared Binoculars Mobile Night Vision Goggle High Resolution 6
