IP67 Lightweight Multifunctional Infrared Night Vision Telescope Device
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD3000 |
| Price | $17,000 |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Thermal Imaging，Daylight Camera，LRF | Detector | 640*512@12um |
|---|---|---|---|
| Sensor | 2592×1944@2.7um | LRF | 50~5000m |
| Focal Length Adaptation Range | 50m～∞ | Visible FOV | ≥3.2°×2.4° |
| Defog | Support | Infrared Recognition Distance | Mid-Size Vehicle：≥2.8km; Standing Man：≥1km |
| Infrared Detector | 640×512@12um | Infrared Focal Length | 70mm |
| FOV | ≥6.3°×5.0° | Visible Light Recognition Distance | Mid-Size Vehicle：≥6.6km；Standing Man：≥3km |
| Visible Light Resolution | 2592×1944@2.7um | Visible Light Focal Length | 105mm |
| Visible Light Focal Length Adaptation Range | 50m～∞ | Visible Light | ≥3.2°×2.4° |
| Laser Ranging | （1）Minimum Range：≤50m； （2）Maximum Range：≥6km； （3）Precision：≤2m； （4）Accurate Rate：≥98%； （5）Repeat Frequency：≥0.5Hz | Laser Ranging Logic | Select To Display The First Or Last Target Capability Measured |
| Laser Ranging Wavelength | Human Eye Safety Band | Positioning Precision | ≤7m（CEP），≤10m（PE） |
| Magnetic Azimuth | ≤0.5°（RMS） | Target Positioning Accuracy | At 2km Of The Distance，≤20m（CEP） |
| Diopter | -4SD～+4SD | Digital Zoom | 1×~4× |
| Working Time（Room Temperature） | ≥10h | Memory Storage | 32G |
| Operating Temperature | -40℃～+55℃ | IP Grade | IP67 |
| Weight | ≤1.6kg | External Interface Data | USB |
| External Interface Video | PAL | Communication | RS232 |
| Interface Type | Reserved Picatinny Rail | ||
| Highlight | IP67 Infrared Night Vision Telescope,Lightweight Infrared Night Vision Telescope,Multifunctional infrared heat sensor binoculars |
||
Product Description
Lightweight Multifunctional
Infrared Night Vision Telescope Device
APPLICATIONS

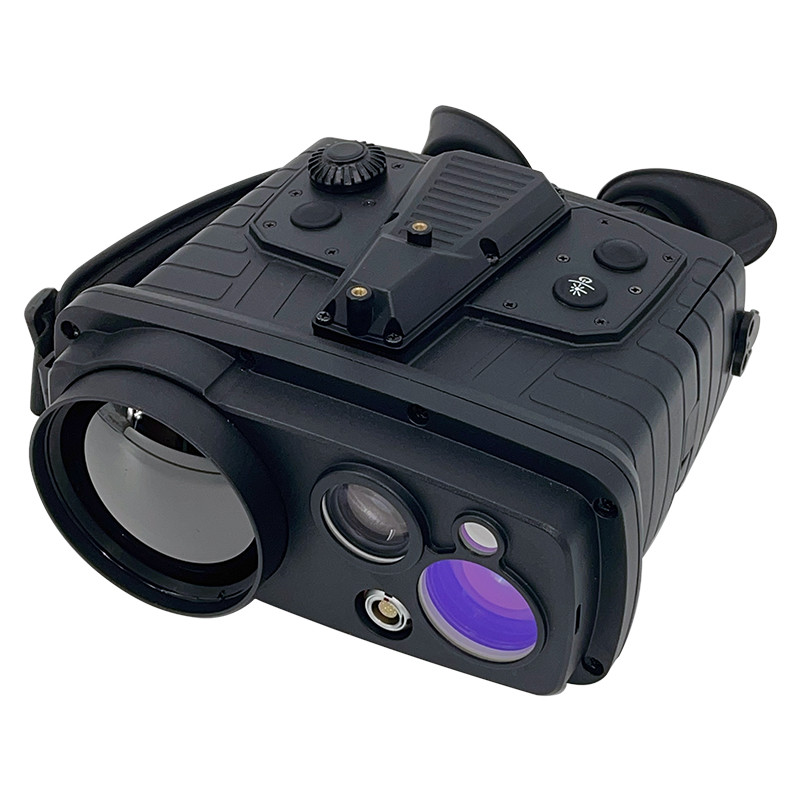

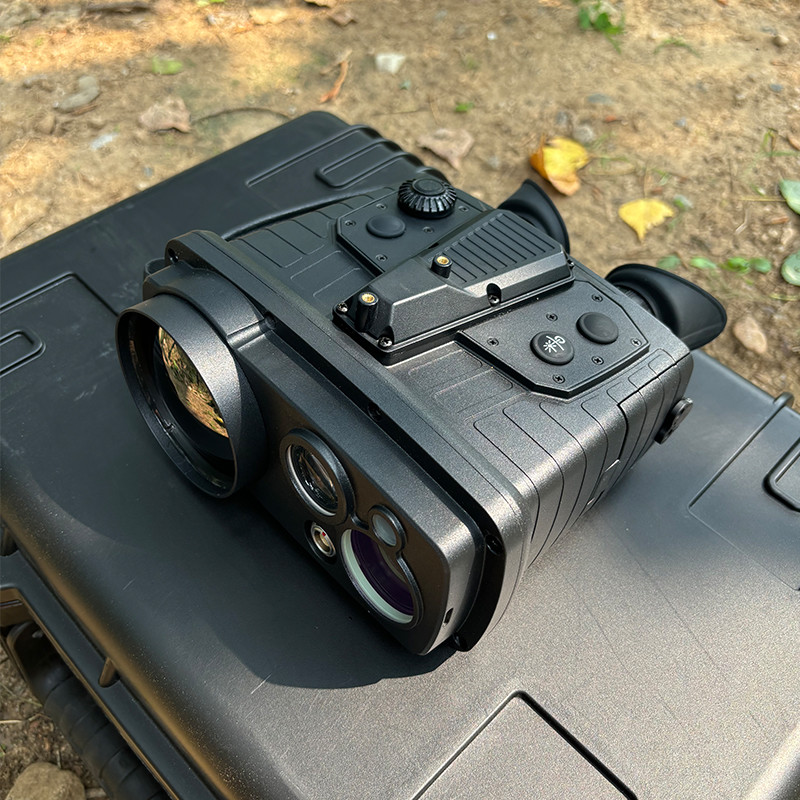

The NVD3000 is a multifunctional binocular handheld uncooled thermal imaging telescope designed to cater to a wide range of user needs in various scenarios. It features an integrated thermal imaging detector and a visible light sensor, allowing users to easily switch between thermal and visible light images with a single button. Additionally, the NVD3000 is equipped with satellite positioning modules, laser ranging modules, and an electronic compass, enabling accurate self-positioning and target positioning data calculations. This device is ideal for tasks such as field observation, surveillance, and the acquisition of target location information, providing users with reliable target identification and search guidance capabilities.
Technical Parameters
|
Product model |
NVD3000 |
|
Infrared |
|
|
Mid-Size Vehicle,km |
≥2.8 |
|
Standing Man, km |
≥1 |
|
Infrared detection resolution, Pixel@um |
640×512@12um |
|
Lens focal length,mm |
70 |
|
Infrared FOV,° |
≥6.3×5.0 |
|
Visible Light |
|
|
Mid-Size Vehicle, km |
≥6.6 |
|
Standing Man,km |
≥3 |
|
Resolution,Pixel@um |
2592×1944@2.7um |
|
Focal Length,mm |
105 |
|
Focal Length Adaptation Range,m |
50～∞ |
|
Visible FOV,° |
≥3.2×2.4 |
|
Defog |
Support |
|
Laser Ranging |
|
|
Minimum Range,m |
≤50 |
|
Maximum Range,km |
≥6 |
|
Precision,m |
≤2 |
|
Repeat Frequency,Hz |
≥0.5 |
|
Ranging Logic |
Select to display the first or last target capability measured |
|
Laser Wavelength |
Human eye safety band |
|
Positioning Orientation |
|
|
Positioning Precision,m |
≤7(CEP), ≤10(PE) |
|
Magnetic Azimuth,° |
≤0.5(RMS) |
|
Target Positioning Accuracy,m |
at 2km of the distance, ≤20(CEP) |
|
Other |
|
|
Diopter,SD |
-4～+4 |
|
Digital zoom,× |
1~4 |
|
Working Time(Room temperature,h |
≥10 |
|
Memory Storage,G |
32 |
|
Operating Temperature,℃ |
-40～+55 |
|
IP Grade |
IP67 |
|
Weight,kg |
≤1.6 |
* These parameters are for illustrative purposes only and are subject to change without prior notice due to product updates and improvements.
Product Details
► Thermal imaging observation mode and visible light observation mode can be switched with one click, and screen brightness, contrast, image quality enhancement, etc. can be personalized
► Supports guided search function after entering target coordinates
► PIP
► Supports fog penetration function in visible light (color, black and white) observation mode
► Laser ranging and real-time display of distance, longitude, latitude, elevation and other data of the measured target
► Relative ranging function supports relative distance calculation between targets
