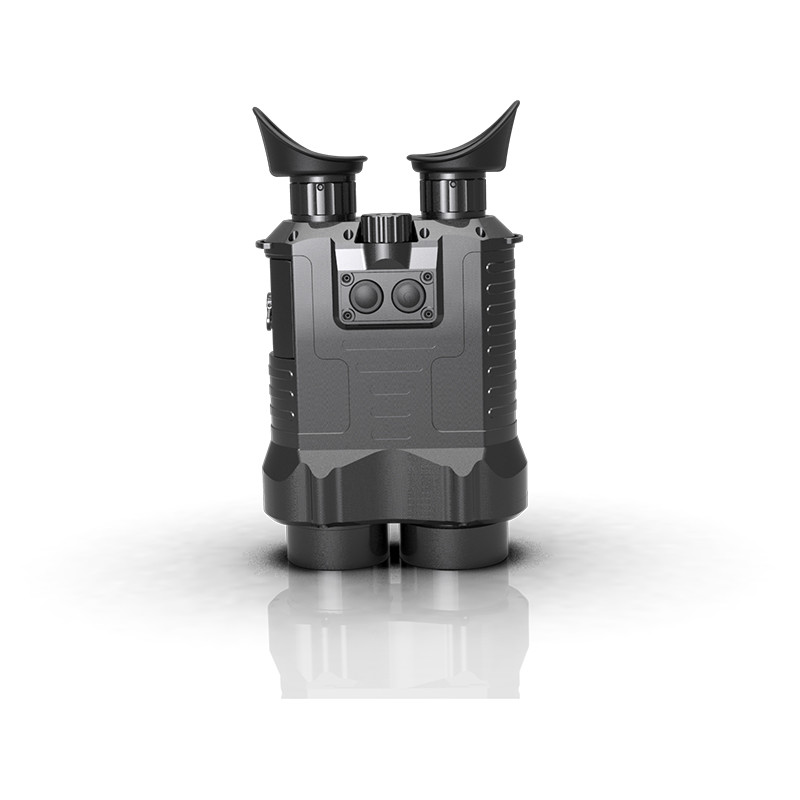

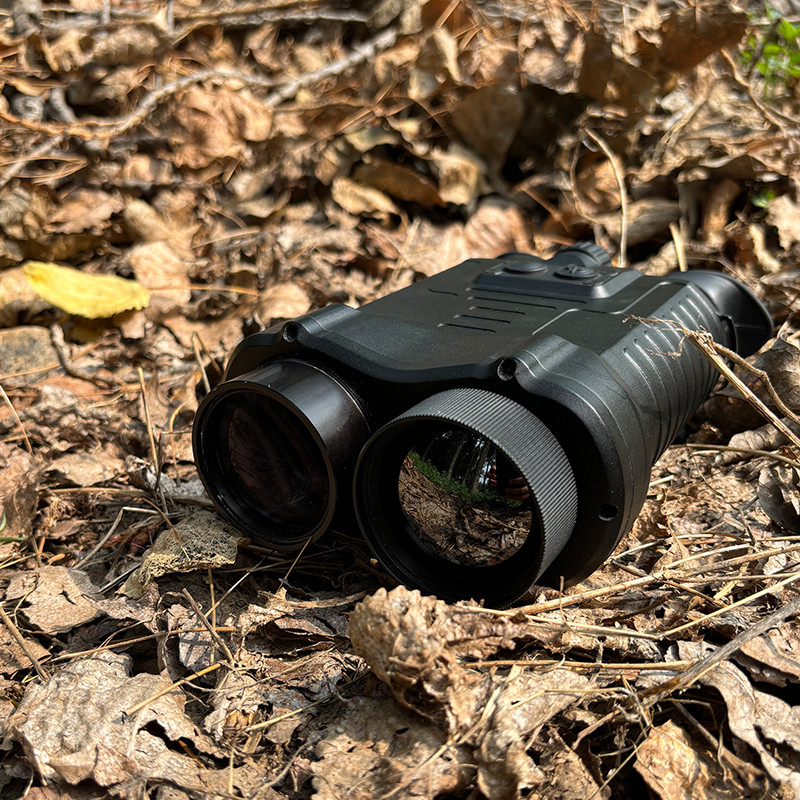

Digital Zoom Thermal Visual Fusion Telescope With Fused Modes And Target Marking
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD1000 |
| Minimum Order Quantity | 1 |
| Price | $6,173 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | High Definition | Name | Infrared-visible Image Fusion Equipment |
|---|---|---|---|
| Support | Multiple Video Modes | Photo Taking | Supported |
| Anti-light Leakage Function | Supported | Display Modes | Low Light, Thermal Imaging, Fusion Black And White, And Fusion Color |
| Feature | Night Vision | Digital Zoom Function | 1×，2× |
| Recognition Distance (Low-light Mode) | ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) | Recognition Distance (Thermal Imaging Mode) | ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） |
| Recognition Distance (Fusion Mode) | ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） | IR Detector Resolution | 640×512@17um |
| IR Detector Focus Lens | 35mm | Sensor（CCD）- Resolution | 800×600@18um |
| Sensor (CCD)- Focus Lens | 50mm | FOV | ≥16°×12° |
| Weight | ≤1.2kg | Interface | PAL、USB |
| Battery | 18650 | Storage | 32G（Nominal） |
| Battery Life | ≥6h（Normal Temperature） | Operating Temperature | -40℃～+55℃ |
| IP Grade | IP67 | Observation Mode 1 | Low Light, Thermal Imaging, Fusion Black And White And Fusion Color |
| Observation Mode 2 | Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes | Observation Mode 3 | Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode |
| Video Recording | Supported | Local Browsing And Export | Supported |
| Image Contrast | Adjustable 1-10 | Display Brightness | Adjustable 1-10 |
| Highlight | Digital Zoom thermal telescope,Night Vision thermal telescope,2x hand held night vision |
||
Product Description
|
APPLICATIONS
The NVD1000 fusion telescope uses advanced software algorithms to merge thermal imaging with visible light images, presenting a single, detailed image. This technology enables users to detect heat sources and observe background details with clarity, featuring distinct image layers and prominent targets. Suitable for patrol inspections, sentry duties, and critical area monitoring, it is particularly effective in environments with alternating light and dark and complex backgrounds, supporting tasks such as hidden observation, mobile detection, screening, tracking, quick target acquisition, and covert video recording.
FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function
FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects
Technical Parameters:
NVD 1000 Details:
|
