Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision

  • Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision
  • Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision
  • Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision
  • Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision
Place of Origin China
Brand Name Particle
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Battery Life ≥6h（Normal Temperature） Anti-light Leakage Function Supported
Support Multiple Video Modes Target Marking Function Fused Black & White And Fused Color Modes
Feature Night Vision Type Handheld
Scene Palettes Jungle, Snow, Ocean, City, And Desert Display Modes Low Light, Thermal Imaging, Fusion Black And White, And Fusion Color
Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） IR Detector Resolution 640×512@17um
IR Detector Focus Lens 35mm Sensor（CCD）- Resolution 800×600@18um
Sensor (CCD)- Focus Lens 50mm FOV ≥16°×12°
Weight ≤1.2kg Interface PAL、USB
Battery 18650 Storage 32G（Nominal）
Operating Temperature -40℃～+55℃ IP Grade IP67
Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes
Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode Video Recording Supported
Photo Taking Supported Local Browsing And Export Supported
Image Contrast Adjustable 1-10 Display Brightness Adjustable 1-10
Digital Zoom Function 1×，2×
Highlight

300m army scope monocular

,

Night Vision army scope monocular

,

2X digital nvg goggles
Leave a Message
Product Description

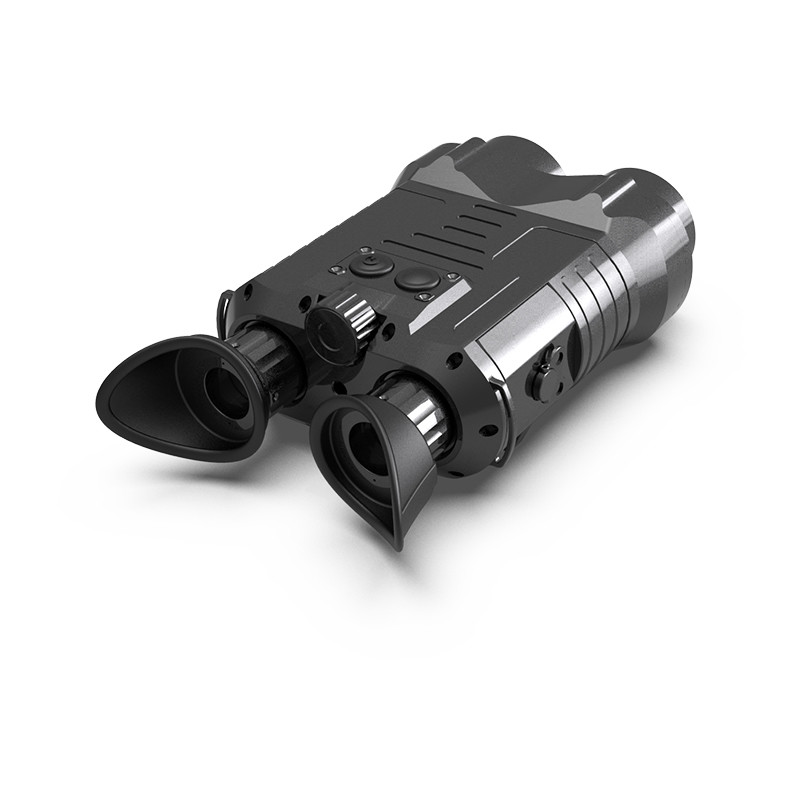

Precise Data Collection Infrared and Visible Light Sensor Telescope with Night Vision


APPLICATIONS
The NVD1000 fusion telescope integrates thermal imaging with visible light through advanced software processing, delivering a single fused image. This enables users to clearly identify heat sources and background details, with distinct image layers and prominent targets. Ideal for patrols, sentry duties, and monitoring critical areas, it performs exceptionally in environments with fluctuating light conditions and complex backgrounds. The telescope assists users in concealed observation, mobile detection, screening, tracking, rapid target acquisition, and covert video recording.

FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function

FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects

Technical Parameters:

FOV ≥16°×12°
Weight ≤1.2kg
Interface PAL,USB
Battery 18650
Storage 32G(Nominal)
Battery Life ≥6h(Normal Temperature)
Operating Temperature -40℃～+55℃
IP Grade IP67





NVD 1000 Details:

Precise Data Collection Infrared And Visible Light Sensor Telescope With Night Vision 0
