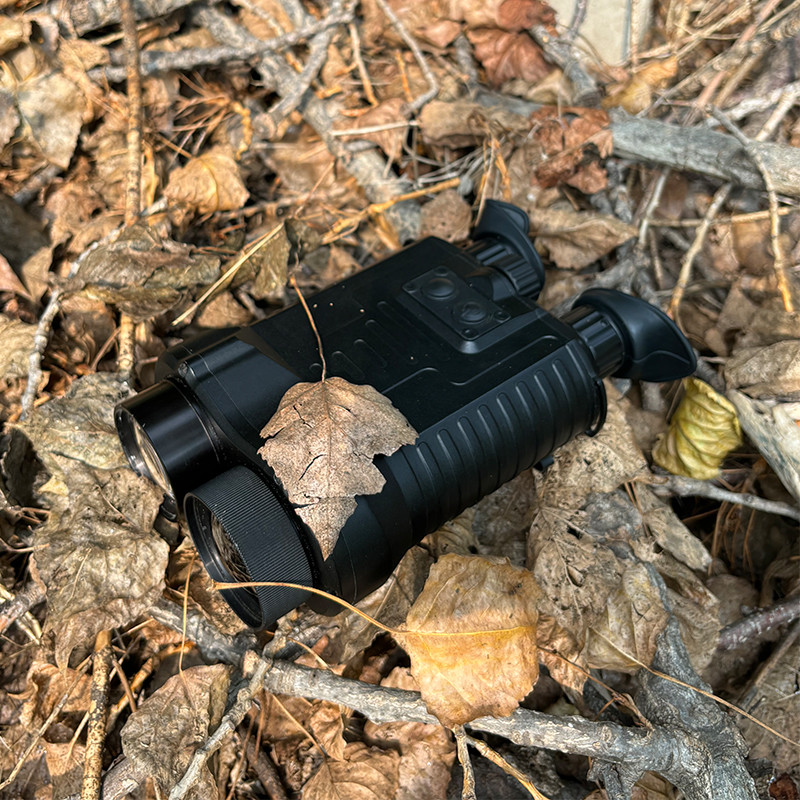

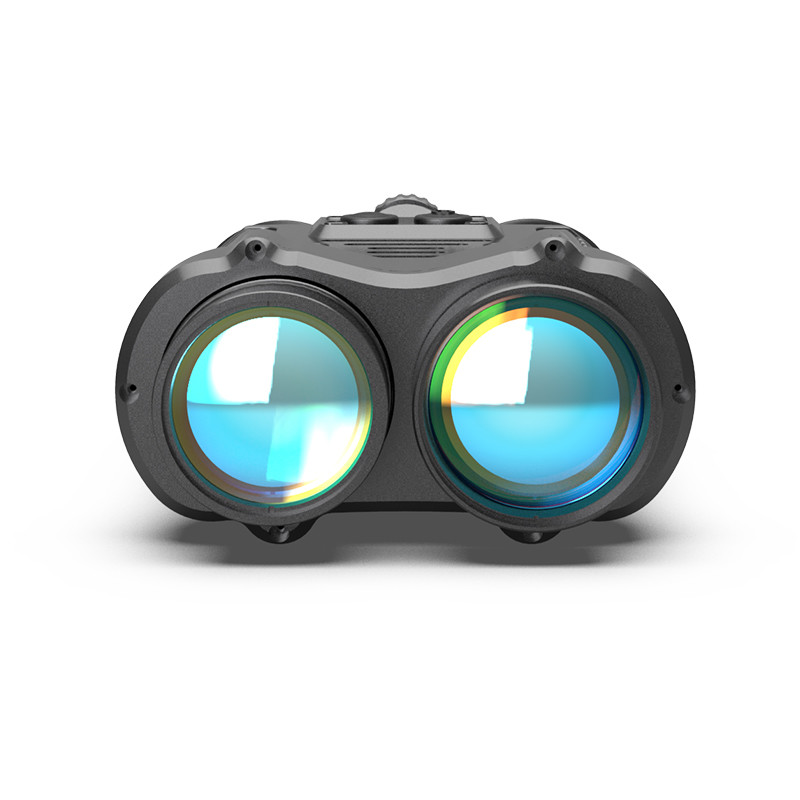

High Definition Multifunctional Handheld Infrared Night Vision With Video Recording
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD1000 |
| Minimum Order Quantity | 1 |
| Price | $6,173 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Digital Zoom Function | 1×，2× | Type | Handheld |
|---|---|---|---|
| Product Name | Multifunctional Handheld Infrared Night Vision For Patrol Inspection And Key Area Monitorin | Display Modes | Low Light, Thermal Imaging, Fusion Black And White, And Fusion Color |
| Scene Palettes | Jungle, Snow, Ocean, City, And Desert | Battery Life | ≥6h（Normal Temperature） |
| Feature | Night Vision | FOV | ≥16°×12° |
| Recognition Distance (Low-light Mode) | ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) | Recognition Distance (Thermal Imaging Mode) | ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） |
| Recognition Distance (Fusion Mode) | ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） | IR Detector Resolution | 640×512@17um |
| IR Detector Focus Lens | 35mm | Sensor（CCD）- Resolution | 800×600@18um |
| Sensor (CCD)- Focus Lens | 50mm | Weight | ≤1.2kg |
| Interface | PAL、USB | Battery | 18650 |
| Storage | 32G（Nominal） | Operating Temperature | -40℃～+55℃ |
| IP Grade | IP67 | Observation Mode 1 | Low Light, Thermal Imaging, Fusion Black And White And Fusion Color |
| Observation Mode 2 | Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes | Observation Mode 3 | Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode |
| Video Recording | Supported | Photo Taking | Supported |
| Local Browsing And Export | Supported | Image Contrast | Adjustable 1-10 |
| Display Brightness | Adjustable 1-10 | Anti-light Leakage Function | Supported |
| Highlight | Multifunctional Infrared Night Vision,Handheld Infrared Night Vision,32G digital thermal goggles |
||
Product Description
|
APPLICATIONS
The NVD1000 fusion telescope merges thermal imaging and visible light images into a single display through advanced software algorithms. This fused image allows users to distinctly identify heat sources while simultaneously observing the detailed background environment. The telescope provides clear image layers and highlights main targets, making it ideal for patrol inspections, sentry duties, and monitoring key areas. It excels in environments with alternating light and dark conditions and complex backgrounds, aiding users in tasks such as concealed surveillance, mobile detection, screening and tracking, rapid target acquisition, and covert video recording.
FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function
FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects
Technical Parameters:
NVD 1000 Details:
|
