Video Recording Supported Multi Spectrum Fusion Telescope With Digital Zoom Function
| Place of Origin | China |
|---|---|
| Brand Name | Particle |
| Model Number | NVD1000 |
| Minimum Order Quantity | 1 |
| Price | $6,173 |
| Payment Terms | T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feature | Night Vision | Name | Infrared-visible Image Fusion Equipment |
|---|---|---|---|
| Anti-light Leakage Function | Supported | Local Browsing And Export | Supported |
| Scene Palettes | Jungle, Snow, Ocean, City, And Desert | Photo Taking | Supported |
| FOV | ≥16°×12° | Resolution | High Definition |
| Recognition Distance (Low-light Mode) | ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) | Recognition Distance (Thermal Imaging Mode) | ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） |
| Recognition Distance (Fusion Mode) | ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） | IR Detector Resolution | 640×512@17um |
| IR Detector Focus Lens | 35mm | Sensor（CCD）- Resolution | 800×600@18um |
| Sensor (CCD)- Focus Lens | 50mm | Weight | ≤1.2kg |
| Interface | PAL、USB | Battery | 18650 |
| Storage | 32G（Nominal） | Battery Life | ≥6h（Normal Temperature） |
| Operating Temperature | -40℃～+55℃ | IP Grade | IP67 |
| Observation Mode 1 | Low Light, Thermal Imaging, Fusion Black And White And Fusion Color | Observation Mode 2 | Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes |
| Observation Mode 3 | Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode | Video Recording | Supported |
| Image Contrast | Adjustable 1-10 | Display Brightness | Adjustable 1-10 |
| Digital Zoom Function | 1×，2× | ||
| Highlight | Video Recording night vision monocular military,IP67 night vision monocular military,35mm mil spec night vision monocular |
||
Product Description
|
APPLICATIONS

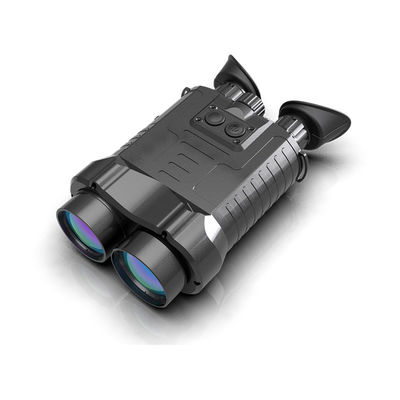

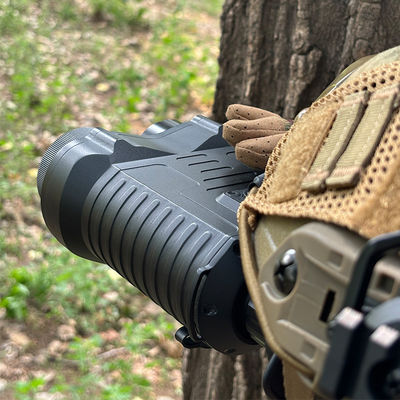

Integrating thermal and visible light imaging, the NVD1000 fusion telescope processes these inputs through sophisticated algorithms to deliver a combined image. This fusion enhances the user's ability to identify heat sources and see background details clearly, offering clear image layers and prominent targets. Perfect for patrols, sentry duties, and monitoring critical areas, it excels in varying light conditions and intricate backgrounds. Users benefit from its capabilities in covert operations, mobile detection, tracking, rapid targeting, and secret video documentation.
FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function
FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects
Technical Parameters:
NVD 1000 Details:
|
