Innovative Infrared Enhanced Thermal Imaging Rifle Scope

  • Innovative Infrared Enhanced Thermal Imaging Rifle Scope
Place of Origin China
Brand Name Particle
Model Number MH50W
Minimum Order Quantity 1
Price $2,807
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Rifle Scope Dimension 340×85×75MM
Batteries Built-in 22Wh Lithium Battery, Can Be Connected To An External 18500 Battery Data Interface Type C
Maximum Bearable Recoil Force 6000J Or 1000g Weight 0.89kg
Infrared Detector 640*512@12μm NETD 50mk
Display Type OLED，0.49inch Display Resolution 1440*1080 Pixel
Basic Magnification 3 × Digital Magnification 1～4 ×
Field Of View（FOV） 8.6×1.9° Objective Lens 50mm，F1.0
Eye Relief 40mm Diopter Adjustment -5SD～ +5SD
Memory Capacity 64G Operating Time 12h
Operating Temperature -40℃ ~ +55 ℃ Humidity 10%~95%, Non-condensing
IP Grade IP67 Focus Mode Manual
Highlight

Infrared Rifle Scope

,

Thermal Imaging Rifle Scope

,

3x Rifle Scope
Leave a Message
Product Description

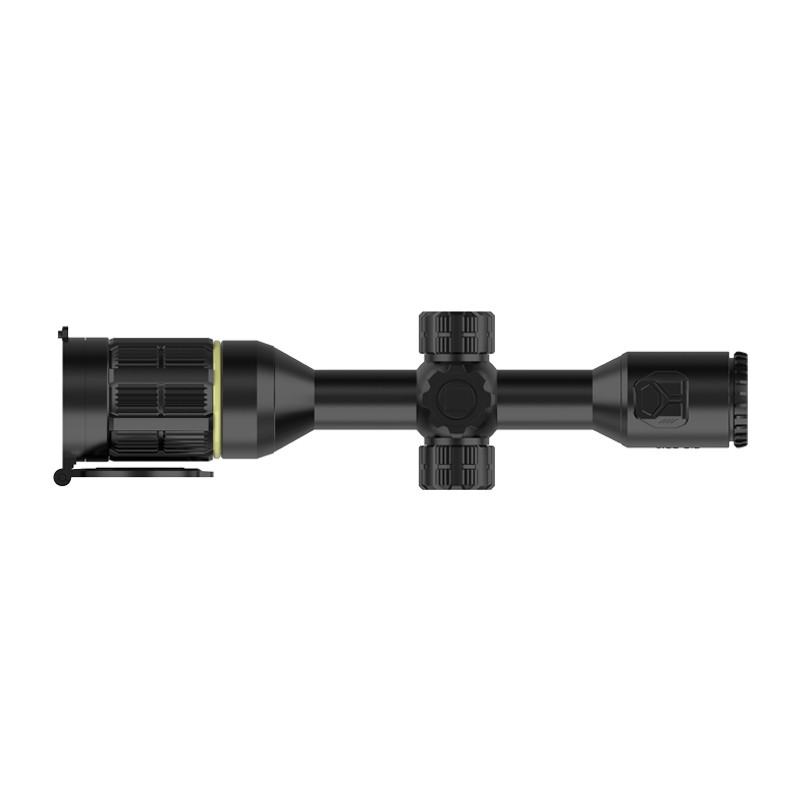

Innovative Infrared-Enhanced Thermal Imaging Rifle Scope



Applications



The JP MH50W is an elite multifunctional rifle scope developed with advanced infrared imaging technology. It features a high-performance infrared chip and a proprietary image algorithm, ensuring top-tier infrared image quality that reveals every detail. The high-definition OLED display offers excellent image clarity, picture detail, and thermal image layering, while preventing eye fatigue during extended viewing. For those requiring a thermal imaging riflescope with superior performance and long battery life, the JP MH50W is the definitive choice.



Functionality



  • Two display modes: black hot mode and white hot mode；
  • Take photos and videos；
  • Supports up to 4× digital zoom；
  • Wonderful shot (Recoil Automatic Video,RAV)；
  • Picture-in-picture(PIP) display；
  • Quick calibration: one-shot calibration, zoom calibration, freeze calibration；
  • Visual ranging；
  • Shooting parameter configuration；
  • Intelligent ballistic calculation；
  • Personalized reticles, 7 types, 7 colors；
  • Intelligent reticle；
  • Programmable mil；
  • Built-in 3D gyroscope；
  • Built-in 3D accelerometer；
  • Built-in magnetometer；
  • Built-in electronic compass；
  • Support MIC；
  • Smartphone APP；



Features



  • Classic styling design restores the experience of using traditional optical sights；
  • 640 high-resolution thermal imaging core, the image quality is clear and layered;
  • Ultra-long recognition distance, the first time to lock the prey;
  • Intelligent and fast gun calibration method, only one shot is needed to achieve accurate gun calibration;
  • Supports smartphone APP, doubling the fun of connection and use；
  • Super long battery life, continuous working for 12 hours；



Technical Parameters



Dimension,mm

340×85×75

Weight,kg

0.89

NETD,mk

50

Display Type,inch

OLED,0.49

Display Resolution,Pixel

1440*1080

Basic Magnification,×

3

Digital Magnification,×

1～4

Field of View(FOV),°

8.6×1.9

Objective Lens,mm

50,F1.0

Eye Relief,mm

40

Diopter Adjustment,SD

-5～+5

Memory Capacity,G

64

Operating Time,h

12

Operating Temperature,℃

-40 ~ +55

Humidity

10%~95%, non-condensing

IP Grade

IP67

Maximum Bearable Recoil Force,J/g

6000J or 1000g

Focus Mode

Manual

Data Interface

Type C

Batteries

Built-in 22Wh lithium battery, can be connected to an external 18500 battery



MH50W Details
