Cutting Edge Infrared Thermal Scope For Rifles Water Proof Outdoor hunting

  • Cutting Edge Infrared Thermal Scope For Rifles Water Proof Outdoor hunting
Place of Origin China
Brand Name Particle
Model Number MH50W
Minimum Order Quantity 1
Price $2,807
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Rifle Scope Dimension 340×85×75MM
Fit For Outdoor Hunting Feature Water Proof
Two Display Modes Black Hot Mode And White Hot Mode； Support Take Photos And Videos
Built-in 3D Gyroscope Focus Mode Manual
Weight 0.89kg Infrared Detector 640*512@12μm
NETD 50mk Display Type OLED，0.49inch
Display Resolution 1440*1080 Pixel Basic Magnification 3 ×
Digital Magnification 1～4 × Field Of View（FOV） 8.6×1.9°
Objective Lens 50mm，F1.0 Eye Relief 40mm
Diopter Adjustment -5SD～ +5SD Memory Capacity 64G
Operating Time 12h Operating Temperature -40℃ ~ +55 ℃
Humidity 10%~95%, Non-condensing IP Grade IP67
Maximum Bearable Recoil Force 6000J Or 1000g Data Interface Type C
Batteries Built-in 22Wh Lithium Battery, Can Be Connected To An External 18500 Battery
Highlight

Cutting Edge Infrared Thermal Scope

,

Rifles Infrared Thermal Scope

,

Outdoor hunting Thermal Scope
Leave a Message
Product Description

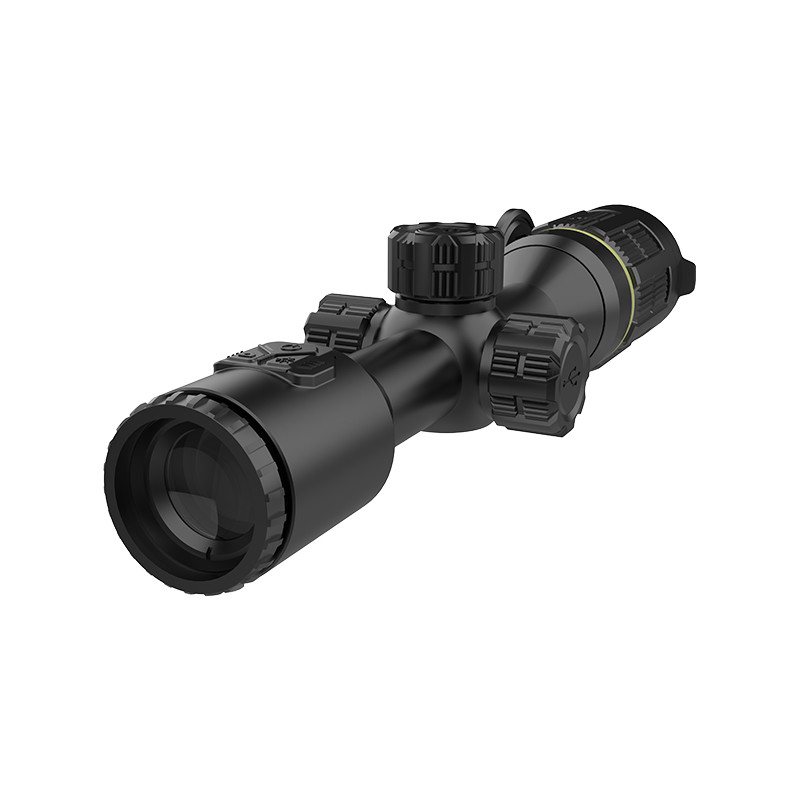

Cutting-Edge Infrared Thermal Scope for Rifles



Applications



The JP MH50W represents the pinnacle of multifunctional rifle scopes, utilizing cutting-edge infrared imaging technology. It is equipped with a high-performance infrared chip and advanced image algorithm software, providing unparalleled infrared image quality that leaves no hiding place for prey. The high-definition OLED display ensures remarkable image clarity, detail, and thermal layering, allowing for extended viewing without eye fatigue. For hunters and shooters seeking top-notch performance and extended battery life, the JP MH50W is the ultimate choice.



Functionality



  • Two display modes: black hot mode and white hot mode；
  • Take photos and videos；
  • Supports up to 4× digital zoom；
  • Wonderful shot (Recoil Automatic Video,RAV)；
  • Picture-in-picture(PIP) display；
  • Quick calibration: one-shot calibration, zoom calibration, freeze calibration；
  • Visual ranging；
  • Shooting parameter configuration；
  • Intelligent ballistic calculation；
  • Personalized reticles, 7 types, 7 colors；
  • Intelligent reticle；
  • Programmable mil；
  • Built-in 3D gyroscope；
  • Built-in 3D accelerometer；
  • Built-in magnetometer；
  • Built-in electronic compass；
  • Support MIC；
  • Smartphone APP；



Features



  • Classic styling design restores the experience of using traditional optical sights；
  • 640 high-resolution thermal imaging core, the image quality is clear and layered;
  • Ultra-long recognition distance, the first time to lock the prey;
  • Intelligent and fast gun calibration method, only one shot is needed to achieve accurate gun calibration;
  • Supports smartphone APP, doubling the fun of connection and use；
  • Super long battery life, continuous working for 12 hours；



Technical Parameters



Dimension,mm

340×85×75

Weight,kg

0.89

NETD,mk

50

Display Type,inch

OLED,0.49

Display Resolution,Pixel

1440*1080

Basic Magnification,×

3

Digital Magnification,×

1～4

Field of View(FOV),°

8.6×1.9

Objective Lens,mm

50,F1.0

Eye Relief,mm

40

Diopter Adjustment,SD

-5～+5

Memory Capacity,G

64

Operating Time,h

12

Operating Temperature,℃

-40 ~ +55

Humidity

10%~95%, non-condensing

IP Grade

IP67

Maximum Bearable Recoil Force,J/g

6000J or 1000g

Focus Mode

Manual

Data Interface

Type C

Batteries

Built-in 22Wh lithium battery, can be connected to an external 18500 battery



MH50W Details


Cutting Edge Infrared Thermal Scope For Rifles Water Proof Outdoor hunting 0
