Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting

Place of Origin China
Brand Name Particle
Model Number MH50W
Minimum Order Quantity 1
Price $2,807
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Rifle Scope Dimension 340×85×75MM
Application Hunting Fit For Outdoor Hunting
Color Black Feature Water Proof
Weight 0.89kg Infrared Detector 640*512@12μm
NETD 50mk Display Type OLED,0.49inch
Display Resolution 1440*1080 Pixel Basic Magnification 3 ×
Digital Magnification 1~4 × Field Of View(FOV) 8.6×1.9°
Objective Lens 50mm,F1.0 Eye Relief 40mm
Diopter Adjustment -5SD~ +5SD Memory Capacity 64G
Operating Time 12h Operating Temperature -40℃ ~ +55 ℃
Humidity 10%~95%, Non-condensing IP Grade IP67
Maximum Bearable Recoil Force 6000J Or 1000g Focus Mode Manual
Data Interface Type C Batteries Built-in 22Wh Lithium Battery, Can Be Connected To An External 18500 Battery
Highlight

Water Proof Rifle Scope

,

Thermal Imaging Rifle Scope

,

Infrared Thermal Imaging Scope

Leave a Message
Product Description

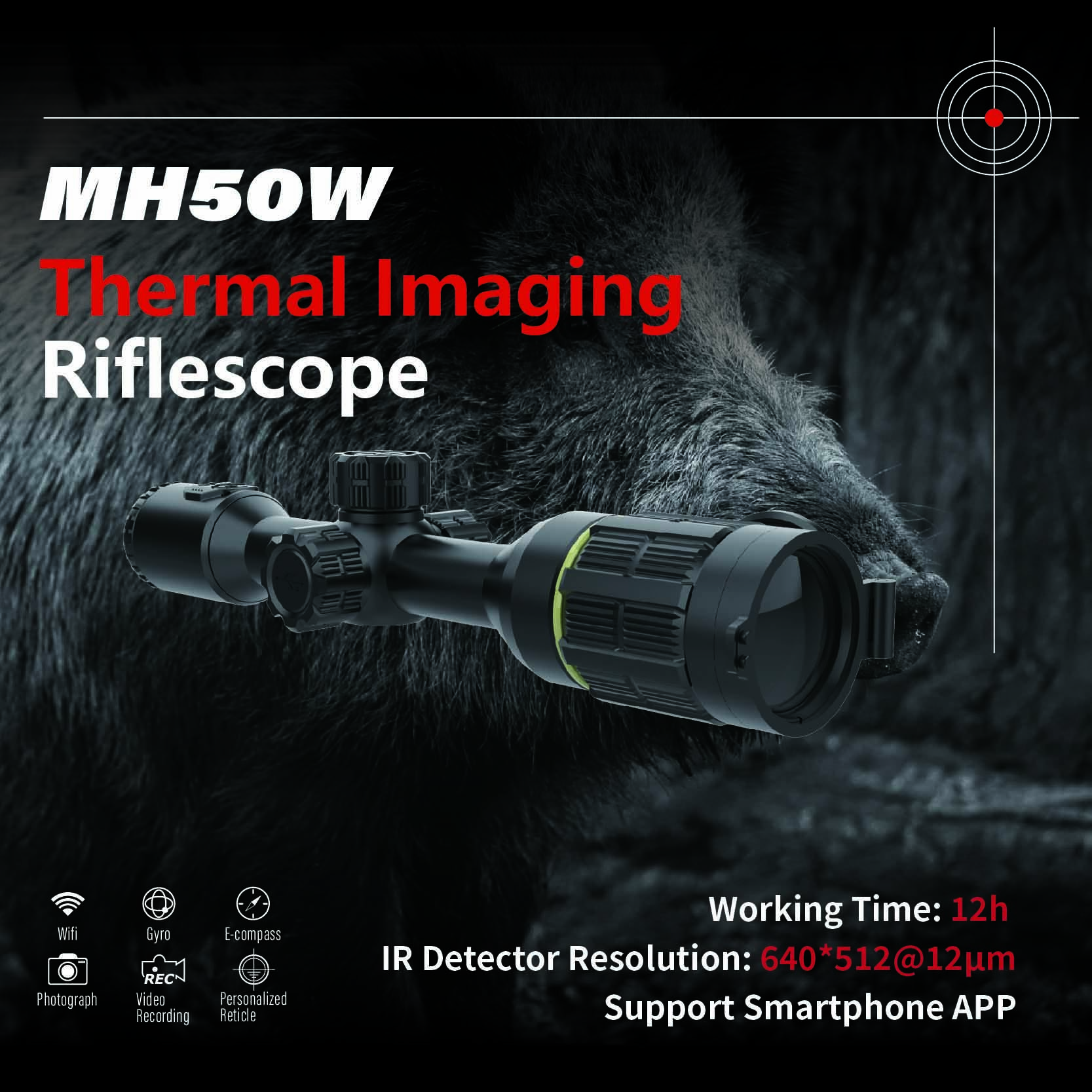

Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting



Applications



Designed with advanced infrared imaging technology, the JP MH50W is a top-tier multifunctional rifle scope. Its high-performance infrared chip, combined with a unique image algorithm, produces exceptional infrared images, revealing even the most elusive prey. The scope also boasts a high-definition OLED display, offering outstanding image clarity, detailed visuals, and enhanced thermal image layering, all while preventing eye strain during long periods of use. If you demand a high-performance thermal imaging riflescope with long-lasting battery life, the JP MH50W is the perfect solution.



Functionality



  • Two display modes: black hot mode and white hot mode;
  • Take photos and videos;
  • Supports up to 4× digital zoom;
  • Wonderful shot (Recoil Automatic Video,RAV);
  • Picture-in-picture(PIP) display;
  • Quick calibration: one-shot calibration, zoom calibration, freeze calibration;
  • Visual ranging;
  • Shooting parameter configuration;
  • Intelligent ballistic calculation;
  • Personalized reticles, 7 types, 7 colors;
  • Intelligent reticle;
  • Programmable mil;
  • Built-in 3D gyroscope;
  • Built-in 3D accelerometer;
  • Built-in magnetometer;
  • Built-in electronic compass;
  • Support MIC;
  • Smartphone APP;

Features



  • Classic styling design restores the experience of using traditional optical sights;
  • 640 high-resolution thermal imaging core, the image quality is clear and layered;
  • Ultra-long recognition distance, the first time to lock the prey;
  • Intelligent and fast gun calibration method, only one shot is needed to achieve accurate gun calibration;
  • Supports smartphone APP, doubling the fun of connection and use;
  • Super long battery life, continuous working for 12 hours;



Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting 0



Applications



Infrared and Visible Light Fusion Scope for Clearer Imaging 8



Image Gallery



Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting 2   Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting 3   Infrared Thermal Imaging Rifle Scope - Enhanced Night Vision/Precision Targeting 4


Technical Parameters



Dimension,mm

340×85×75

Weight,kg

0.89

NETD,mk

50

Display Type,inch

OLED,0.49

Display Resolution,Pixel

1440*1080

Basic Magnification,×

3

Digital Magnification,×

1~4

Field of View(FOV),°

8.6×1.9

Objective Lens,mm

50,F1.0

Eye Relief,mm

40

Diopter Adjustment,SD

-5~+5

Memory Capacity,G

64

Operating Time,h

12

Operating Temperature,℃

-40 ~ +55

Humidity

10%~95%, non-condensing

IP Grade

IP67

Maximum Bearable Recoil Force,J/g

6000J or 1000g

Focus Mode

Manual

Data Interface

Type C

Batteries

Built-in 22Wh lithium battery, can be connected to an external 18500 battery
