Infrared Visible Fusion Telescope With Thermal Imaging Images

  • Infrared Visible Fusion Telescope With Thermal Imaging Images
  • Infrared Visible Fusion Telescope With Thermal Imaging Images
  • Infrared Visible Fusion Telescope With Thermal Imaging Images
  • Infrared Visible Fusion Telescope With Thermal Imaging Images
Place of Origin China
Brand Name Particle
Model Number NVD1000
Minimum Order Quantity 1
Price $6,173
Payment Terms T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution High Definition Type Handheld
Feature Night Vision Power Source Rechargeable Battery
Color Black Weight ≤1.2kg
Technology Infrared Functions Video Recording
Recognition Distance (Low-light Mode) ≥300m (Visibility Not Less Than 8km, Illumination At 1×10-3～5×10-3lx, For Medium-sized Truck) Recognition Distance (Thermal Imaging Mode) ≥800m（Visibility Not Less Than 8km, The Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck）
Recognition Distance (Fusion Mode) ≥800m（Visibility Not Less Than 8km，the Background Temperature Difference Is Not More Than 3K，for Medium-sized Truck） IR Detector Resolution 640×512@17um
IR Detector Focus Lens 35mm Sensor（CCD）- Resolution 800×600@18um
Sensor (CCD)- Focus Lens 50mm FOV ≥16°×12°
Interface PAL、USB Battery 18650
Storage 32G（Nominal） Battery Life ≥6h（Normal Temperature）
Operating Temperature -40℃～+55℃ IP Grade IP67
Observation Mode 1 Low Light, Thermal Imaging, Fusion Black And White And Fusion Color Observation Mode 2 Marking Hot Source Targeting In Fusion Black And White, Fusion Color Modes
Observation Mode 3 Five Typical Scene Modes Of Jungle, Snow, Ocean, City And Desert In The Fusion Color Mode Video Recording Supported
Photo Taking Supported Local Browsing And Export Supported
Image Contrast Adjustable 1-10 Display Brightness Adjustable 1-10
Digital Zoom Function 1×，2× Anti-light Leakage Function Supported
Highlight

Infrared Visible electronic night vision

,

800m electronic night vision

,

300m army monocular
Leave a Message
Product Description

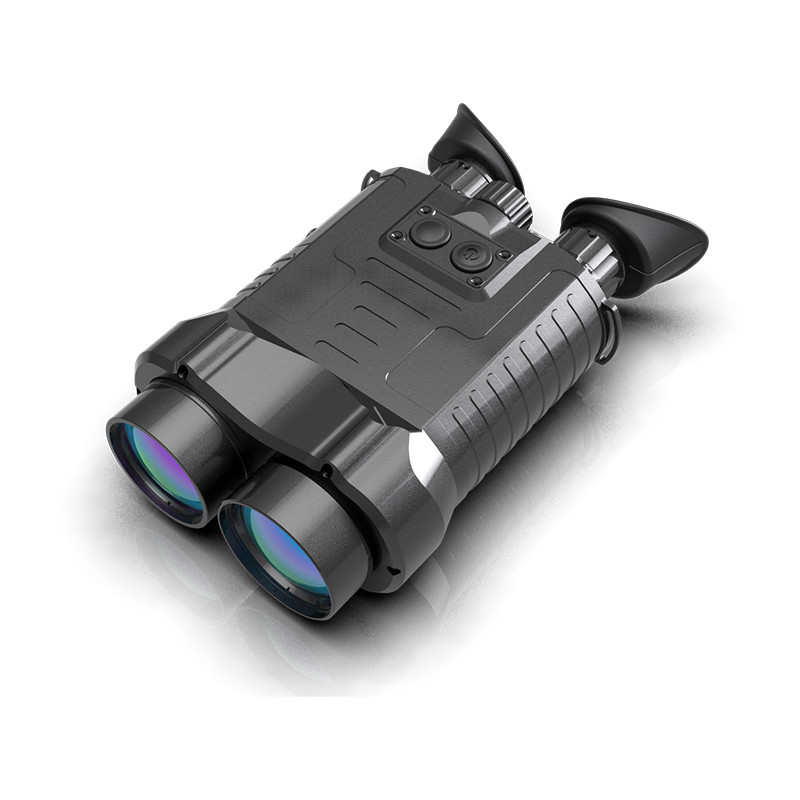

Infrared-Visible Fusion Telescope With Thermal Imaging Images


APPLICATIONS
The NVD1000 fusion telescope integrates thermal imaging images and visible light images into one image display after fusion processing by software algorithms. Through the fused image, the user can not only clearly find and identify the heat source target, but also see the details of the background environment clearly. It has the advantage of clear image layers and prominent main targets. This product is suitable for application scenarios such as patrol inspection, sentry duty, and key area monitoring, especially under the conditions of alternating light and dark in the surveillance area and intricate background conditions, it has obvious advantages. Assist users to complete tasks such as concealed squatting, mobile detection, screening and tracking, quick locking, and secret video recording.

FUNCTION
► Support four display modes:low light, thermal imaging,fusion black and white and fusion color With target marking function (Fused Black & White and Fused Color modes)
► Support five scene palettes of jungle, snow,ocean,city, and desert
► Support video recording, photo taking, localbrowsing and export
► Support one-key switching of display mode
► Adjustable image contrast
► Adjustable display brightness
► With digital zoom function
► With anti-light leakage function

FEATURES
► Support multiple video modes
► Various color palettes background, suitable for observation in different scenes
► The image has clear layers and clear texture
► Realized the complementary advantages of visible light imaging and thermal imaging
► Easier to recognize objects

Technical Parameters:

FOV ≥16°×12°
Weight ≤1.2kg
Interface PAL,USB
Battery 18650
Storage 32G(Nominal)
Battery Life ≥6h(Normal Temperature)
Operating Temperature -40℃～+55℃
IP Grade IP67





NVD 1000 Details:

Infrared Visible Fusion Telescope With Thermal Imaging Images 0
